Icon 24-25 Tacoma 1.25-3" Stage 6 Suspension System Tubular Overland Rear Coils - K53296TX
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 6 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock allowing the use of larger more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry built in additional caster and improved suspension component clearance. Replacing the OE ball joint with the all-new serviceable and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support bottoming resistance and superior off-road performance. These rear springs are designed to net .5" of rear lift over stock with approximately 600lbs of additional weight added to the rear for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
Increased wheel travel and improved ride quality over stock

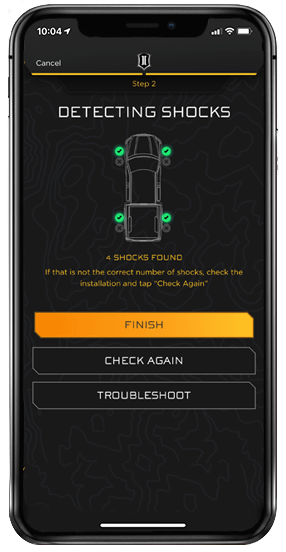

ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength durability and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app
the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
