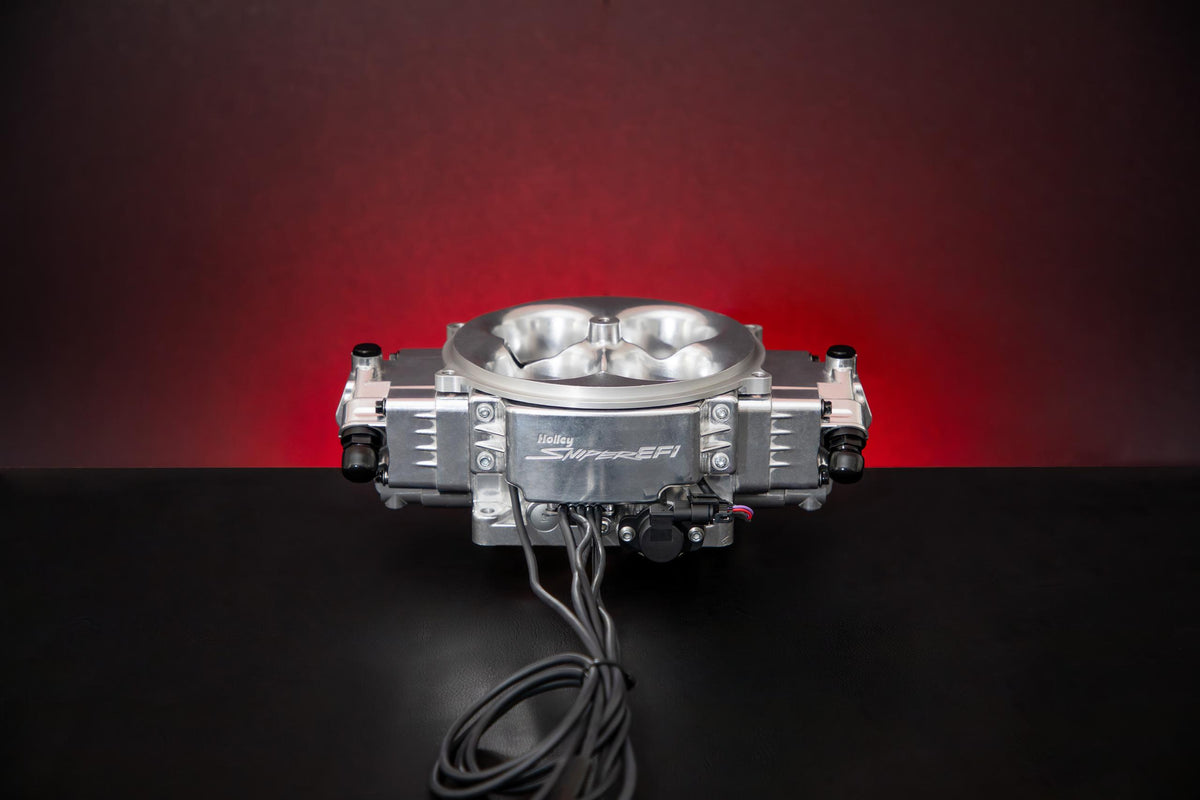

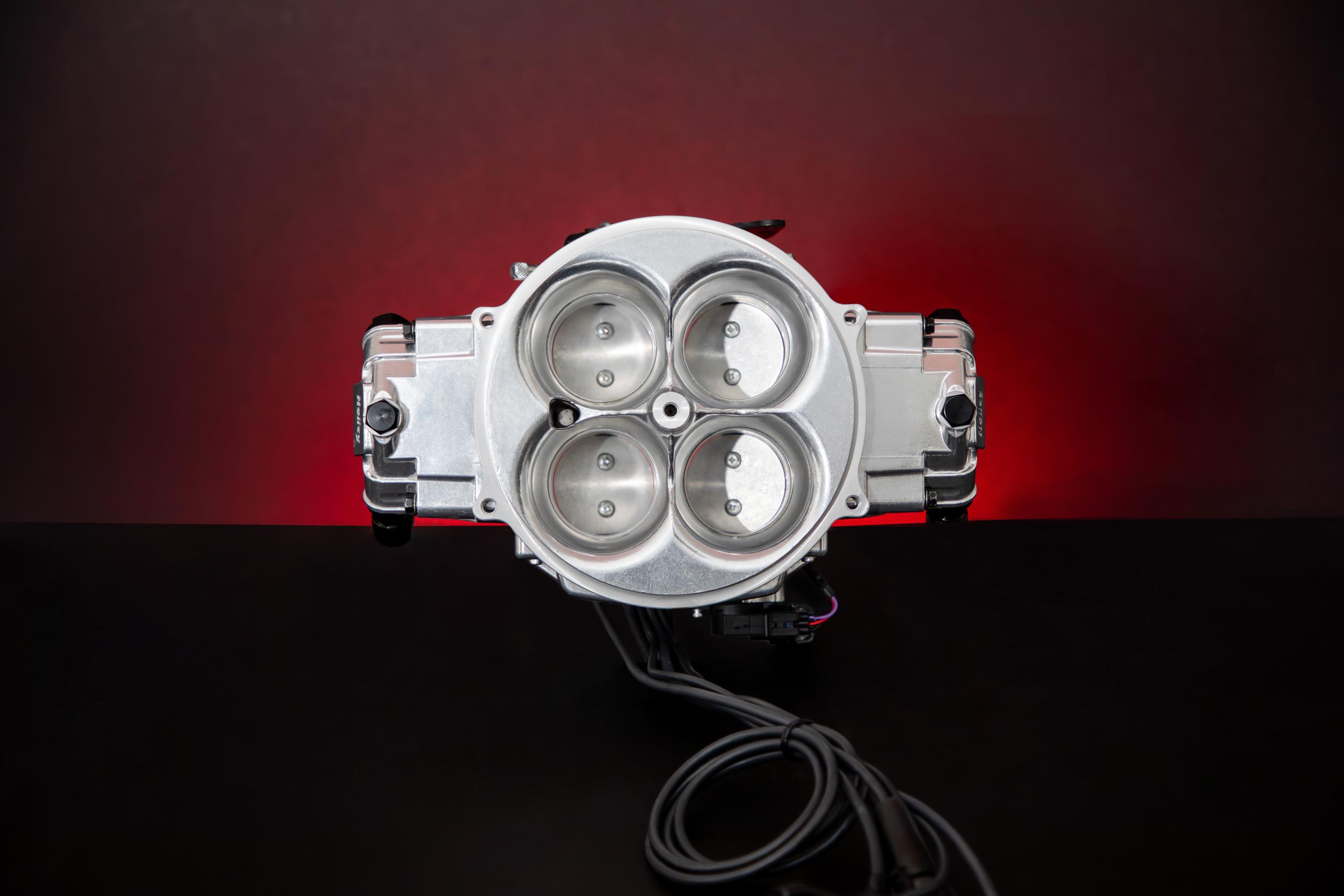

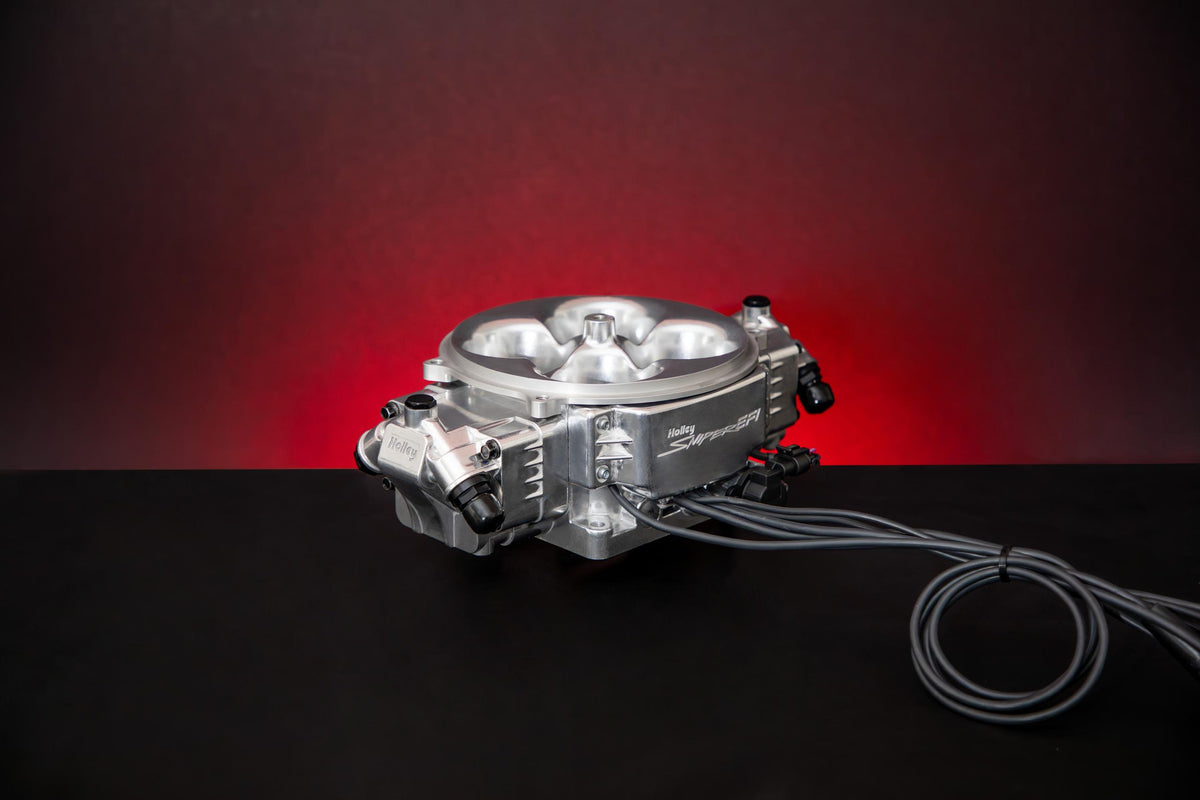

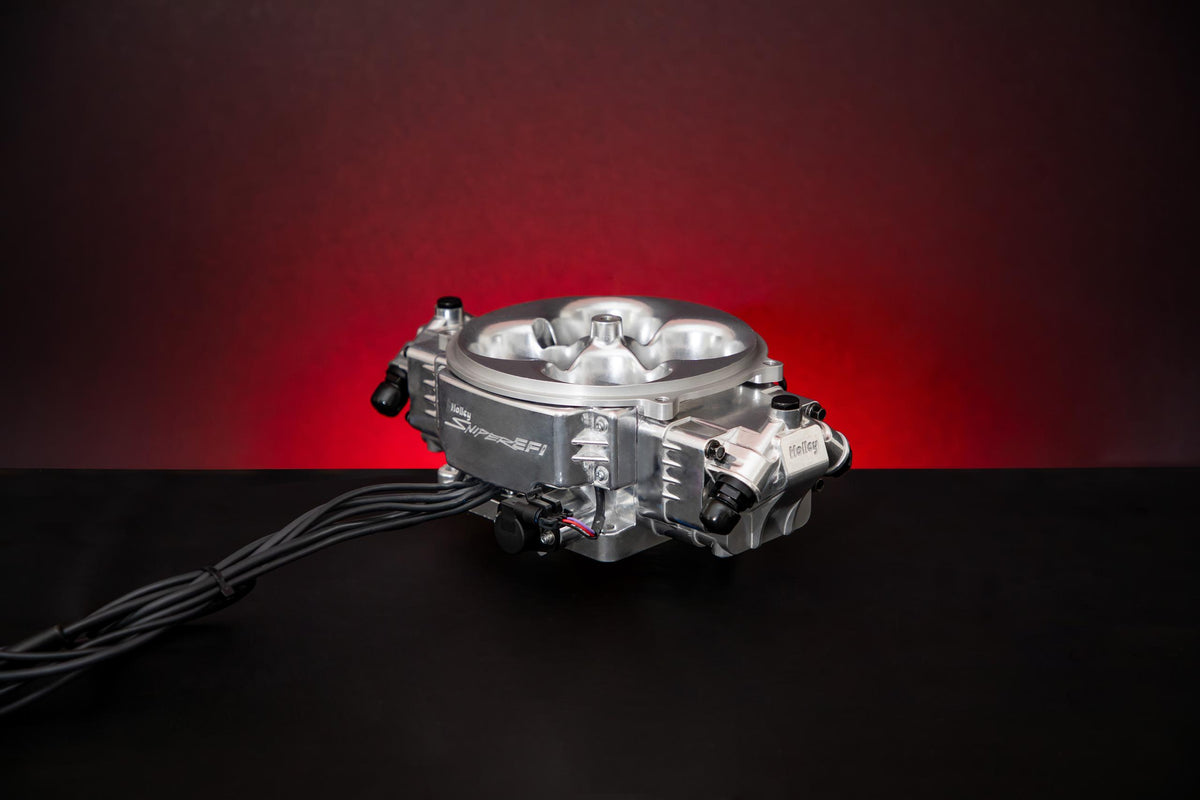

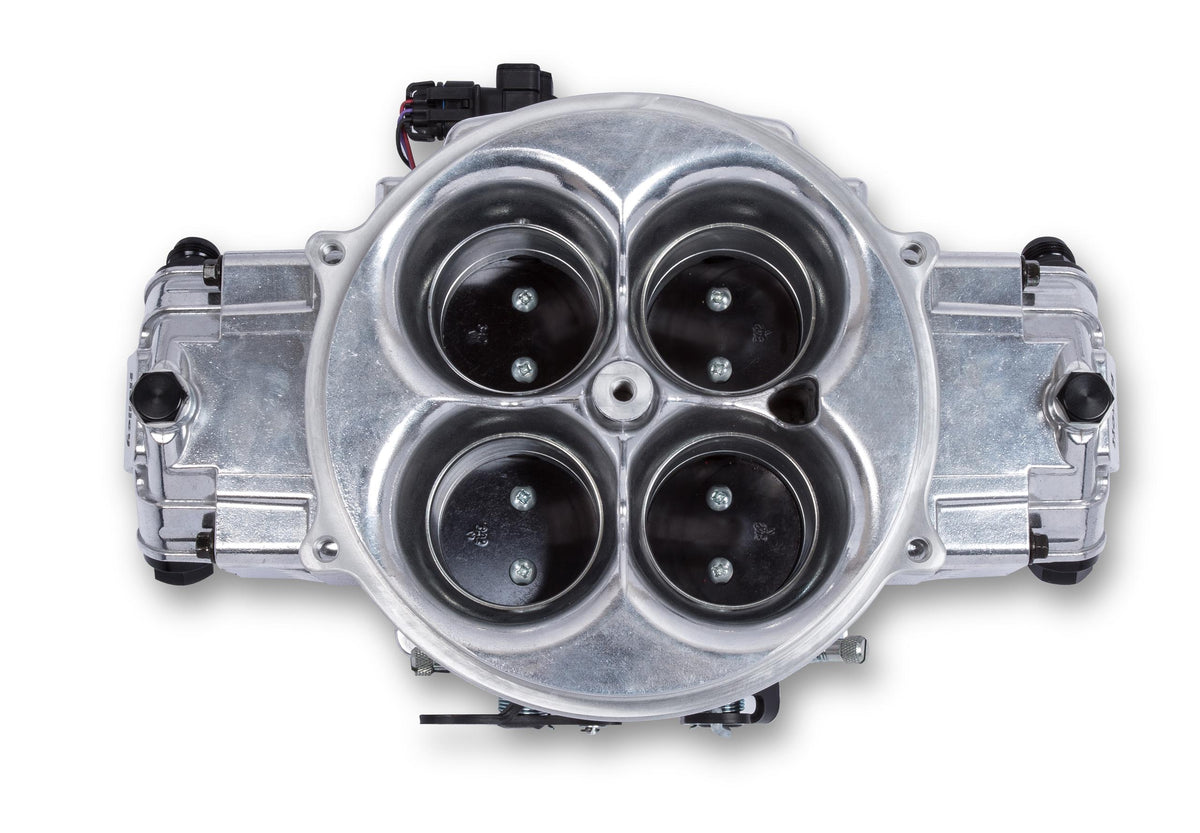

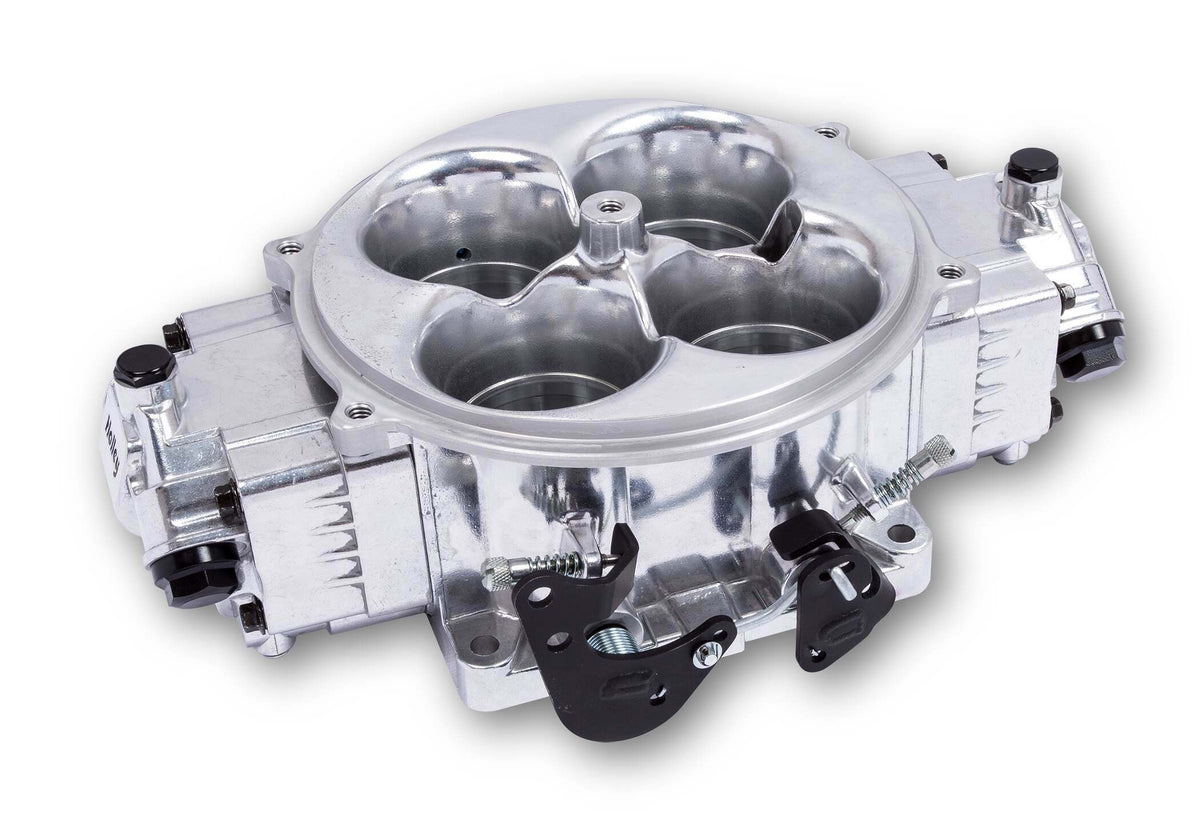

Holley Sniper Efi Stealth 4500 Throttle Body System - 550-841
The Sniper Stealth 4500 EFI system features 8, 100LB/HR Fuel Injectors capable of supporting 800 to 1500 HP naturally aspirated, or 800-1250 HP on forced induction applications. The Sniper Stealth 4500 features multiple Input/Output options for sensor inputs and switched outputs to control external relays. This system comes with a USB to CAN tuning cable and free downloadable Sniper EFI Software give you unlimited control of your engine. * Built-in Single Stage Wet or Dry progressive nitrous control/Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure or other critical information/Six Programmable Ground Outputs, Five programmable ground inputs. These can be used to trigger or control external devices such as nitrous solenoids, boost control solenoids. Or to provide the ECU with an Input to turn on function such as an ignition timing/One +5v Reference Output - +5V Power Supply for 0-5v Sensors, One Sensor Ground – Ground supply for 0-5v Sensors/Throttle body mounted ECU – no extra boxes to mount/Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition &

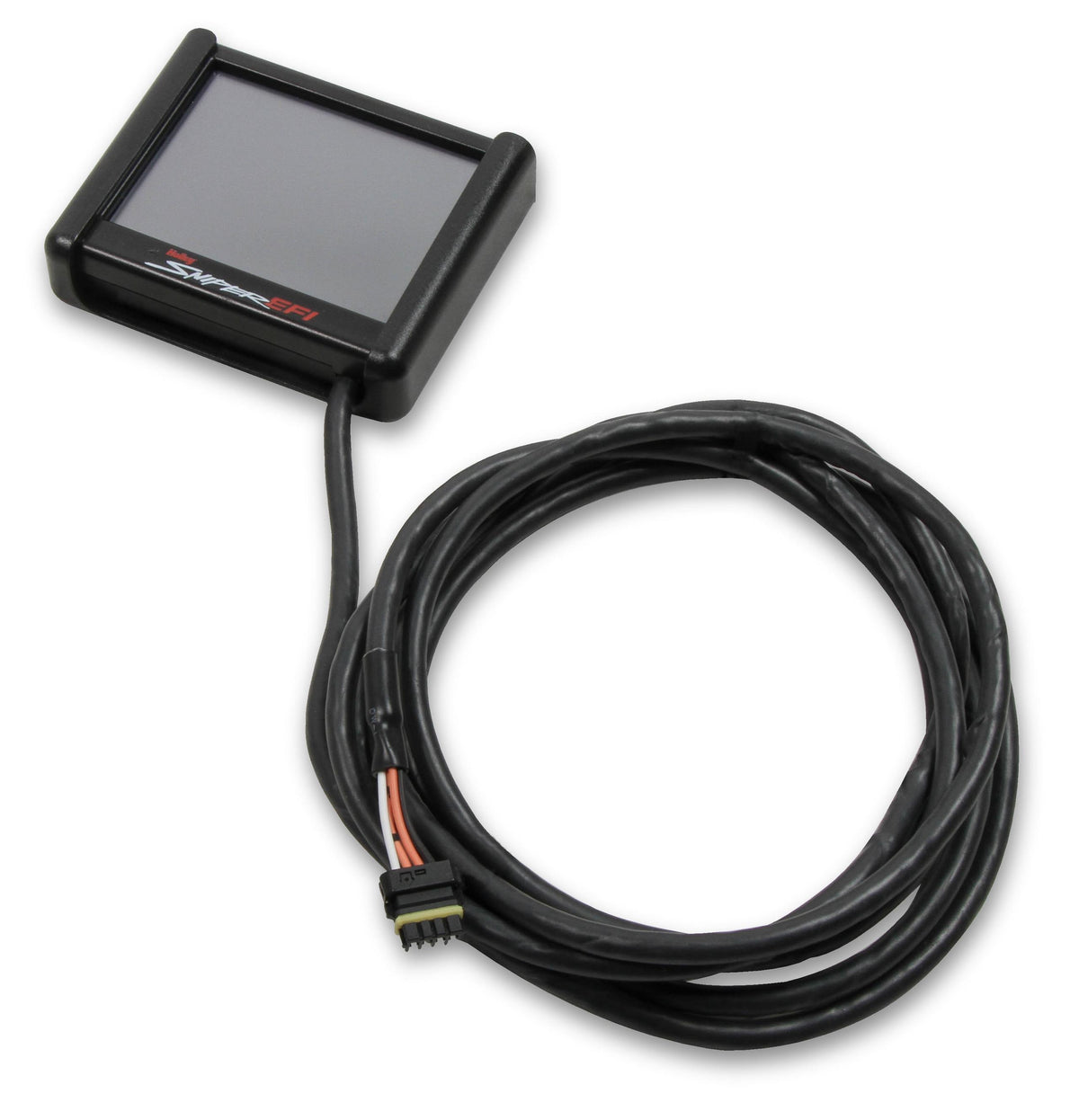

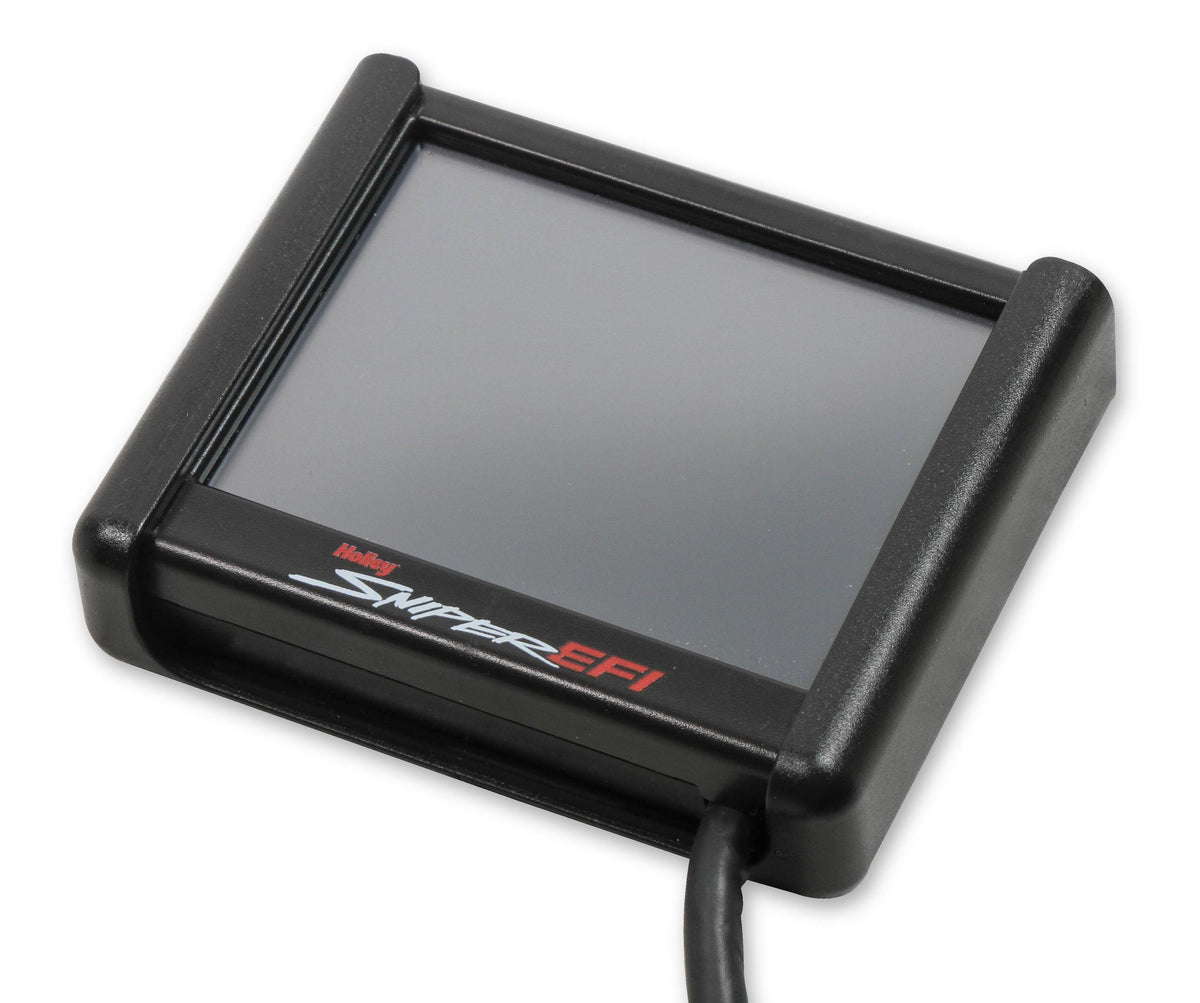

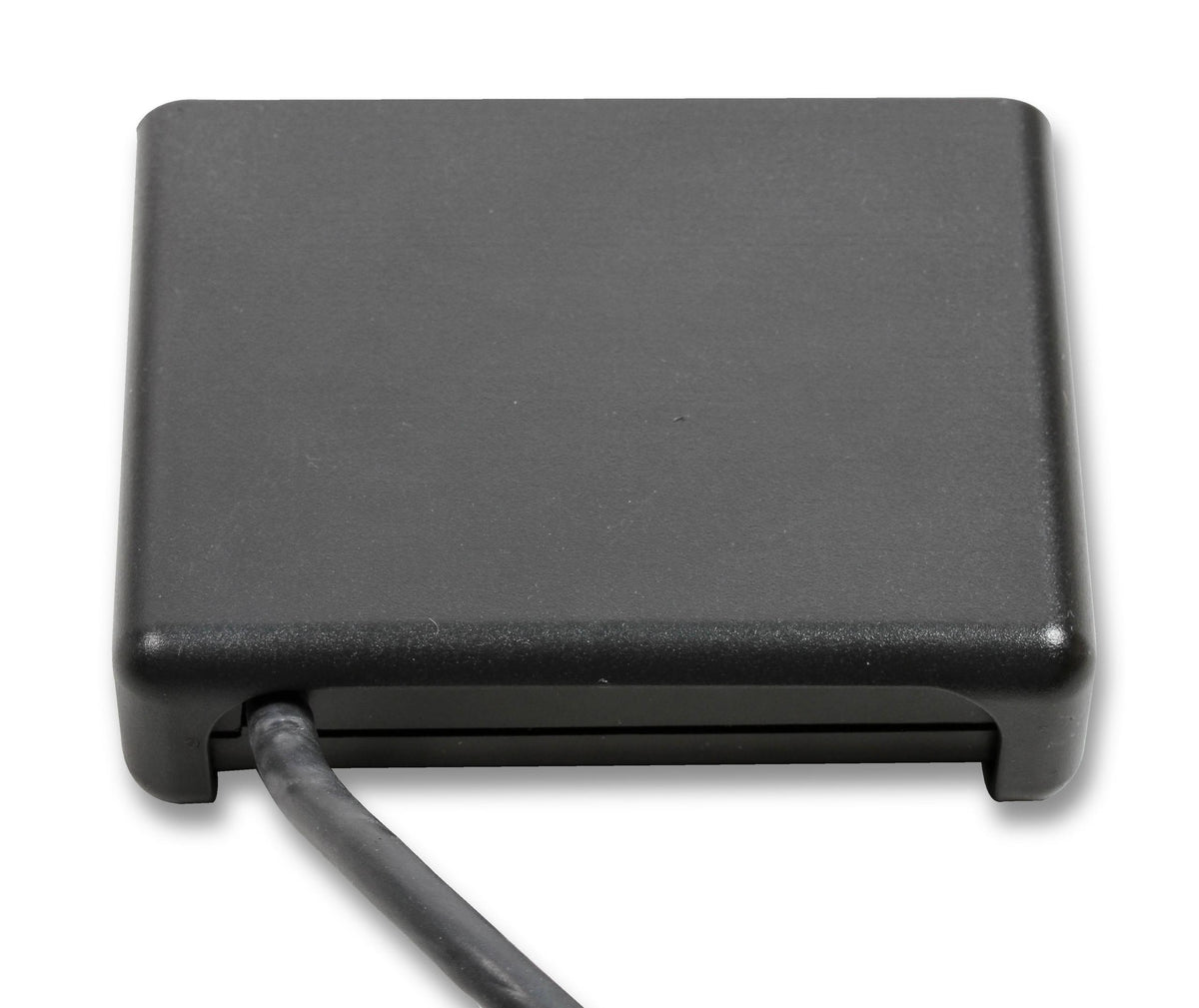

RPM)/Required external fuel pressure regulator, 12-848 is recommended/Customizable secondary fuel pump output (TPS, RPM or Boost enabled)/User friendly Boost Control with handheld adjustability/Free Software included comprehensive datalogging tool to help you maximize the performance of your engine/Real-time datalogging to the included 3.5" Touch Screen, allows you to save information to the SD card without needing a communication cable/Programmable Target Air Fuel Ratios per Boost level/Advanced boost control available via free Sniper EFI tuning software, including Boost vs RPM and Boost vs Time/OEM Style TPS/IAC, for years of dependable service/Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange/Patent Pending.
Legal for Non-Emissions Controlled Vehicles and Racing Use Only

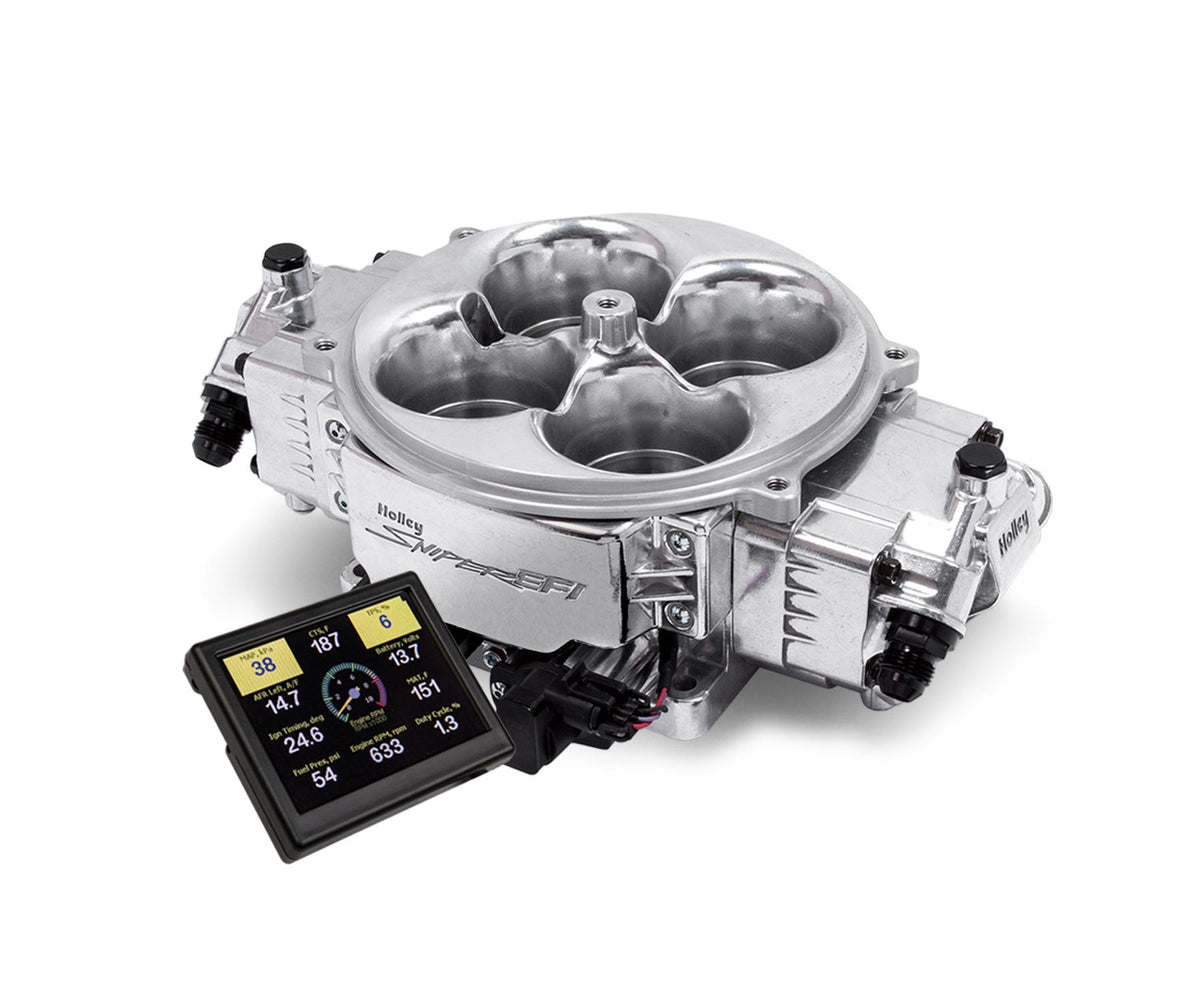

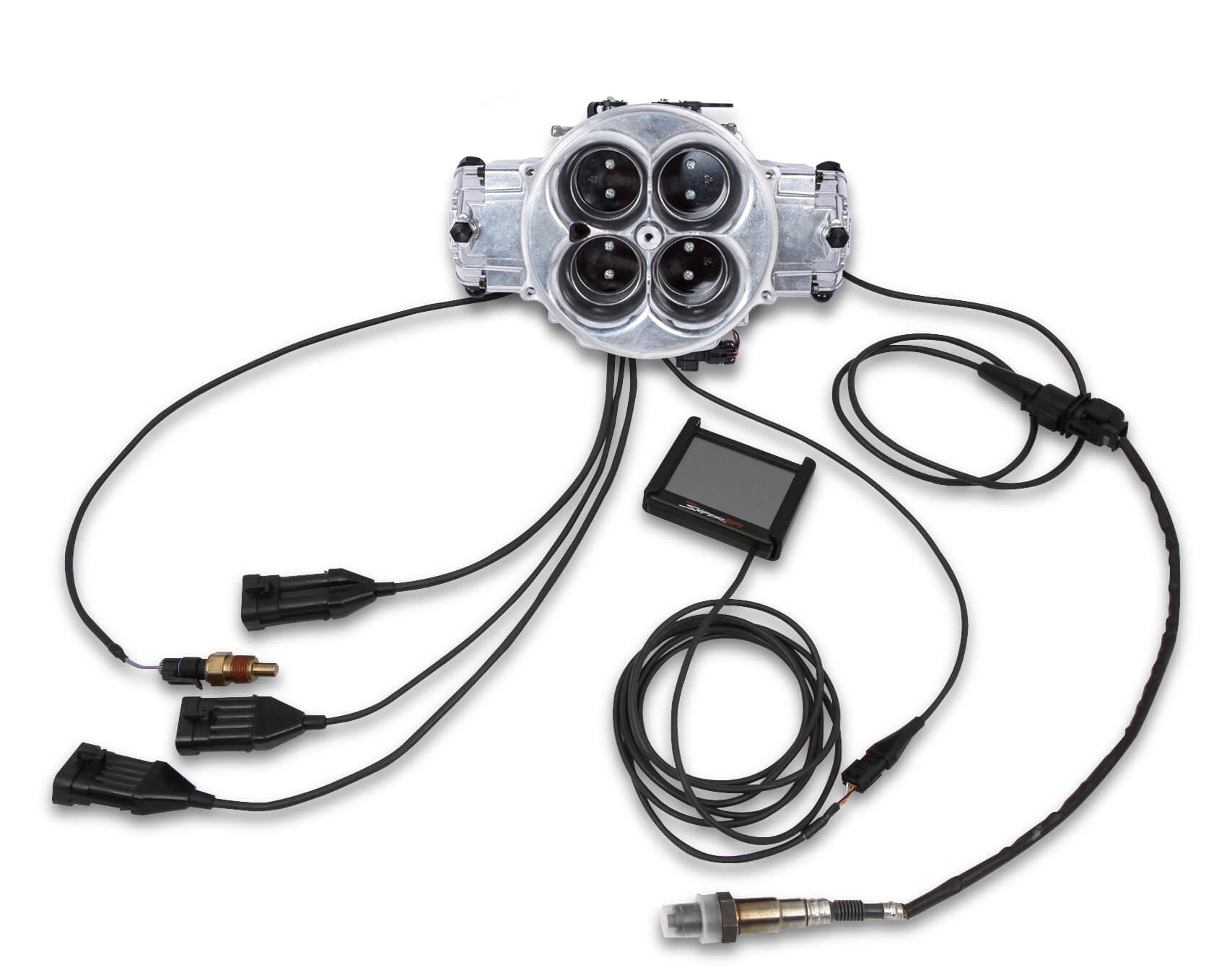

Sniper EFI Stealth 4500 Throttle Body System; 800-1500HP; 8 Injector; Incl. O2 and Coolant Temp Sensor/Gaskets/3.5 in. Touch Screen Controller/Harness/Hardware; Shiny Finish;
Holley is quickly becoming The New Standard In EFI! Holley?s HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley?s EFI throttle body powers every NASCAR Sprint Cup Series team.
PRODUCT NOTES:
CFM - 1440
Flange - 4500
Injector Size - 100 lb/hr @ 58.5 PSI
Throttle Bore - 2.125 in.
