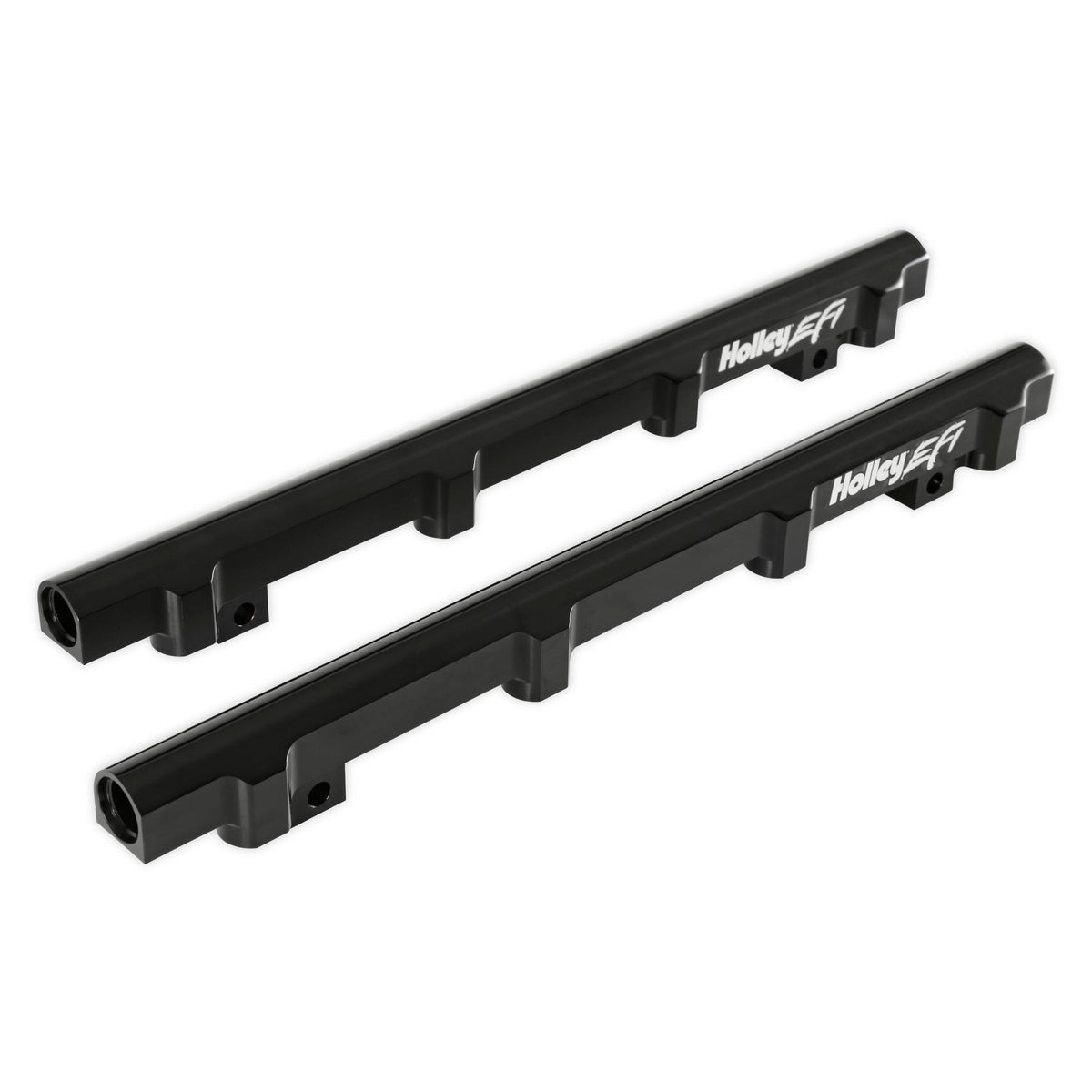

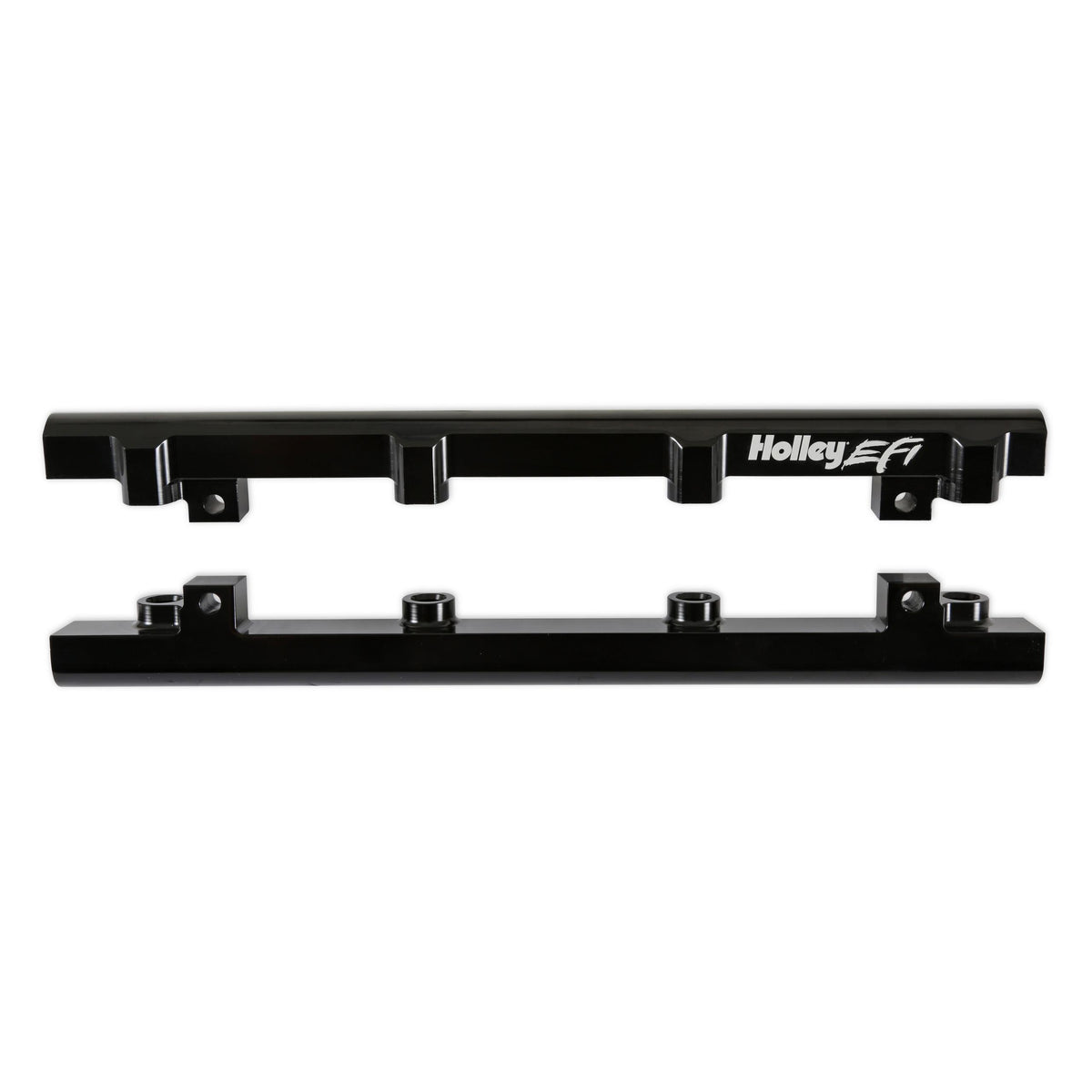

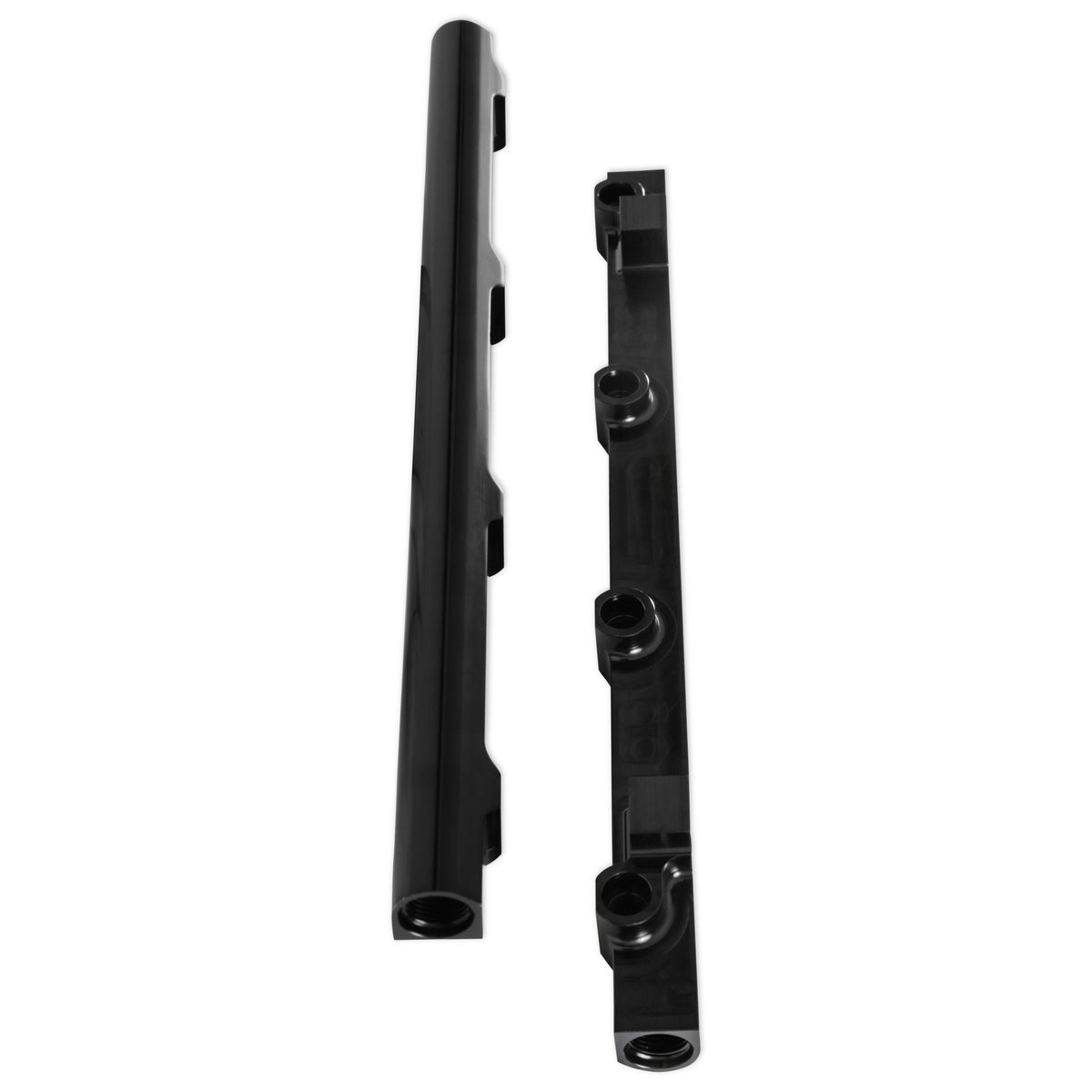

Holley Lo-Ram Fuel Rail Kit - 534-269

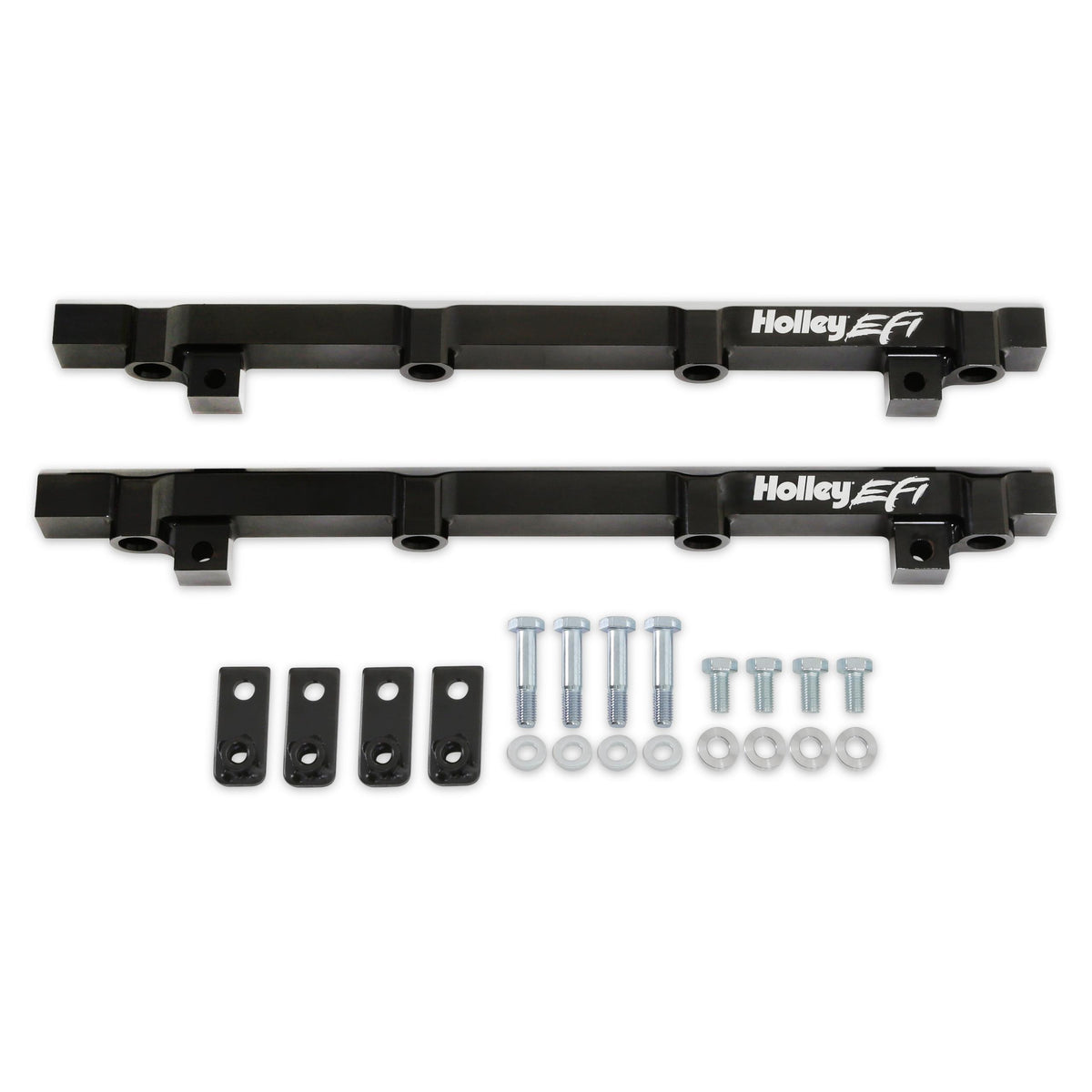

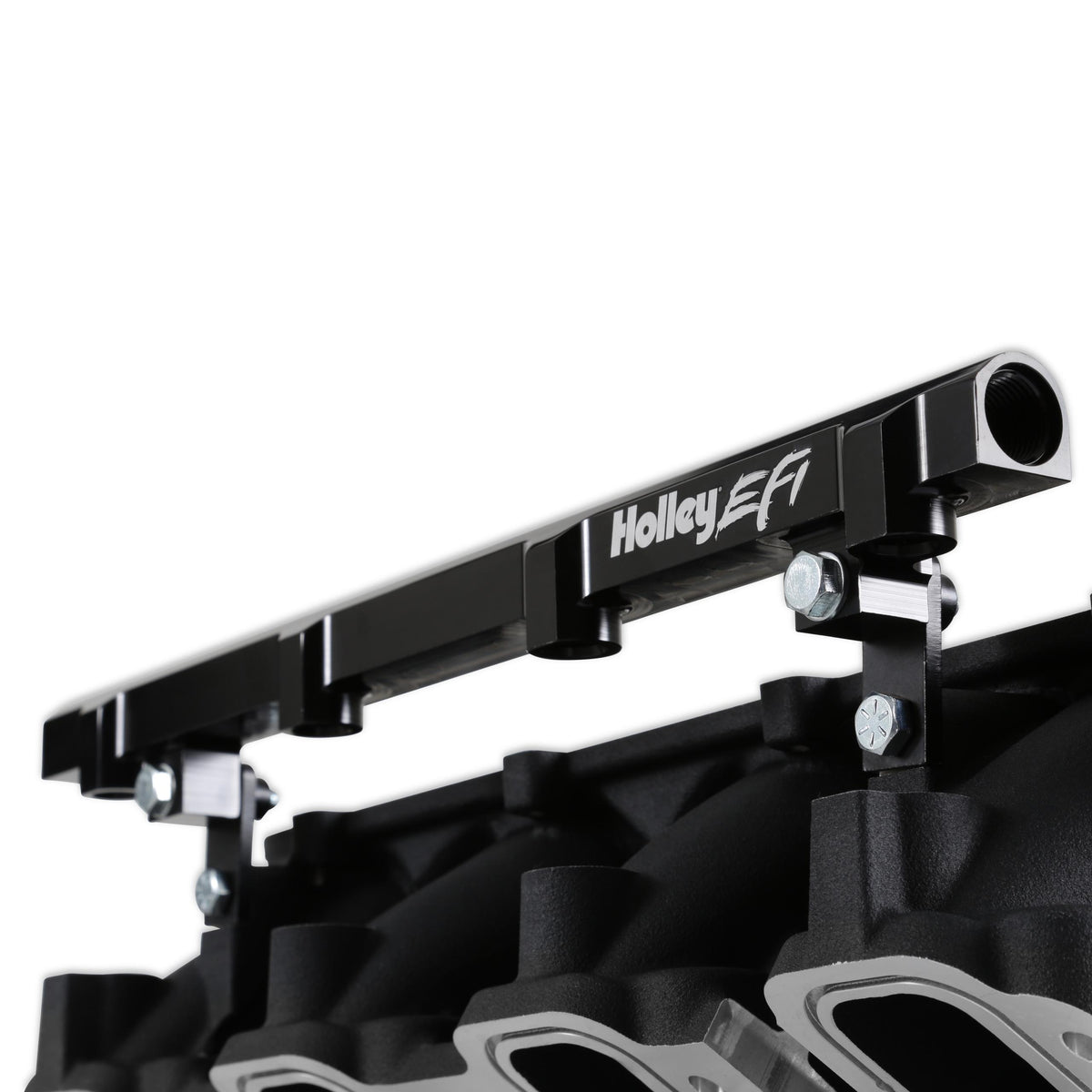

The Holley GM Gen V LT Lo-Ram intake manifold kits are designed for GM Gen V LT engines equipped with GM LT cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000-8,000 rpm depending on the application. The standard plenum top throttle body flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The top-feed plenum base intake manifold is designed with a reduced overall height to fit under a stock or mildly modified hood. The Lo-Ram provides a low profile modular intake manifold suitable for use with plenum mounted air-to-water intercoolers for boosted applications. Various Hi-Ram plenum top options are available to compliment the top-feed base intake manifold kits and fabrication flanges are offered to aid the fabrication of plenum tops for custom installations. Available for OE direct fuel injection only and with port fuel injection provisions. For the port fuel injection option, the high volume -8AN fuel rail kit includes hardware and brackets to accommodate long (usually standard length) fuel injectors or short (such as Pico, or LS7) fuel injectors.
Designed For GM Gen V Engines Equipped With GM LT Type Cylinder Heads; Engineered For Forced Induction Supercharged Or Turbocharged Engine Applications; Low-height Top-feed Plenum Profile To Fit Under A Stock Or Mildly Modified Hood; Modular Design And Top Entry Plenum Flange Allows The Use Of Popular Holley Hi-Ram Plenum Tops; Designed For The Accommodation Of Plenum Mounted Air-to-water Intercoolers; Kits With Port Injection Provide High Volume Fuel Rails With 3/4-16 O-ring Ports 8 AN; 3.18 in. Taller Than A Factory LT1 Manifold
Holley is quickly becoming The New Standard In EFI! Holley?s HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley?s EFI throttle body powers every NASCAR Sprint Cup Series team.
