This is the 5th Generation HID ballast: designed specifically to integrate with the complex computer systems found in modern vehicles.
PWM Integration: PWM stands for Pulse Width Modulation, it's when the vehicle flashes the input voltage to your bulbs so fast that you can't see the difference, but it modulates the activity of the halogen bulb. That's fine on an old style halogen/incandescent, but on HID systems it might make a flashing or strobing effect, or not work at all. The proprietary technology used in the GTR Lighting Slim Smart System HID ballast integrates with all PWM and CANBUS vehicles for optimal functionality.
CANBUS Integration: The key component of all HID ballasts is the controller used to manage all functions including ignition, protection, and constant use. Whatever type of controller is used is what dictates the quality level of the ballast. There are two kinds of controllers used inside HID ballasts:1. CPU Controller -or- 2. ASIC Controller
A standard CPU controller: is the most common construction type for aftermarket ballasts because it is simple, common and cheap to produce. It requires very little quality control or strict design to function, therefore it's easy for ballast makers to create low quality CPU controlled products. It isn't very hard and it is very cheap to build. They work OK when made with high quality components but this is not often the case. A CPU controller lacks the ability to monitor the HID lamp (as the lamp power-decay changes over time) so it can cause short lifespan from overpowering, or low light output from under-powering. Generally speaking the defect rate of a CPU Controller based ballast is high, and the lifespan is shorter.
Super Fast Start-Up Ballast: Are you sick of a slow ballast warm-up time? The GTR Lighting Slim PWM ballast has an instant startup like new OEM ballasts of only 0.1s with full brightness reached at 9s.

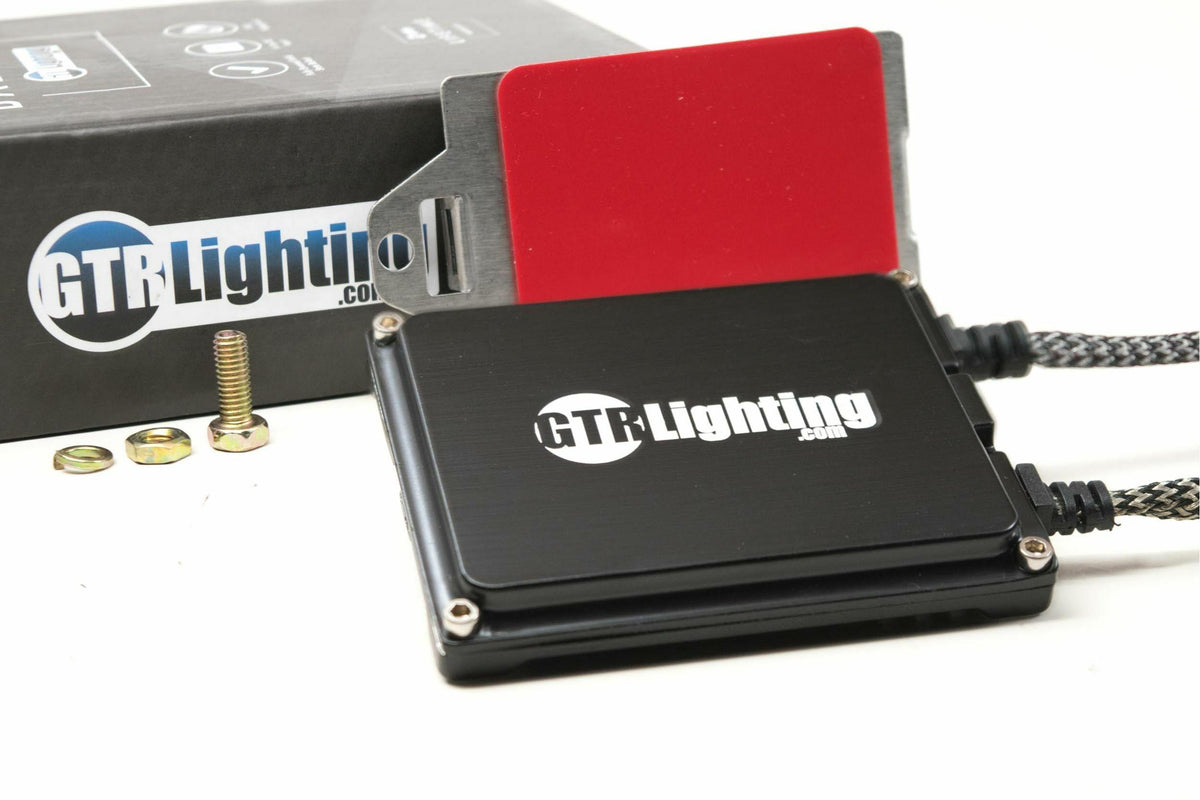

Slim Design: This ballast is barely larger than a stack of credit cards. 3.5" long, 2.75" wide and a half-inch tall! Mounting is easy with the supplied bracket with tape and ground strap.
NOT ALL HID KITS ARE CREATED EQUAL!
When you purchase: a GTR Lighting HID conversion kit for your vehicle you're getting the best of the best in terms of wire harness, connector, bulb and ballast quality. People all over the world trust GTR Lighting for being the pinnacle in quality for HID conversion kits. Our aftermarket ballasts are built with the highest quality components designed to last for 2,500 hours of use and provide up to 3,500 Lumen of light per HID bulb! Our bulbs provide a faster-than-average warmup time, and produce less operational noise when compared to other brands.
The GTR Lighting bulbs: are constructed to be the best of the best as well. We use the best aftermarket connectors, silicone wiring, and HID bulb capsules available to create a product that just works and works well. Our bulbs have the ability to produce 30% more light than budget-brand HID bulbs found elsewhere. It's not uncommon to hear stories about how after a customer switches to a GTR Lighting HID kit it's twice as bright as their old HID kit they got from somewhere else!
An ASIC controller: like what's used in the GTR Lighting Hylux ballast is what you'll find in an OEM ballast for intelligent bulb control. The ASIC-based ballast technology is sophisticated, complex and intuitive. The Hylux ASIC technology will react to the bulb response to power and increase or decrease output to keep the bulb running bright for the longest possible time. ASIC technology also allows the ballast to have a higher level of CANBUS integration for vehicles that use PWM control or adaptive lighting. It's not a 100% fix for every vehicle, but the technology is designed to be the most flexible and work with the most applications easier. HID ballasts that use Hylux ASIC technology are also more expensive to make because the components required to build this system are high quality - you can not make a cheap ASIC ballast, therefore everything about a Hylux ballast is better: Faster warmup time, less ignition noise, brighter stable operating light, less flicker-fluctuation and a longer lifespan. Simply put, the GTR Lighting HID ballasts with Hylux technology are the best aftermarket ballast available.
INPUT VOLTAGE:::9-16V DC
INPUT CONNECTION:::9006 Male
INPUT CURRENT:::4.4A @ 14V DC
OUTPUT:::AMP Male and Female
OUTPUT Power:::55w
RATED LIFESPAN:::2,500 hours
BALLAST:::1x GTR Ultra 55w AMP
Warranty:::Lifetime Limited
HID BULBS:::Any with AMP style inputs
INPUT:::9006 Male
ELECTRICAL:::9-18V Input
CANBUS:::Needs external harness
