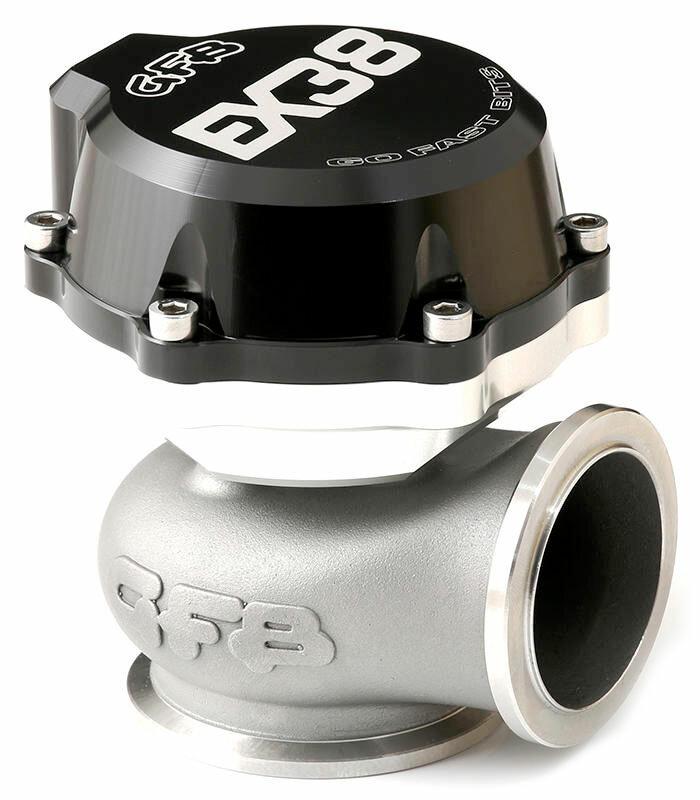

Go Fast Bits Ex 38Mm Wastegate: - 7003
The 7002 wastegate features an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures. ? 38MM VALVE, ? V-BAND INLET AND OUTLET (DIRECTLY COMPATIBLE WITH TIAL MV-S FLANGES), ? 93MM OVERALL HEIGHT, ? SUPPLIED WITH 10PSI (OUTER) SPRING ADDITIONAL SPRINGS AVAILABLE ARE 5PSI (INNER) AND 7PSI (MIDDLE), ? COMBINE SPRINGS TO ACHIEVE BASE BOOST PRESSURE OF 5, 7, 10, 12, 15, 17 AND 22PSI
MOST COMPACT WASTEGATE RANGE ON THE MARKET
BODY, VALVE, SEAT AND ALL MOUNTING HARDWARE IS CNC MACHINED FROM HIGH-TEMP STAINLESS STEEL
ACTUATOR HOUSING CNC MACHINED FROM BILLET 6061-T6 ALUMINIUM
NOMEX-REINFORCED SILICONE DIAPHRAGM
INTERNAL SHROUD PROTECTS VALVE STEM FROM EXCESSIVE HEAT AND PREVENTS CARBON-RELATED STICKING
V-BAND CLAMP MOUNTING SYSTEM
Manufactured In Australia under ISO 9001
GO FAST BITS products are Proudly Australian, made in accordance with the ISO 9001 quality management system. Constantly we?re developing new, and innovative products.
