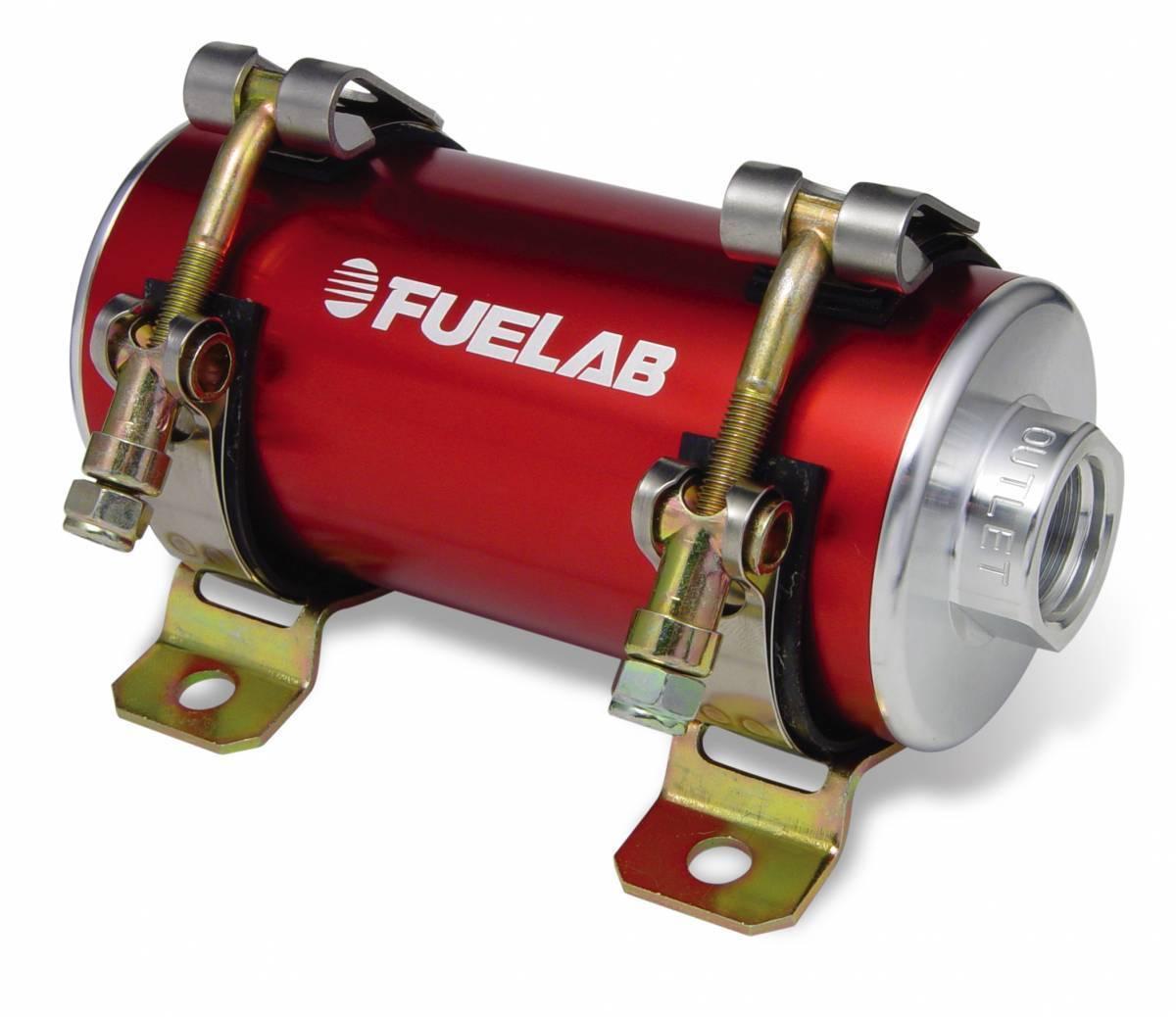

Fuelab High Power EFI (Electronic Fuel Injection)In Line Fuel Pump Rated Up To 2200HP Street/Strip Speed Adjustable DC Brushless Driven Fuel Pump Red FUELAB - 42402-2
220 GPH at 45 PSI, 100 PSI Max - Rated UP TO 2200HP The top of the line... supports very high horsepower!
Pump Features
- Red
- Compatible with gasoline, diesel, methanol, and ethanol
- High efficiency sling vane positive displacement pump
- Special housing shape for extremely quiet operation and steady pressure
- Carbon 9-vane construction with pressure balanced rotor for high reliability
- Backed by a limited lifetime warranty
Motor Features
- Lightweight super-efficient dc brushless motor reduces current draw
- Low mass rotor for high speed reaction to changes in speed and flow
- Powerful high flux density Neodymium rare earth magnets
- No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
- Wet motor design, no dynamic shaft seals that can wear out
Electronic Features
- Internal speed controller for variable flow operation
- 12 to 24 volt vehicle electrical system compatibility
- Accepts PWM input for speed control
- No expensive add-on voltage regulators or pump controllers required!
- Continuous duty-motor speed can be adjusted to meet fuel demand
Construction Features
- Compact, lightweight design, less than 3 lbs, overall length 6.9 inch, diameter 2.63 inch
- Billet Aluminum Construction with anodize per MIL-A-8625, Type II
- High quality mounting brackets included
- Long-life, multi-fuel compatible Fluorosilicone static seals
- Accepts standard or port style -10AN fittings
