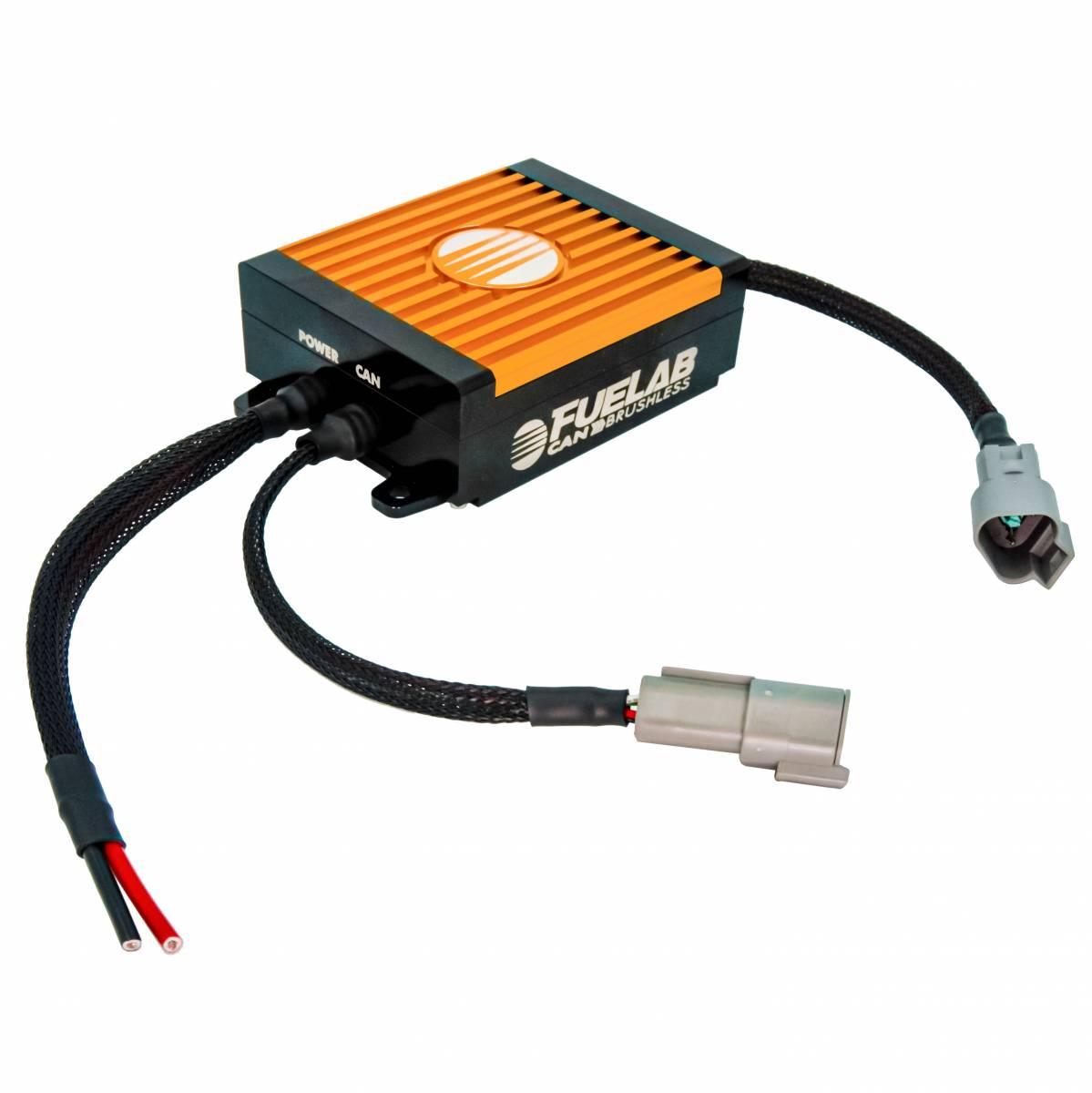

Fuelab Electronic (External) DC Brushless Fuel Pump Controller - 72007
CAN Brushless Fuel Pump Controller - Accepts Multiple Speed Inputs (PWM, 0-5v) or Fixed Speed.
Features:
- Advanced CAN Integration
- User friendly CANopen communication allows easy tie in to controller
- CAN Customizable calibration options
- Data Streams include - Pump State (on,off), Pump Voltage, Pump Amperage, Pump Motor speed, PWM frequency and controller temp
- Offers multiple default and data codes for accurate diagnostics
- Compatible with 3-Phase DC Brushless Fuel Pumps
- (3-wire) without Internal Controllers Only
- 12 and 24v electrical system compatibility
- 50 Amp Max output Capacity
- Billet Aluminum Enclosure
- Backed by a limited lifetime warranty
Pulse Width Modulation Compatibility (PWM) or 0-5v Input Signal:
- Compatible with most aftermarket ECU's with PWM output frequency
- Compatible from 100Hz to 5000Hz
- AEM
- ECU Masters
- Fueltech
- Haltech
- Holley
- Link Engine Management
- Megasquirt
