No Ford Performance control pack is available - builder must source engine controls separately

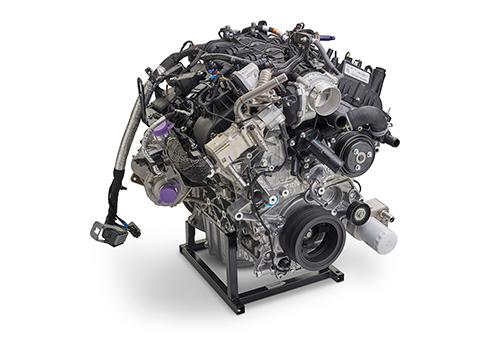

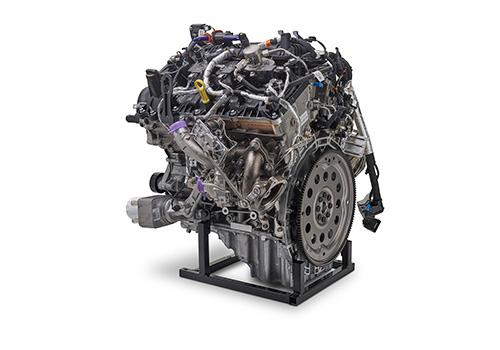

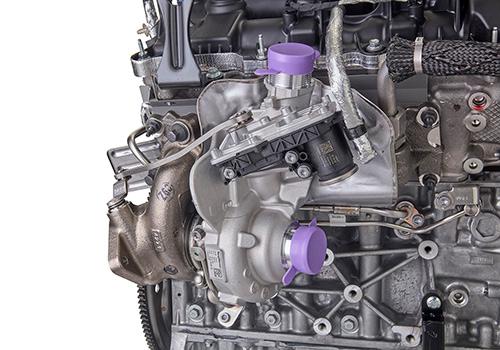

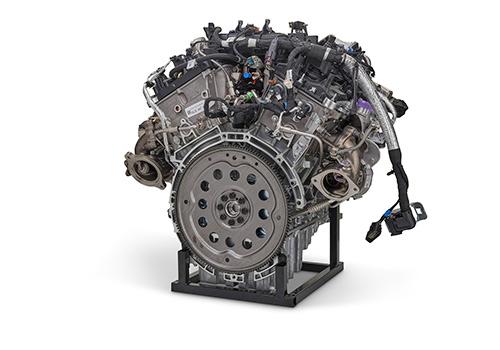

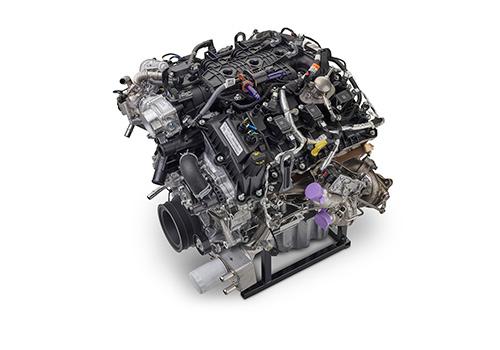

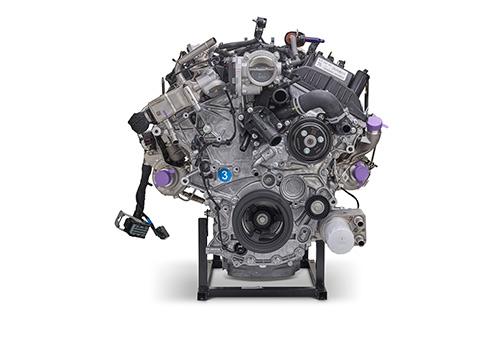

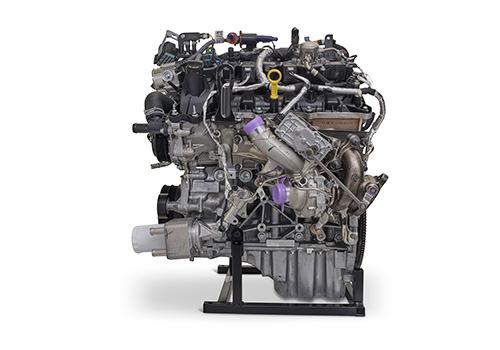

This 3.5L twin-turbo EcoBoost V6 crate engine is the 450 hp engine from the 2024 F-150 Raptor, offered as a complete crate engine for swaps and builds.
The 2024 Raptor 3.5L twin turbo EcoBoost engine is now available as a crate engine.
450 Horsepower @ 5,520 RPM
510 lb.-ft. of torque @ 3,250 RPM
All-aluminum construction
10.0:1 compression ratio
Dual overhead camshafts with variable camshaft timing
High Pressure Direct Fuel Injection
Premium Unleaded Fuel recommended
Lightweight die-cast aluminum block with six-bolt press-fit main bearing caps with piston-cooling jets
Fully counterweighted forged steel crankshaft
High-strength forged powder metal connecting rods with floating pins
Lightweight aluminum high-strength pistons with low-friction skirt coating
Tuned composite upper and lower intake manifold
6 quart die-cast aluminum deep sump oil pan
Engine weight is 417 lbs. (without accessory drive)
***No Ford Performance control pack available. Builder must source engine controls separately***
