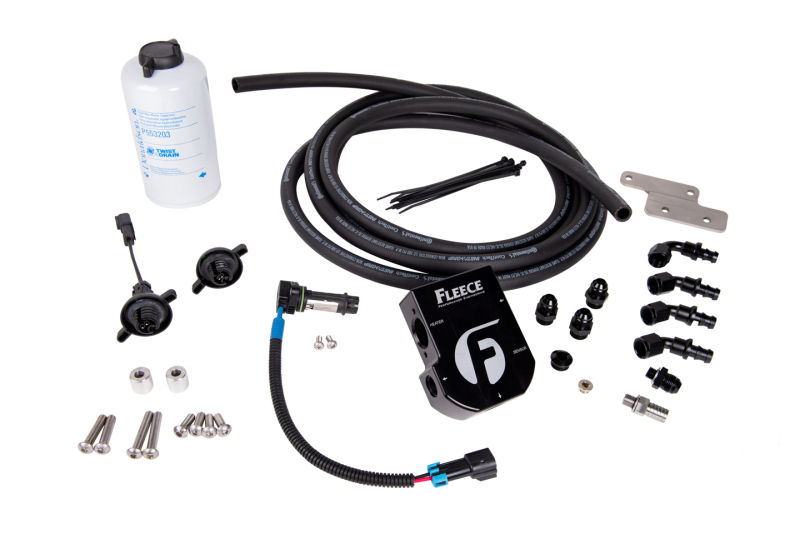

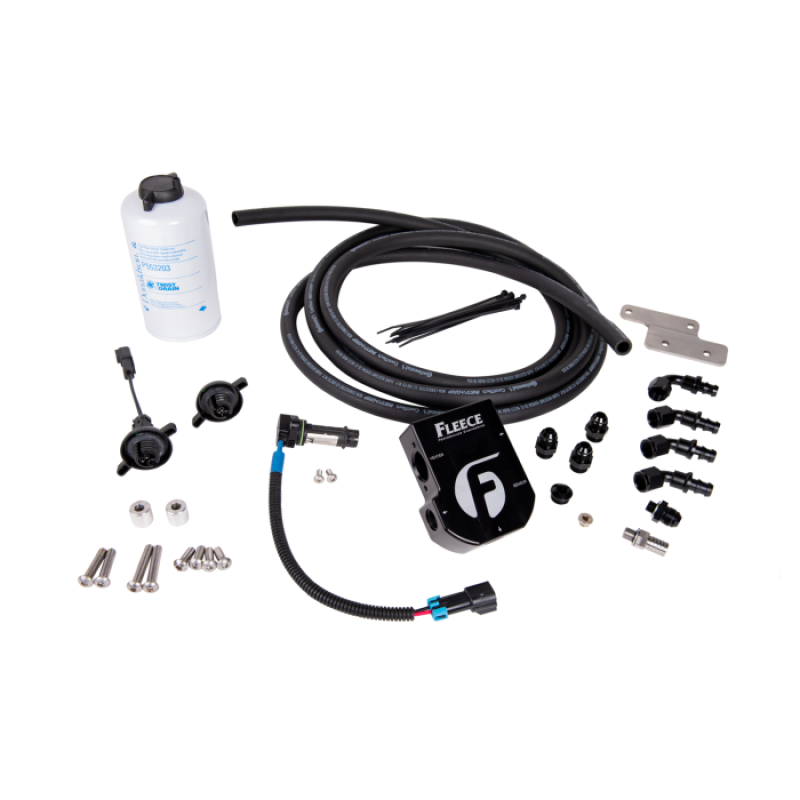

Introducing our all-new full featured auxiliary fuel filter kit for the 2003-2018 Dodge Cummins. This kit builds off our standard auxiliary kit with the addition of an integral high-flow fuel heating element and Water-In-Fuel (WIF) sensor. The kit includes everything you need to properly route, plumb and filter fuel for your Cummins engine from a Fleece Performance lift pump to the injection pump. Our kit improves accessibility to the fuel filter as well as reduces your ongoing maintenance cost with a lower cost Donaldson filter. Application notes: AFleece Performance fuel filter delete is required for use with this product and must already be installed or purchased separately. This kit does not include a quick disconnect fitting to adapt to the OE lift pump. If you are running this kit with a stock OE sending unit on the fuel tank use P/N:FPE-QUCON-OE-38to allow for an connection to the stock quick disconnect style fitting. Kit includes: Fuel filter base with integral heater and mounting hardware Donaldson3 micron fuel filter and water separator Push Lock hose and all necessary AN and barb fittings CP3 Feed fittings for 5.9L and 6.7L CP3 pumps Water-In-Fuel (WIF) sensor and adaptation harness Fuel heater specifications: Temperature switching points: ON: 28.4F +/-5.4F, OFF: 48.2F +/- 5.4F At typical fuel flow rates a temperature increase of between 4-8F will occur across the heating element.
Installation InstructionsWarranty
