Firestone Ride-Rite Air Tank 3 Gal 5 Ports - WR17609227

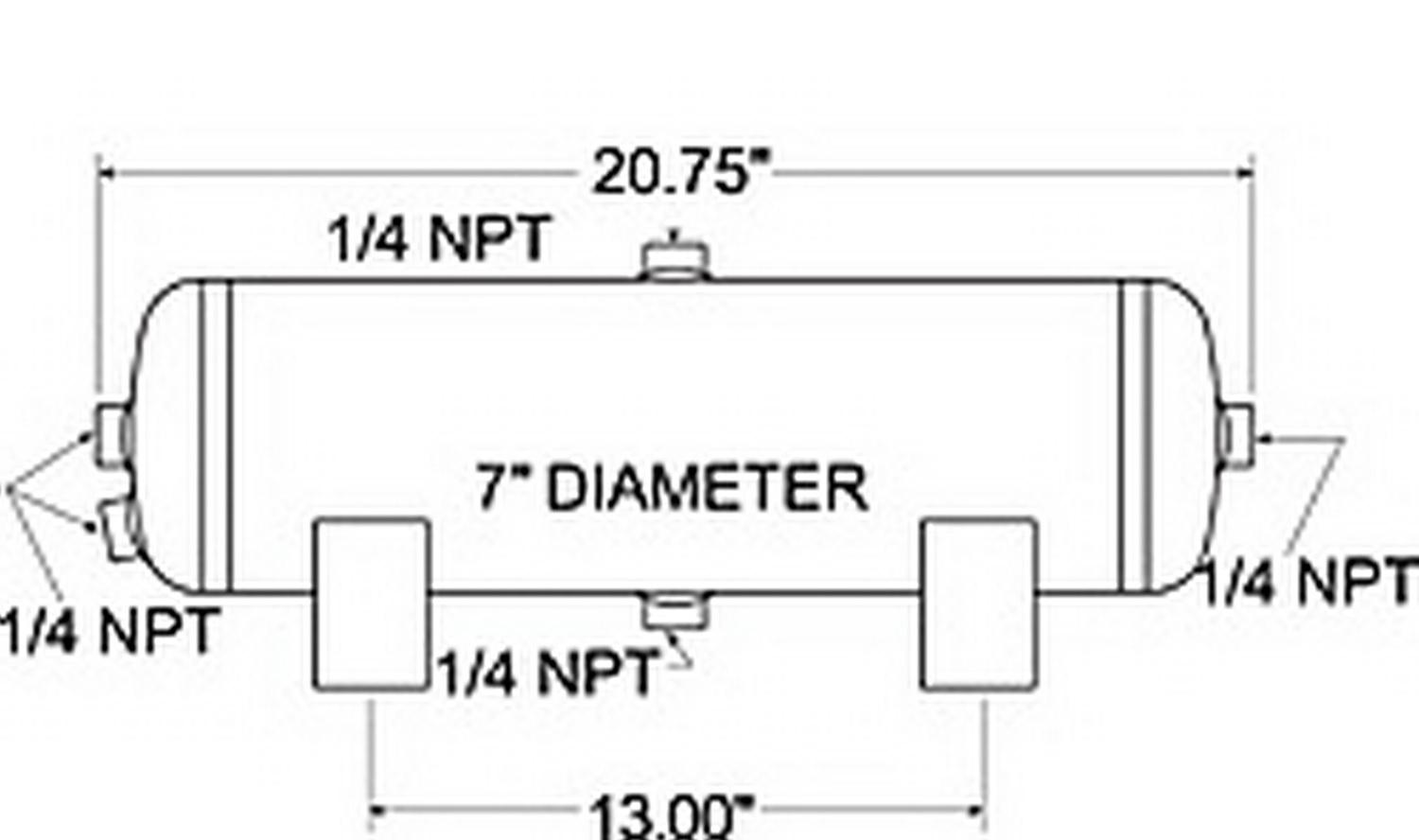

This Firestone Air Tank provides a source of compressed air for an air spring system. Tank has 3-Gallon capacity (3) 1/4 in. NPT Ports and (1) 1/8 port. Tank is enamel coated tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 3 Gallons of compressed air Includes (3) 1/4 in. and (1) 1/8 in. NPT Ports Steel Tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 20.75 in. long x 7 in. diameter Tank capacity: 3 Gallons Inflation Ports: 1/4 in. and 1/8 in. NPT PSI: Maximum of 150 2-Year limited warranty
Manufactured To SAE J10 Specifications
Pressure Tested To Twice The Working Pressure
Baked Black Enamel On Inside And Outside
Prevents Corrosion
Firestone manufactures and provides air springs for all vehicles. We began developing air suspension for passenger cars and trucks more than 70 years ago. We continue to be innovative in product design
material selection and customer service so we can provide you with a better ride and safe load-carrying capabilities. Firestone stands for quality
reliability and service.
