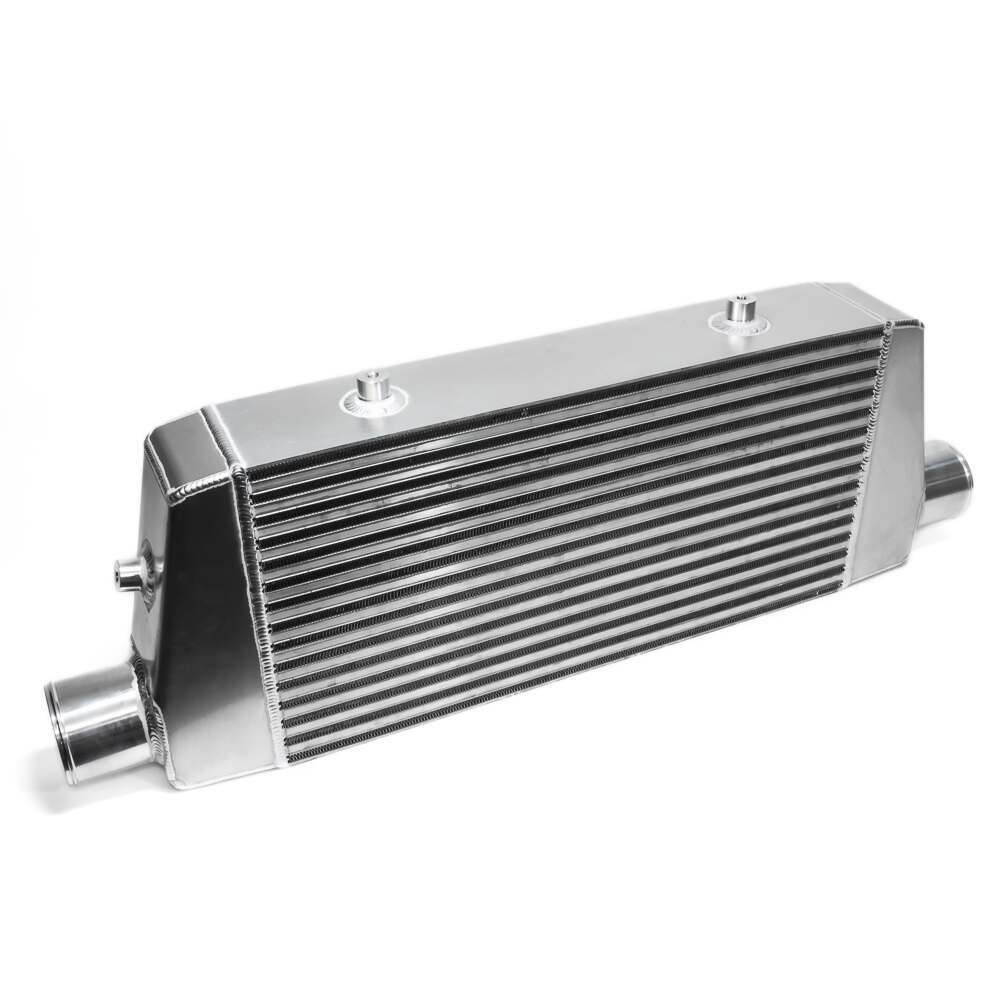

Fathouse Fabrications Race Intercooler (2005-2014 Mustang) - FP-S197-RI

VMP Intercooler core

Loctite

M6 x 20 mm flange head bolts (10)

Support rails (2)

VMP-SUC030 1" to 3/4" Long floating transfer tubes for GT500 with stock water manifold

VMP-SUC029 1" to 3/4" short floating tubes for Coyote/Raptor with stock water manifold

Must purchase 1" short or long floating transfer tubes when using with VMP water manifolds (SUC017 or SUC027)

13 cooling rows vs 12 stock

1" in/out ports vs 3/4" stock

123 mm wide vs 110 mm stock

8% increase in airflow

12% increase in core volume

15% increase in water flow (with supporting mods)

16 FPI lanced offset

LD style core

07-12 Mustang Shelby GT500 5.4 L 4v supercharged

13-14 Mustang Shelby GT500 5.8 L 4v supercharged

08-10 Roush 4.6 L 3v supercharged (P51A, P51B, Roush Hammer 540RH, and 4.6 L 3v cars with the Roush R2300 kit )

11-17 Mustang GT/Roush/F-150 5.0 L 4v supercharged

11-14 Raptor 6.2 L with Roush supercharger Phase 1 (421246) or Phase 2 (421432)

M-6775-MSVT

R07060144-13-AA

7R3Z-6K775-AA (07-12)

DR3Z-6K775-A (13-14)

286 mm core length

118 mm core depth

123 mm core height

28.58 mm water in/out

***This intercooler will only fit the above OEM intakes from Ford/Roush. The will NOT fit an aftermarket lower intake.
