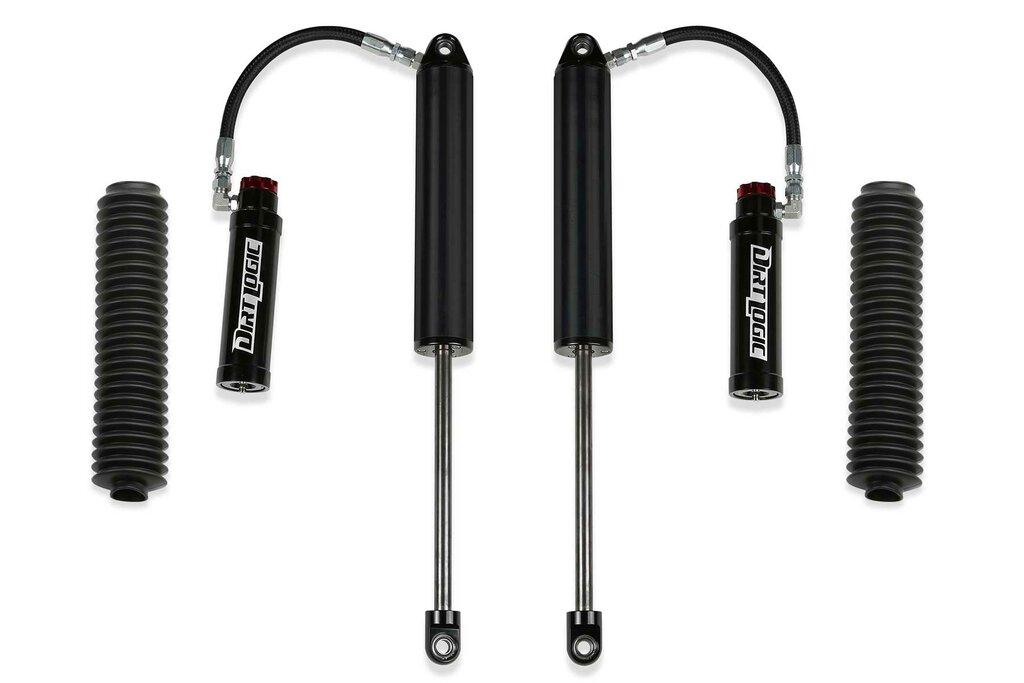

Fabtech 3.0Dl Smooth W/ Adj 4" Pair Packaged - FTS22290
3.0DL SMOOTH W/ ADJ 4" PAIR PACKAGED
In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
2010-14 Ford F150 Raptor 4WD - Fits 4in Lifts. As an alternative to the high end Dirt Logic 3.0 Bypass shocks, Fabtech offers a 3.0 smooth body shock for the rear of Gen 1 Raptors. These 3.0 shocks are externally compression adjustable and will provide improved damping compared to the stock Raptor shocks at an affordable price. These shocks are constructed with a steel body and receive a Cerakote finish in tactical black for extreme durability. This coating provides 120 hour salt spray compared to zinc plated steel shocks only going 48 hour salt spray. The 2.5in OD remote reservoir features a compression adjuster to provide additional damping for severe offroad use. Note - resi mounts to shock body. NitroSteel 7/8in piston rods are utilized for maximum corrosion resistance. A durable piston rod boot is included to totally protect the rod from sand and rock spray that can cause damage leading to seal failure. High tolerance internal components feature Viton seals and a 2.75 OD billet piston with variable flow bleed ports. It provides a compliant ride at low speed yet be able to handle big impact hits with ease. Completing the blacked out appearance of these Raptor shocks is the polished and black anodized aluminum components. They offset the matte Cerakote finish for a subtle yet bold statement. Each Dirt Logic 3.0 is hand assembled by master technicians to ensure the highest quality standards are met and are ready to run out of the box for aggressive offroad use. Features: 3.0in Black Cerakote Body 120 Hour Salt Spray. Allows for 12in of wheel travel with stock leaf springs. 2.75in OD Billet Aluminum Piston. 7/8in OD NitroSteel Black Piston Rod. Viton Seals. Exotic Valve Stack. 2.5in OD Aluminum Resi w/ Compression Adjuster. 5/8in Spherical Ball Mounting Ends. Rear Dirt Logic 3.0 Resi Smooth Body Shocks.
