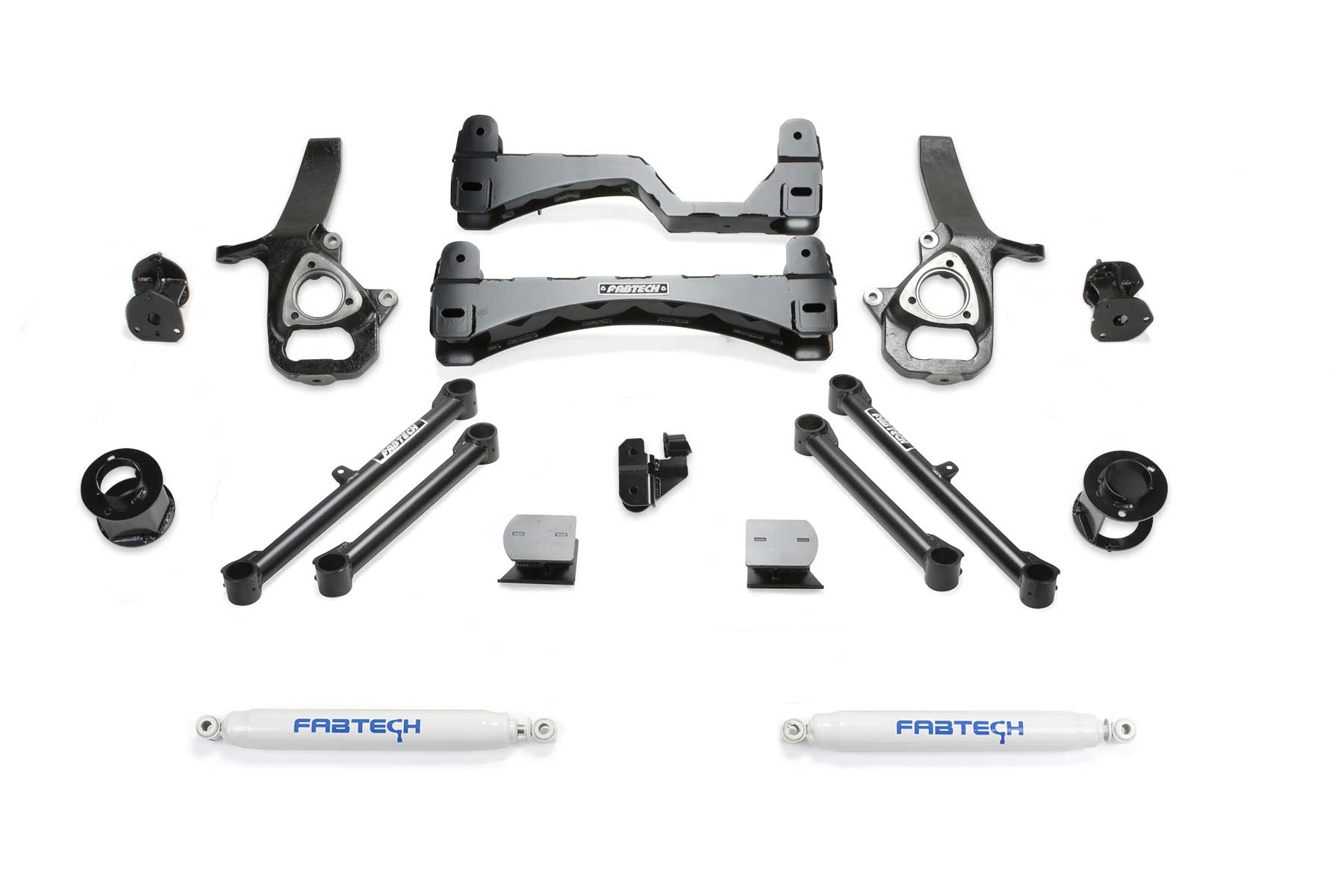

Fabtech 6" Basic Sys W/Perf Shks 2019-20 Ram 1500 2Wd (2019-2020 1500) - K3093
6" BASIC SYS W/PERF SHKS 2019-20 RAM 1500 2WD
In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
This system is a great choice for 2WD Ram owners looking to keep that stock ride yet want big tires and wheels. The factory suspension is relocated with heavy duty bolt on bracketry that will provide years of trouble free service. The system features Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4in thick steel lower control arm crossmembers provide superior ground clearance for offroad use. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for stock load carrying capacity with a great highway ride. The Basic lift kit includes front coilover spacers that utilize the factory Coilover shocks for a stock like ride. CROSSMEMBERS: 1/4in thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension. STEERING KNUCKLES: Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds. COILOVER SPACERS: Thick wall tubing and 1/4in thick steel is used to build these 6in lift spacers retaining the factory Coilover shocks for a stock ride. SWAY BAR BRACKETS: Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop. REAR COIL SPRING SPACERS: Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort. REAR TRACK BAR BRACKET: The bolt on relocation bracket re-centers the rear axle for the new ride height while retaining the factory roll center of the vehicle. PERFORMANCE SHOCKS: Extended length twin tube shocks provide a good highw
Located in Chino, California our headquarters spans across five acres. The custom building was constructed to Fabtech's specification for in house development, manufacturing, distribution and administration. The 100,000 square foot facility is divided into designated departments that can operate as a single unit or collectively as a group. This allows Fabtech to function 24 hours a day as needed without compromising security, capacity or quality of the operations. Fabtech's development capabilities are second to none with over 25 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast. New vehicle platforms now require a full integration of the vehicles electronics and sensors into the suspension design in order for the vehicle to properly function. Fabtech has invested into proprietary development processes and technologies to aid in properly designing new vehicle suspension systems that lead the industry. To ensure product quality, Fabtech builds all of its componentry in house. The manufacturing division is a world class lean environment dedicated to consistently producing quality parts in low or high volume production runs. Multiple laser cutters, robotic welders, forming equipment, machining centers and skilled welders provide flexibility and quality to its production. Packaging, warehousing and distribution are contained within the building for immediate shipment worldwide.
