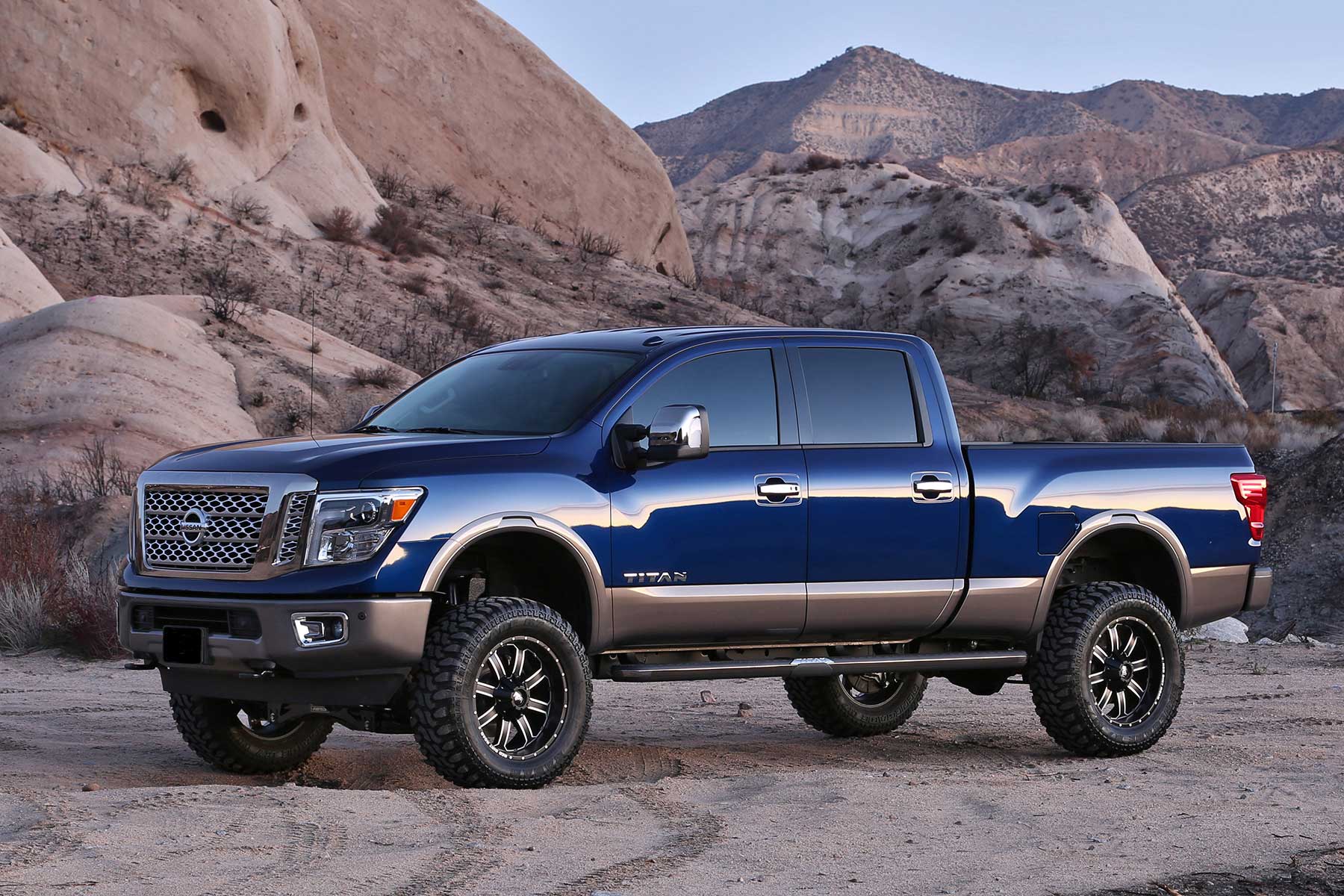

Fabtech 6" Basic Sys W/Perf Shks 2014-17 Nissan Titan 4Wd (2014-2017 Titan) - K6008
6" BASIC SYS W/PERF SHKS 2014-17 NISSAN TITAN 4WD
In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.

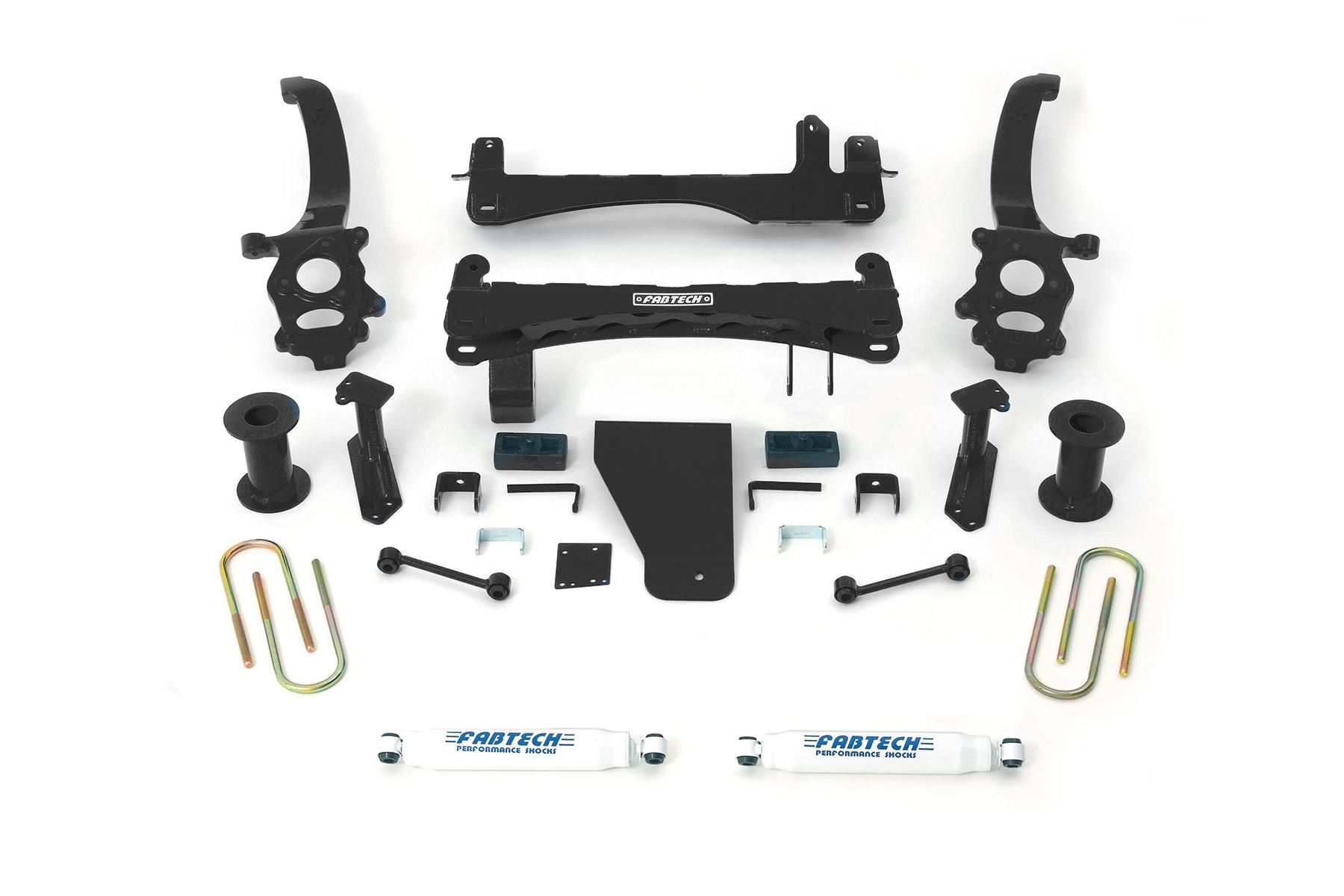

This system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4in thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with a block and u bolt configuration. The Basic System includes front coilover spacers that utilize the factory Coilover shocks for a stock like ride characteristic. 1/4in thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds. Thick wall tubing and 1/4in thick steel plate is used to build these 6in lift spacers that retain the factory Coilover shocks for a stock ride. A heavy duty front differential skid plate is constructed of 1/4in thick steel to protect the diff from offroad obstacles. Integrated differential mounts on the crossmembers properly re-position the front diff for the precise CV and driveshaft angle throughout the entire steering and suspension travel range. 1/4in thick steel construction with heavy wall tubing is built to handle the full compression impact of the Titan. Extended length sway bar end links feature urethane bushings for positive on road feel and longevity. Steel rear lift blocks replaces the factory blocks for addition lift without changing the ride quality or load carrying capacity. American made U-Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle. Extended length Performance twin tube shocks provide a good highway ride with the ability to tackle offroad.
Located in Chino, California our headquarters spans across five acres. The custom building was constructed to Fabtech's specification for in house development, manufacturing, distribution and administration. The 100,000 square foot facility is divided into designated departments that can operate as a single unit or collectively as a group. This allows Fabtech to function 24 hours a day as needed without compromising security, capacity or quality of the operations. Fabtech's development capabilities are second to none with over 25 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast. New vehicle platforms now require a full integration of the vehicles electronics and sensors into the suspension design in order for the vehicle to properly function. Fabtech has invested into proprietary development processes and technologies to aid in properly designing new vehicle suspension systems that lead the industry. To ensure product quality, Fabtech builds all of its componentry in house. The manufacturing division is a world class lean environment dedicated to consistently producing quality parts in low or high volume production runs. Multiple laser cutters, robotic welders, forming equipment, machining centers and skilled welders provide flexibility and quality to its production. Packaging, warehousing and distribution are contained within the building for immediate shipment worldwide.
