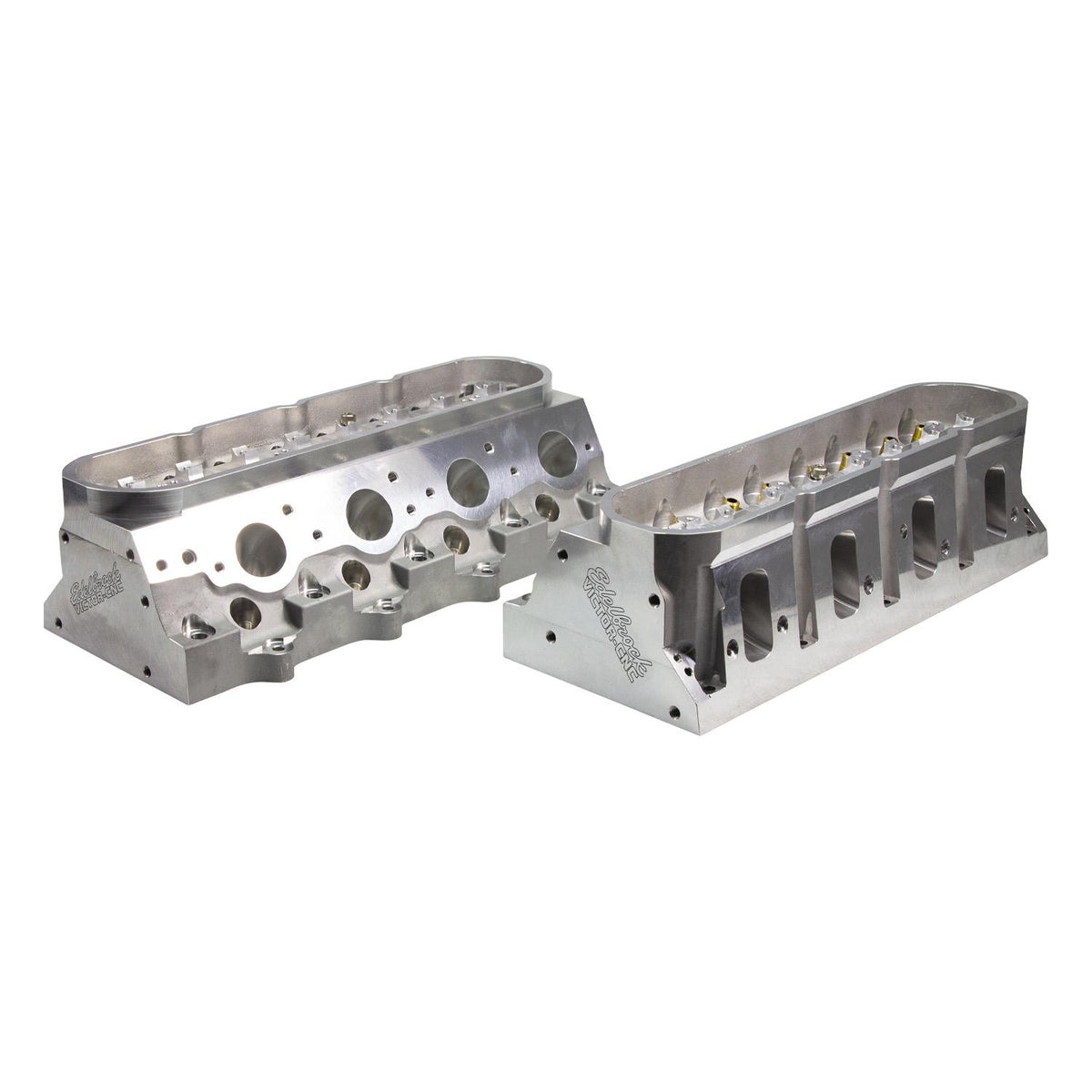

Edelbrock Victor Cnc Ls7 307Cc Copper Seat 2.200/1.615- Bare - 77698
The Edelbrock Victor CNC 12° 6-Bolt Head for GM LS7 307cc/69cc Individual #77698 is designed for maximum effort naturally aspirated and boosted applications. It features .220” raised intake runners and .100” raised exhaust ports that provide a better line of sight into the cylinders and allow for an improved short turn. The raised intake runner design fits both stock and aftermarket LS7 intake manifolds and can be used with stock or aftermarket valve trains. The head utilizes the GM LS 6-bolt design, making it compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and improves head gasket sealing – ideal for high compression naturally aspirated engines and high boost applications. Features include a 12-degree valve angle and fully CNC-machined ports for maximum airflow. CNC-machined runners and chambers, as well as the .220” raised intake ports and 12-degree valve angle, increase overall flow capability, while a revised water jacket design enhances thermal conductivity and tunability. The manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700” thick deck and .400” raised valve cover rail make this head ideal for maximum horsepower and high valve lift applications. All Edelbrock Victor CNC heads feature patented Clean Cast Technology™, a process that eliminates casting flaws and promotes a smoother internal surface finish for greater air and coolant flow. These benefits provide more power and increased cooling ability. Part #77698 is a bare head that features: 307cc runners, 69cc chambers, 2.200 intake/1.615 exhaust valves, copper valve seats and no down nozzles.
Premium 110 BHN aluminum alloy, .220" raised intake port, .100" raised exhaust port, Copper valve seats, 307cc or 291cc intake port volume, 2.250" or 2.200" x 1.615" valve job
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
Founded in 1938, Torrance-based Edelbrock, LLC. is recognized as one of the nation's premier designers, manufacturers and distributors of performance replacement parts for the automotive aftermarket.
