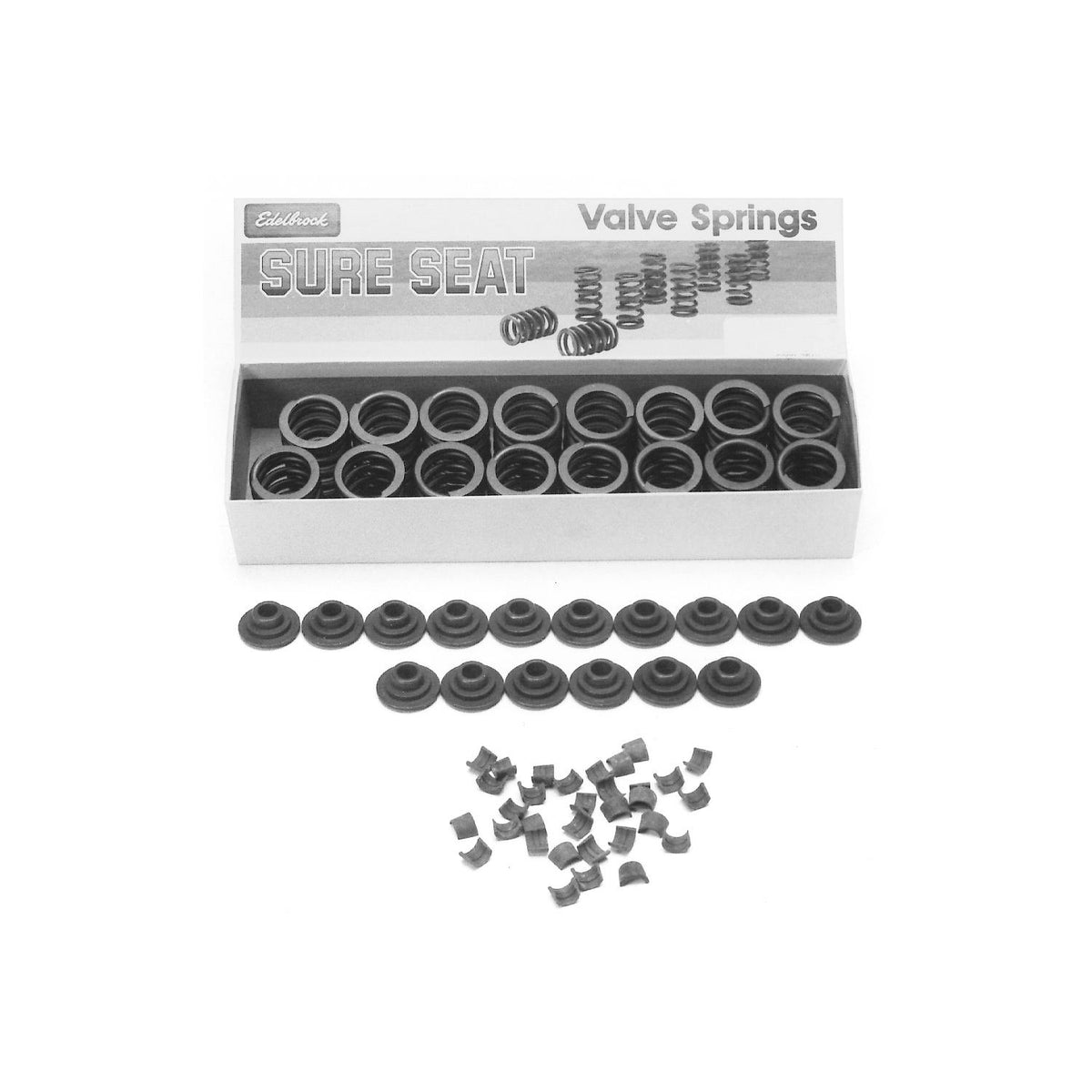

Edelbrock Engine Valve Spring Kit - 5794
Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. Set of 16.
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.
Valve Spring Specifications:
Type: Non-Rotator
Seat Pressure: 110 lbs.
Installed Height: 1.700"
Open Pressure: 285 lbs. @ 0.490"
Outside Diameter: 1.265"
Inside Diameter: 1.060"
Coil Bind: 1.160"
Founded in 1938, Torrance-based Edelbrock, LLC. is recognized as one of the nation's premier designers, manufacturers and distributors of performance replacement parts for the automotive aftermarket.
PRODUCT NOTES:
1003 - 1.700
1004 - 110
1008 - Yes
1010 - Yes
1074 - Hydraulic Flat Tappet
1075 - 1.160
1076 - 0.490
1077 - 285
RGL - WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Springs Per Valve - Single
