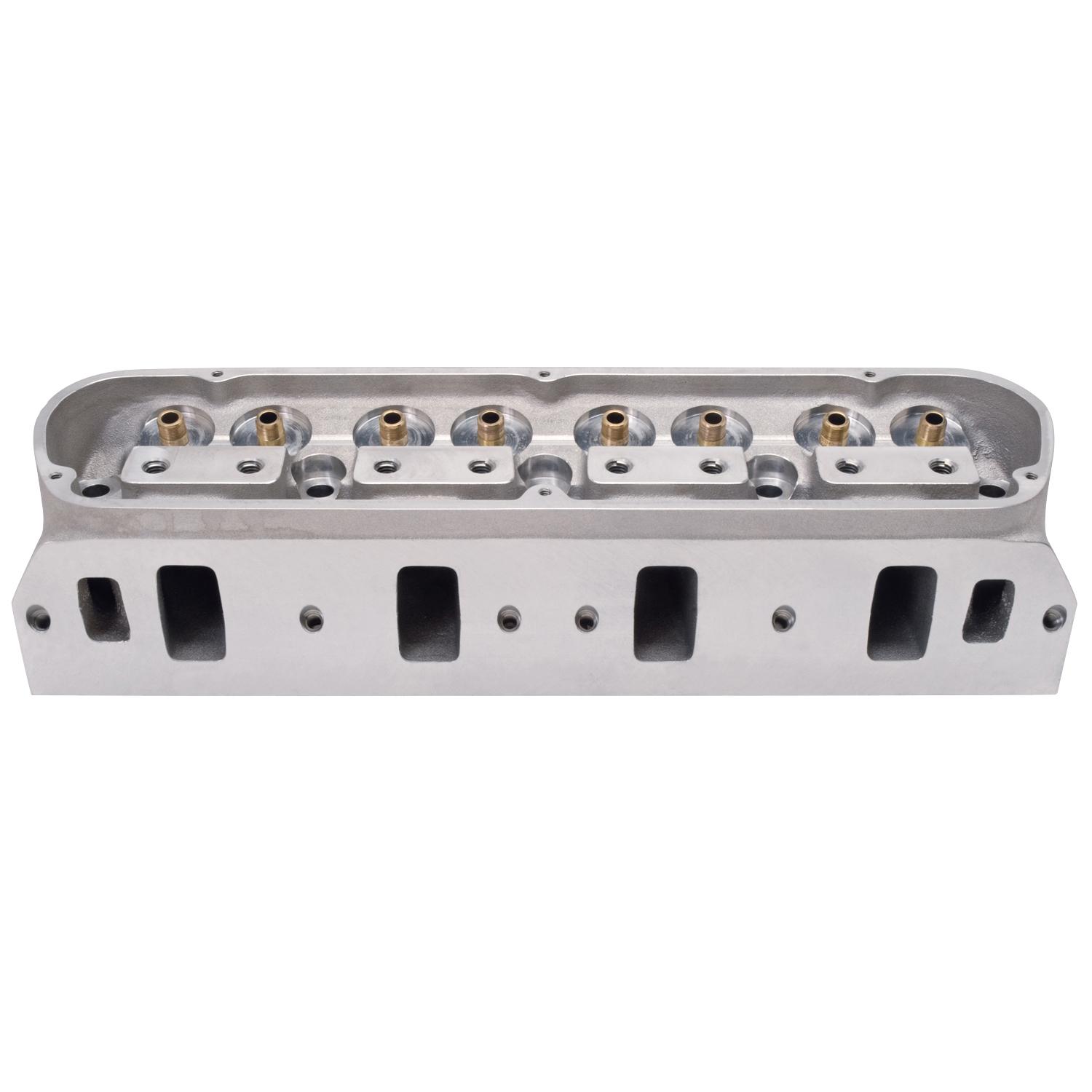

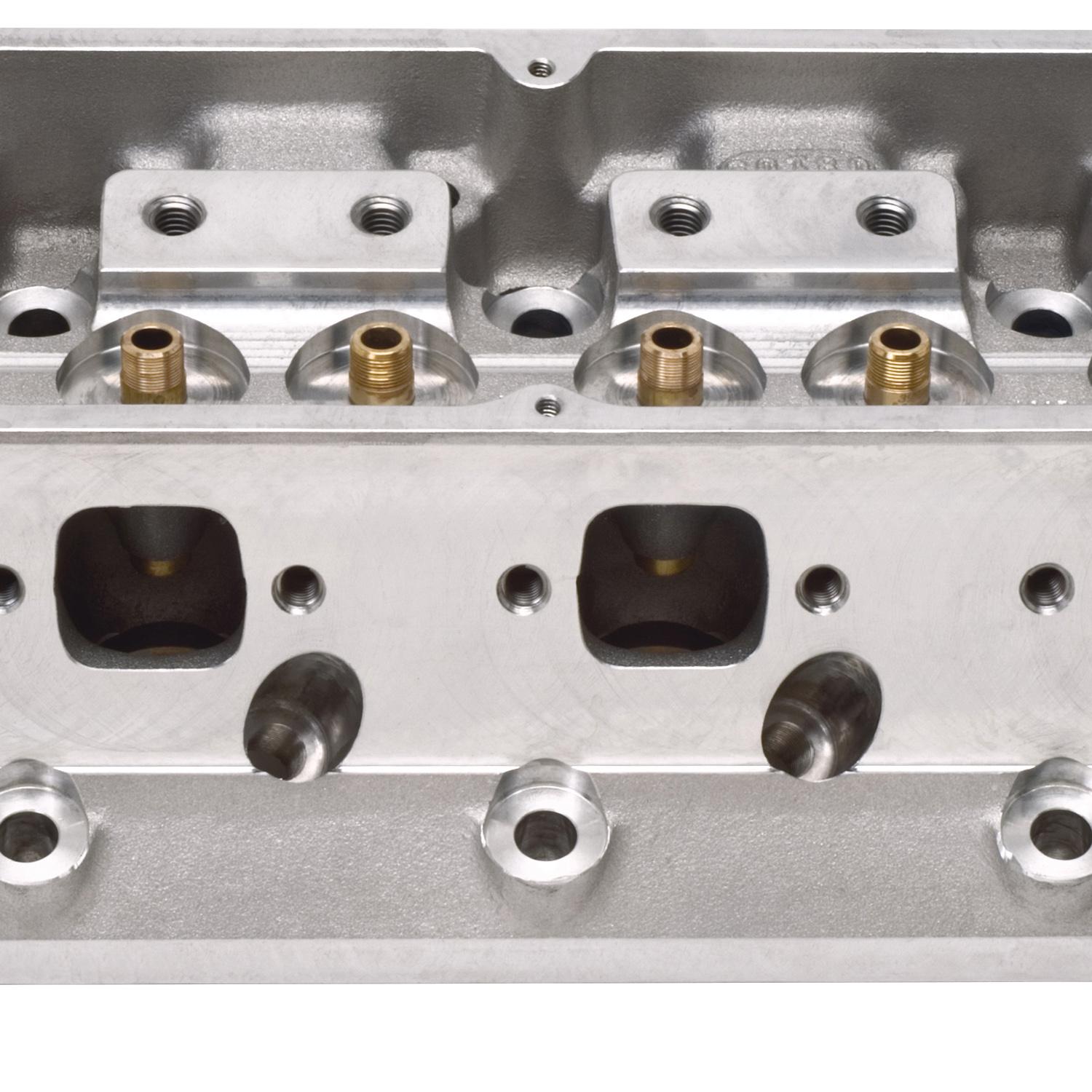

Edelbrock SBF Cylinder Head - 77219
Edelbrock part #77219 Victor Semi-Finished 15 Degree is a bare cylinder head designed for S/B Ford 289-351W engines. The inline valve configuration features a 15 degree valve angle and a modern combustion chamber.
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
The Edelbrock part #77219 Victor 15 Deg Small Block Ford 240cc cylinder head is designed for maximum effort competition racing on 289351+ cubic inch based engines. The inline valve configuration features a 15 Deg valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"; however the intake flange has been extended to maintain proper port alignment with standard intake manifolds. The exhaust ports are patterned with a 2.50" spacing and raised .520" for high flow potential. This head requires shaft mounted rockers; please contact Jesel or T&D for details. Features include 47cc combustion chambers, ductile iron interlocking valve seats, manganese-bronze valve guides and requires professional preparation. Edelbrock recommends 2.125" intake valves and 1.625" exhaust valves with 5.45" overall length.
List 1
PRODUCT NOTES:
CNC Ported - No
Combustion Chamber Volume - 47
Construction Type - Bare
Deck Thickness - 0.625
Exhaust Port Location - +.550
Exhaust Runner Volume - 80
Family - Victor
Grade Type - Performance
Guide Material - Manganese Bronze
Guide Plates Included - No
