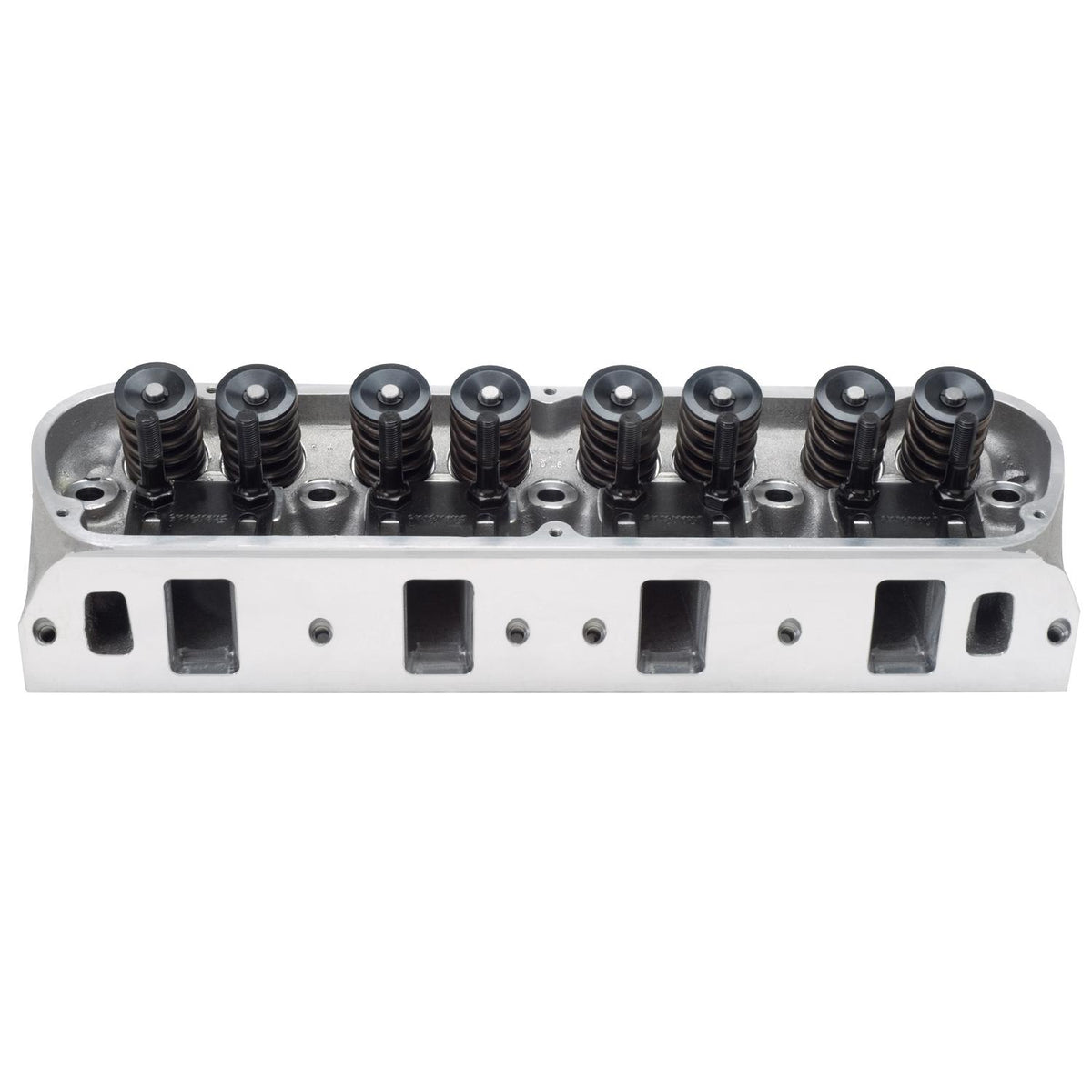

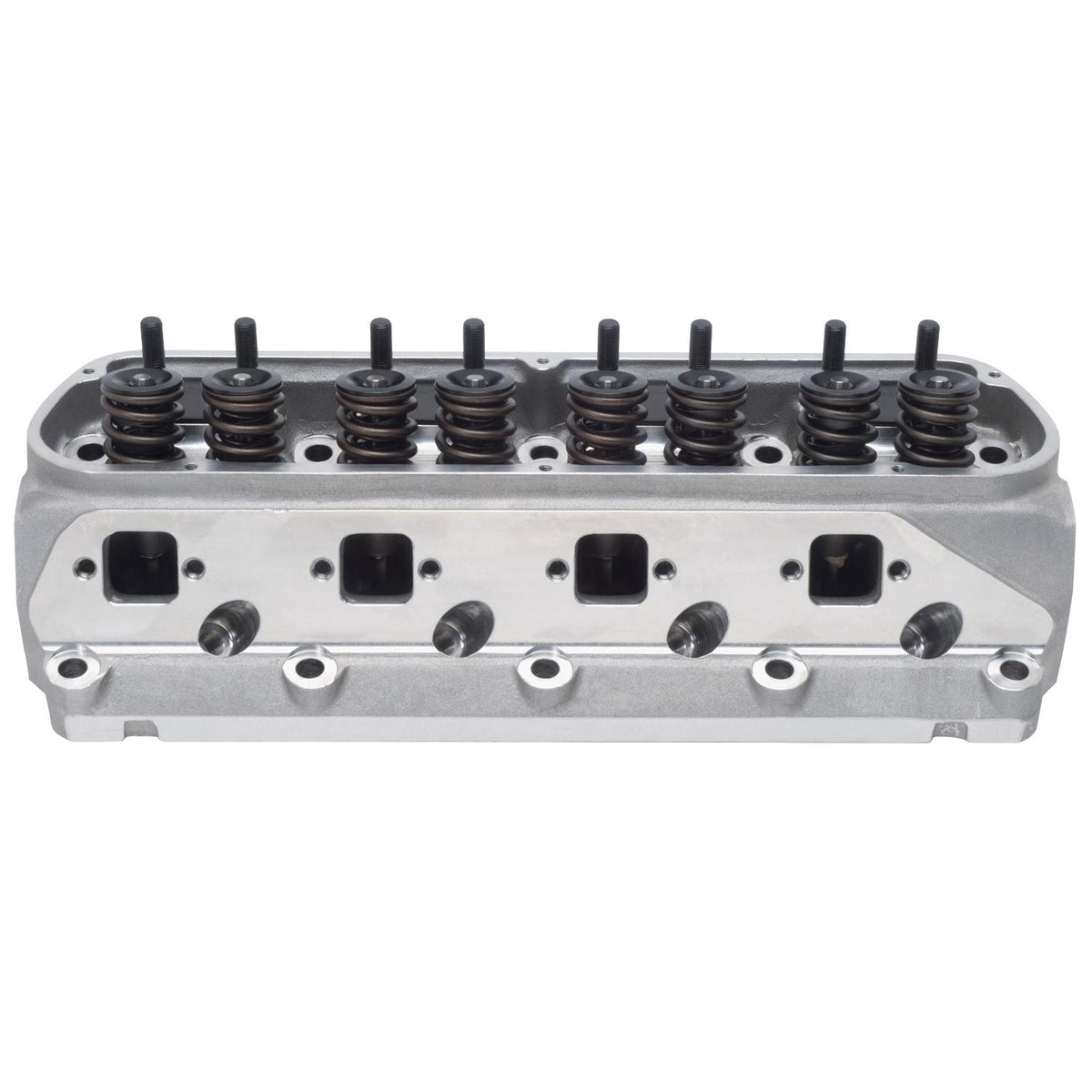

Edelbrock SBF Cylinder Head - 77189
Edelbrock part #77189 Victor Jr. 20 Degree is a complete cylinder head designed for S/B Ford 289-351W engines. This head has the potential of 500+ Horsepower out-of-the-box using a stock valve train geometry.
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
The Edelbrock 77189 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience., VICTOR JR. 20deg210cc FEATURES:, 500+ horsepower potential out-of-the-box using stock valve train geometry, High-flowing 210cc intake ports and .130" raised 75cc exhaust ports, Available with 60cc or 70cc combustion chambers, 70cc combustion chambers are ideal for turbocharged and supercharged applications, CNC gasket-matched port entries/exits with blended valve bowls, Spark plug holes and valves are in the stock location, Valve cover rail raised .150", A relief in the head allows most roller lifters to be changed without removing the head
List 1
PRODUCT NOTES:
Camshaft Type - Hydraulic Roller
CNC Ported - No
Combustion Chamber Volume - 60
Construction Type - Complete
Deck Thickness - 0.625
EGR Port - No
Exhaust Port Location - +.125
Exhaust Runner Volume - 75
Exhaust Valve Diameter - 1.60
Family - Victor Jr.
