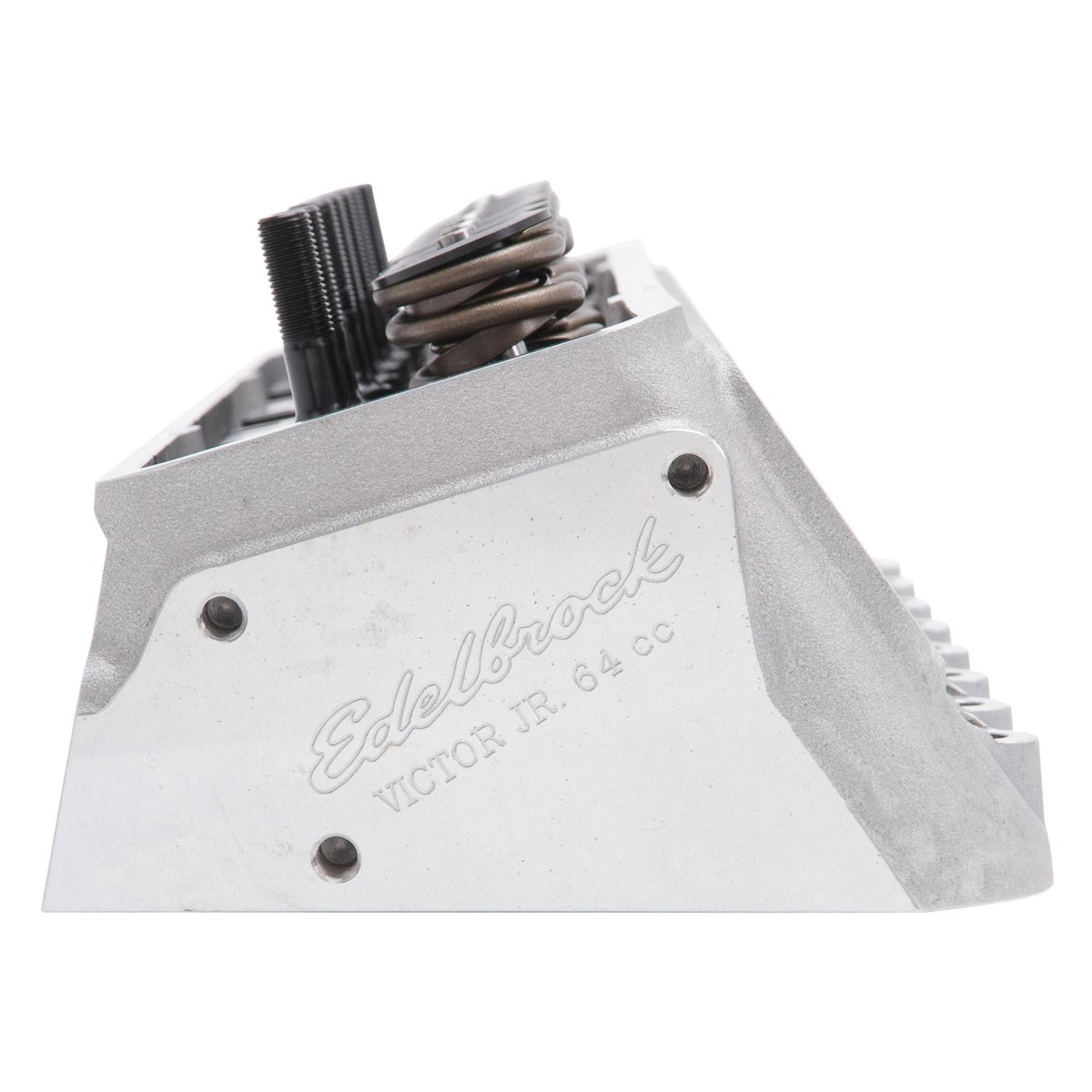

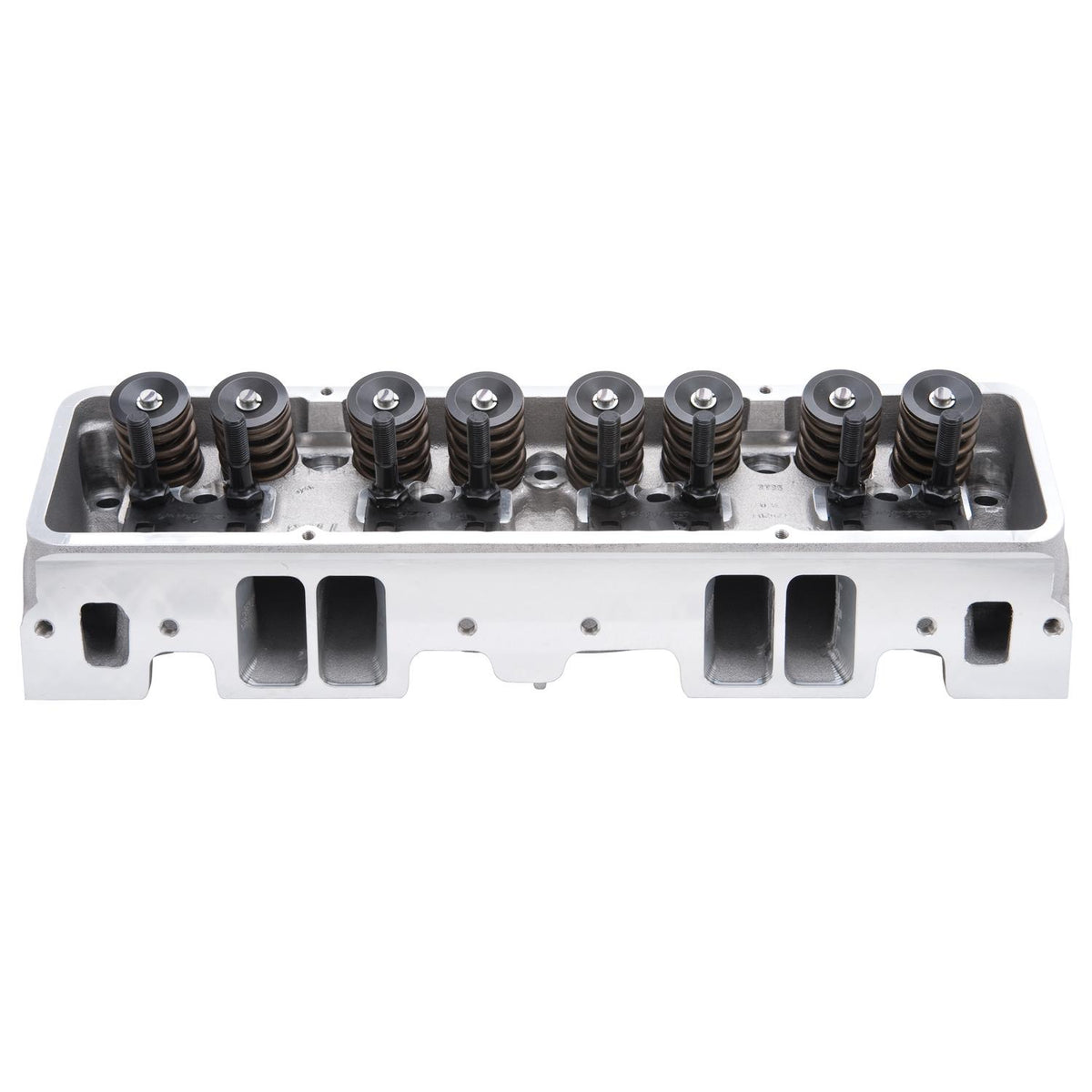

Edelbrock SBC Cylinder Head - 77589
Edelbrock part #77589 Victor Jr. is a complete cylinder head for Small Block Chevy 262-400 V8 engines using a hydraulic roller cam. This cylinder head offers affordable max power for competition and high-performance's street applications
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
The Edelbrock part #77589 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77589 cylinder head has a 64cc combustion chamber and come with springs for hydraulic roller camshafts. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.
List 1
PRODUCT NOTES:
Camshaft Type - Hydraulic Roller
CNC Ported - No
Combustion Chamber Volume - 64
Construction Type - Complete
Deck Thickness - 0.5625
EGR Port - No
Exhaust Port Location - +.125
Exhaust Runner Volume - 85
Exhaust Valve Diameter - 1.60
Family - Victor Jr.
