Edelbrock SBC Victor Jr Cylinder Head - 61259
The Edelbrock #61259 Victor Jr. 220cc cylinder head is designed for 1955-86 SB Chevy applications. The #61249 Victor Jr. is perfect larger cubic inch small blocks and vehicles where maximum power is needed.
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.

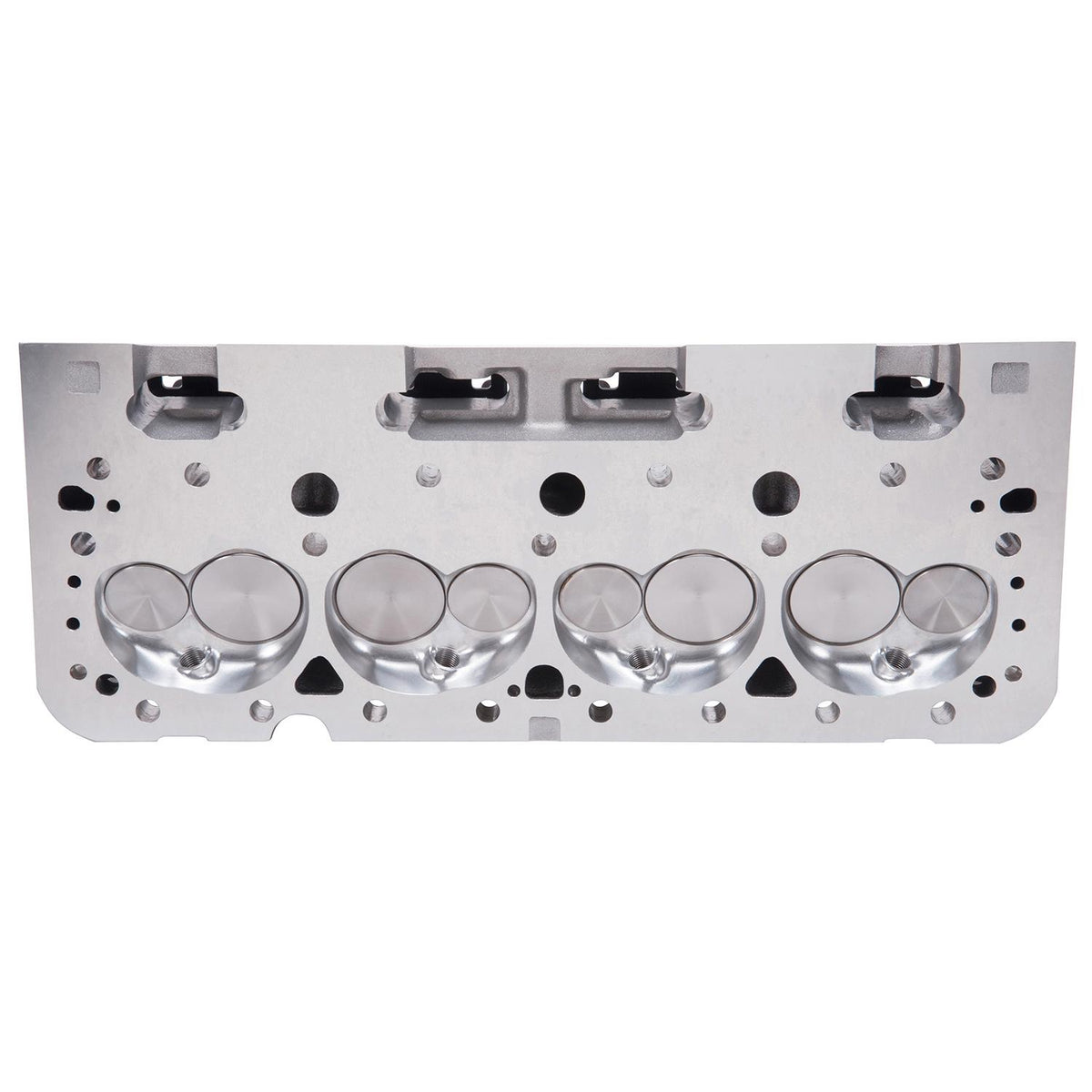

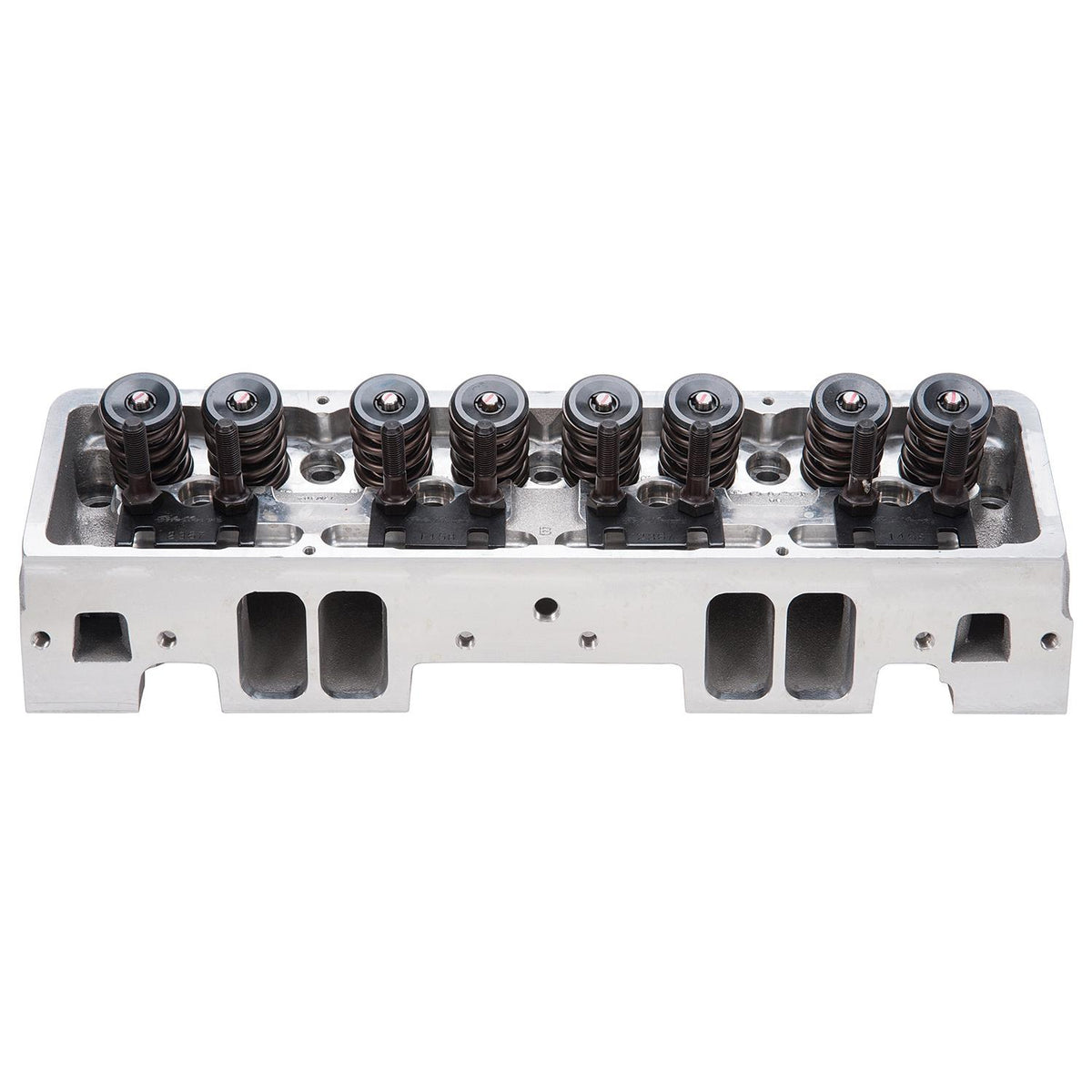

Edelbrock part #61259 Victor Jr. 23deg 220 cylinder head is designed for small-block Chevy Its 64cc combustion chamber yields around 10:1 compression ratio in a typical flat-top application and about 12.5:1 when used with some of the most common 12cc dome pistons. One of the key features of the Victor Jr. 23deg 220 cylinder head is the CNC machined chambers and bowls, which result in consistency and improved performance. They also feature angled spark plug holes and maintain the stock 23deg valve angle as well as the intake flange bolt pattern for use with 1986 and earlier intake manifolds. All of this allows this cylinder head to deliver 530-580 hp potential right-out-of-the-box, making them ideal for a budget minded engine build desiring a high quality cylinder head that still uses a stud and guide plate rocker system. , Cylinder Head Specifications:,Exhaust port location: Raised .300",Spark plug fitment: 14mm x .750 reach, gasket seat
List 1
PRODUCT NOTES:
Camshaft Type - Mechanical Roller
CNC Ported - Yes
Combustion Chamber Volume - 64
Construction Type - Complete
Deck Thickness - 0.6875
EGR Port - No
Exhaust Port Location - +.300
Exhaust Runner Volume - 85
Exhaust Valve Diameter - 1.60
Family - Victor Jr.
