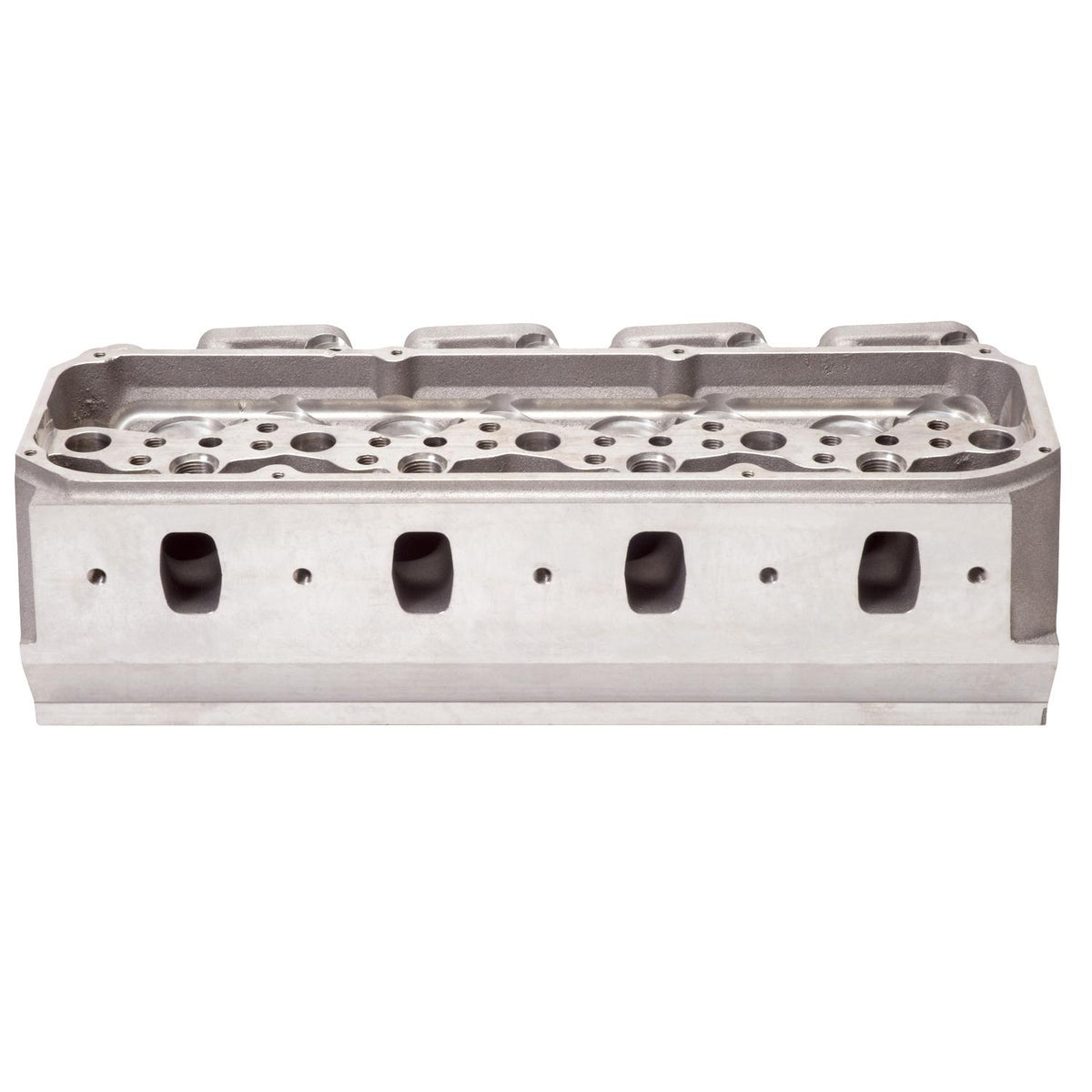

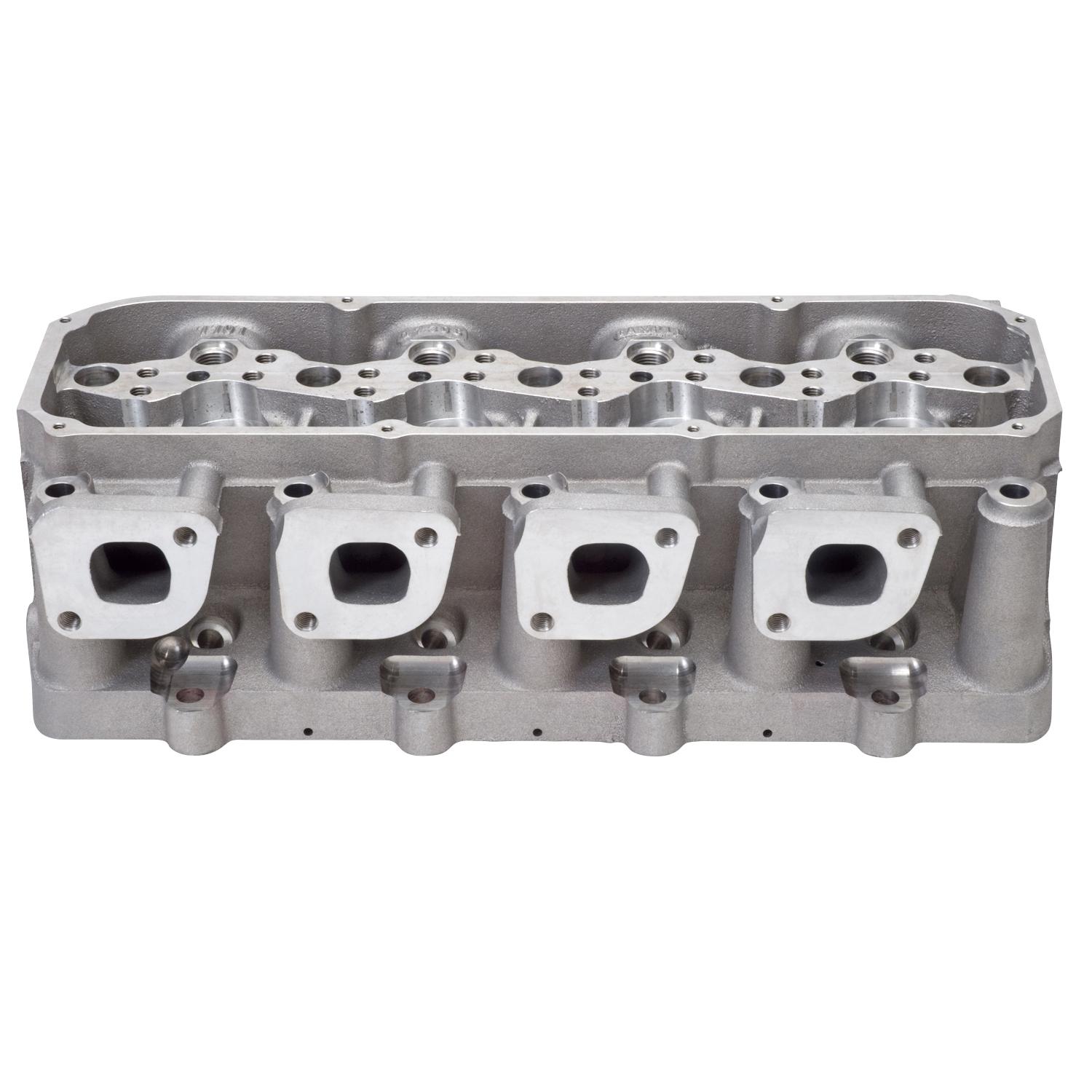

Edelbrock SBF Cylinder Head - 770769
Edelbrock #770769 Pro Port Glidden-Victor SC-1 Cylinder Head is for Small-Block Ford, Race and Ultra high-performance's street Engines. Bare, HIP Treated Casting
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
The Edelbrock 770769 Small Block Ford SC1 Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. , Pro-Port RAW Features Include: ,Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder ,The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting ,The only head designed specifically to accommodate almost any CNC port shape, size or location ,Offers enough wall thickness for CNC machining to various port dimensions ,In most cases seats and manganese-bronze valve guides are included,Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.
List 1
PRODUCT NOTES:
CNC Ported - No
Combustion Chamber Volume - Possible 20
Construction Type - Pro-Port Raw
EGR Port - No
Exhaust Port Entry - 1.50 in x 1.36
Exhaust Valve Diameter - (Suggested) 1.64
Exhaust Valve Pierce Points (X,Y)(C) - 1.110 in, -0.350
Family - Victor
Grade Type - Performance
Guide Material - Manganese Bronze
