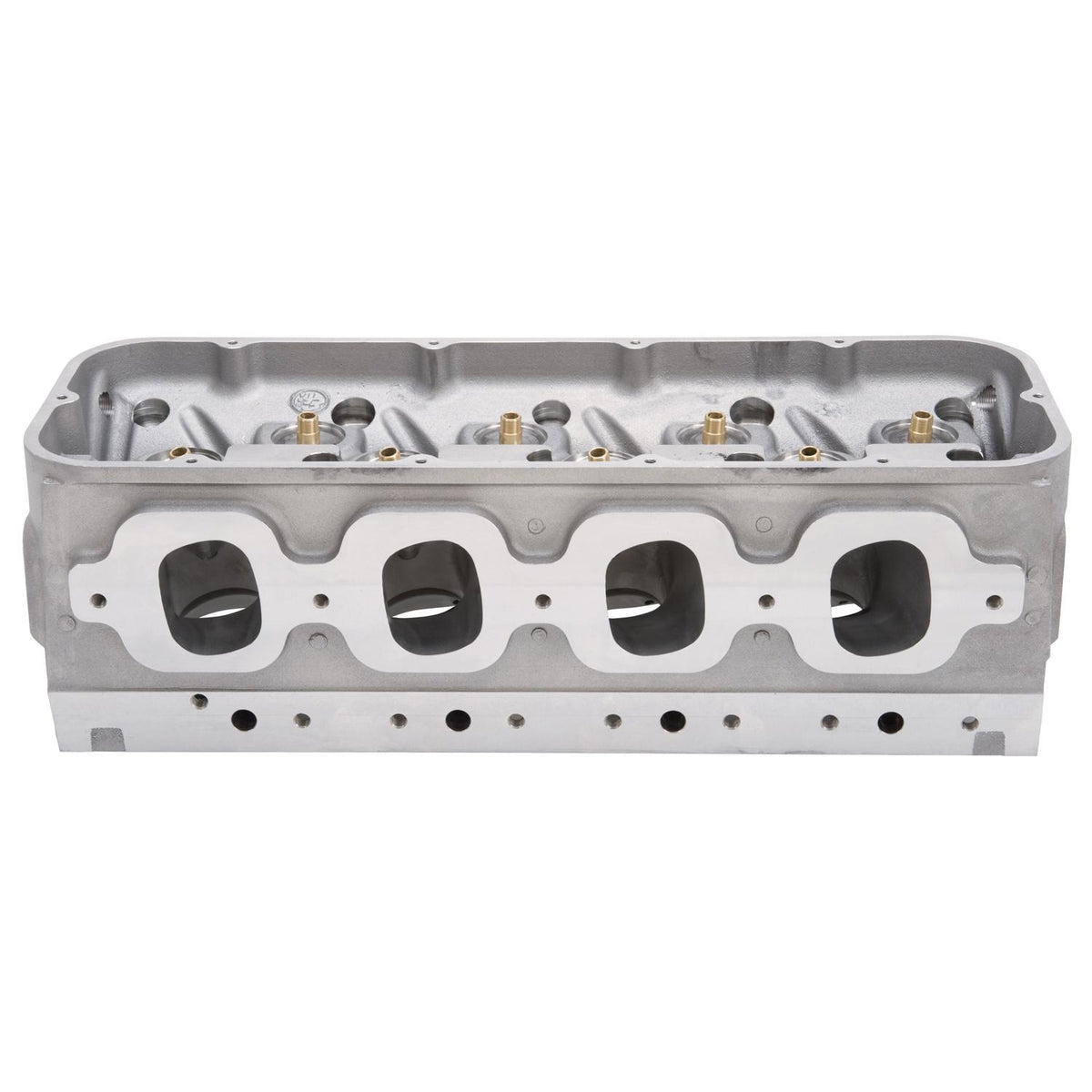

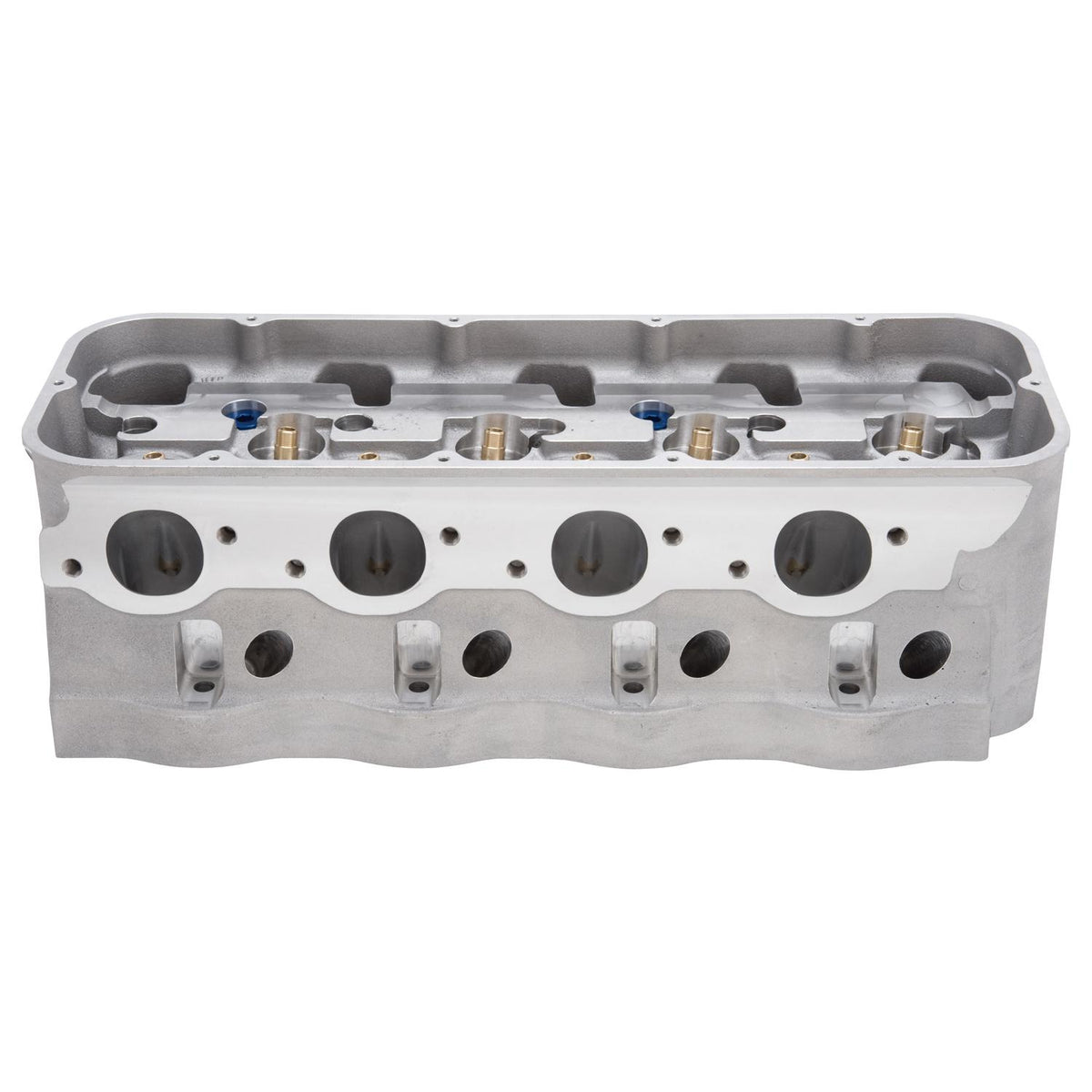

Edelbrock BBC Cylinder Head - 614669
Edelbrock #614669 Pro Port Cylinder Head Features 11 Deg Intake Valve Angle &
is Intended for High Output/Large Cubic Inch Big-Block Chevrolet Racing Engines. HIP treated. Requires Special Valve Train and Sheet Metal Valve Covers.
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
The Edelbrock 614669 Big Block Chevy Big Victor III 11deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. , Pro-Port RAW Features Include: ,Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder ,The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting ,The only head designed specifically to accommodate almost any CNC port shape, size or location ,Offers enough wall thickness for CNC machining to various port dimensions ,In most cases seats and manganese-bronze valve guides are included,Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.
List 1
PRODUCT NOTES:
CNC Ported - No
Combustion Chamber Volume - N/A
Construction Type - Pro-Port Raw
Deck Thickness - 0.5625
EGR Port - No
Exhaust Port Entry - 1.84 in x 1.50
Exhaust Valve Diameter - (Suggested) 1.90
Exhaust Valve Pierce Points (X,Y)(C) - -1.270 in,-0.350
Family - Big Victor
Grade Type - Performance
