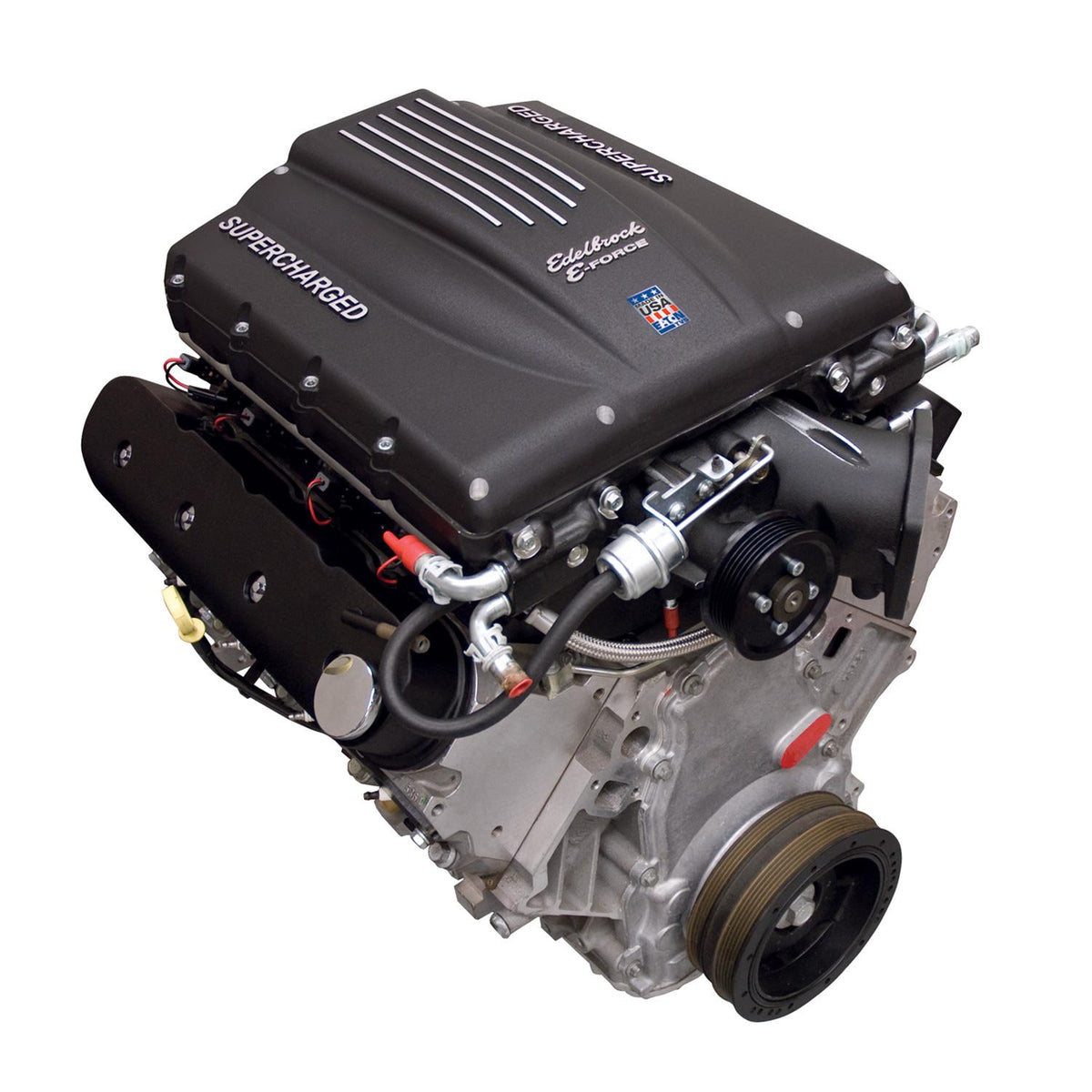

Edelbrock Supercharged GM LS 416 crate engine - 46760
Edelbrock part #46760 Supercharged LS 416 crate engine is a complete 416 c.i.d. supercharged, LS engine, that produces an astounding 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.

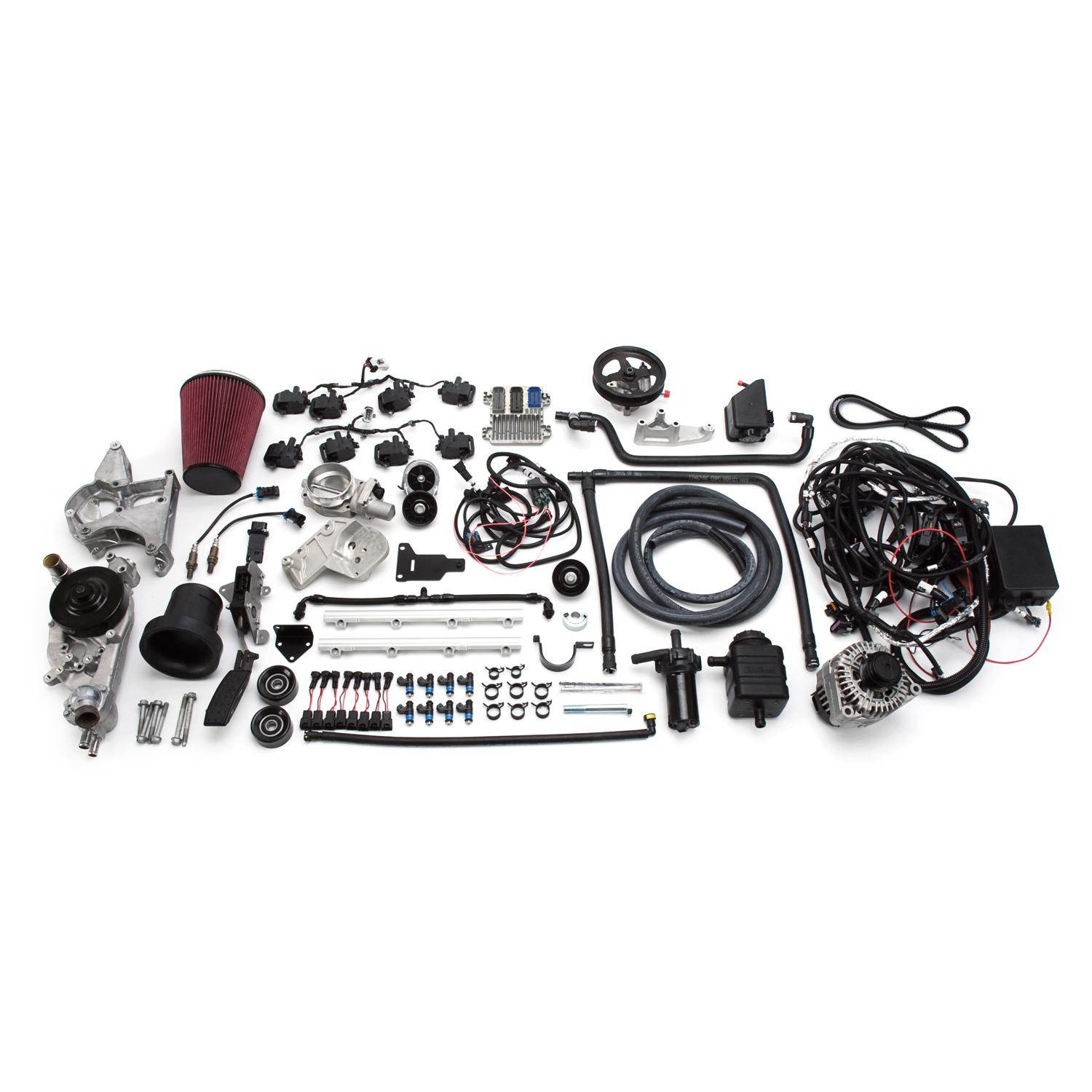

Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. Sitting on top is an Edelbrock supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation. Engine Specifications: Displacement: 416 c.i.d.; Bore: 4.065in; Stroke: 4.000in; Bore: 4.065in; Stroke: 4.0in; Horsepower: 720 hp; Torque: 695 ft-lbs.; Compression: 9.5:1; Block: LS3 Aluminum; Crankshaft: Forged 4340; Pistons: Forged Aluminum18cc; Rods: Forged H-Beam; Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA; Rocker Arms: LS3, 1.7 ratio; Induction: Supercharger System #1540; Cylinder Heads: GM with Edelbrock Valve Springs #5768; Finish: Black powder coated; Warranty: 2-year / Unlimited mileage
List 1
PRODUCT NOTES:
Grade Type - Performance
Lethal Performance is proud to offer the entire line of products!
