Edelbrock Pro-Flo 4+ Efi Engine Management System For # 15-17 Ford Coyote With Tablet - 36160

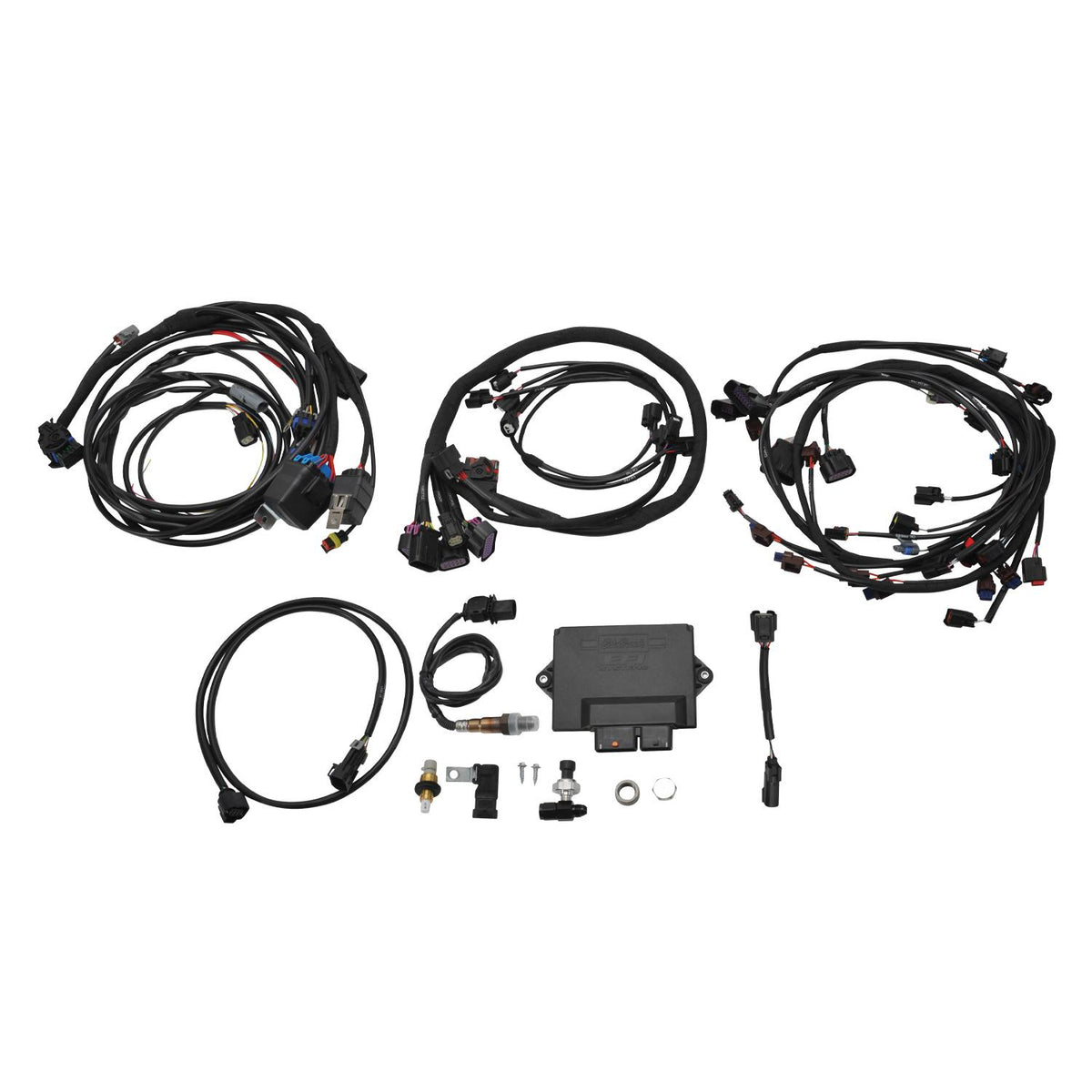

Edelbrock Pro-Flo 4+ kit #36160 is an EFI engine management system that greatly simplifies the process of installing a 2015-2017 Ford Coyote EFI engine into a non-EFI muscle car, truck or hot rod. Pro-Flo 4+ allows you to leave the factory ECU and wiring harnesses at the junkyard by providing a plug-and-play control system that is specially designed for the Gen II Coyote engine, implementing drive-by-wire throttle and variable camshaft timing (VCT) in hot rod engine swap applications. Pro-Flo 4+ kit #36160 includes an ECU with base calibration
OEM-style wiring harnesses
MAP, O2 and IAT sensors. The compact Pro-Flo 4+ ECU provides mounting versatility with a weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock’s E-Tuner 4 software for Android tablets and smartphones. Pro-Flo 4+ for the 2015-2017 Coyote uses a speed-density fueling strategy with an included MAP and IAT sensor. A non-adjustable Alternator Control is set to regulate at 14.5 volts. The Coyote’s factory MAF sensor, air inlet piping and air box are eliminated, allowing unlimited configuration of your air intake design. Pro-Flo 4+ #36160 works with 80mm drive-by-wire throttle bodies as well as the 87mm GT350 throttle body. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. The Pro-Flo 4+ EFI Engine Management System is covered by a 2-year warranty and is backed by the industry’s most extensive technical support team.
Simple plug-and-play installation, no laptop tuning required
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
Works with most intake manifold configurations
Works with stock-size Ford drive-by-wire throttle body or 87mm GT350 throttle body
Improved drivability and throttle response
Founded in 1938, Torrance-based Edelbrock, LLC. is recognized as one of the nation's premier designers, manufacturers and distributors of performance replacement parts for the automotive aftermarket.
