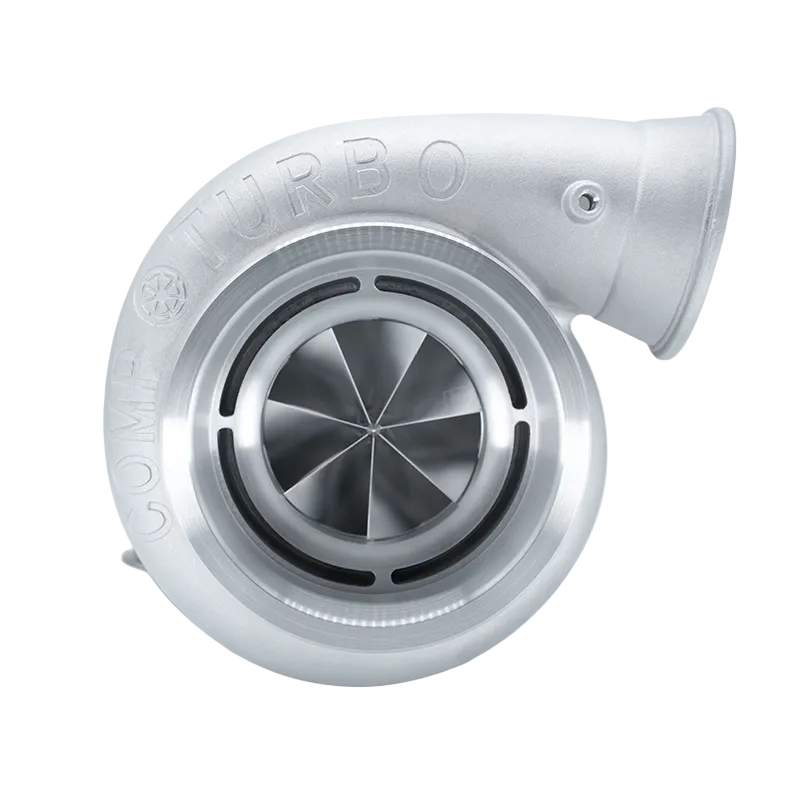

CT8RX-124120 3500HP Triplex Ceramic Oil-Less Air-Cooled Ball Bearing
Reference: 851212-4
Product Description
The CT8RX 124110 3500HP Triplex Ceramic Oil-Less Air-Cooled Ball Bearing Turbocharger a game-changer in forced induction technology. Designed for high-performance street and strip applications, this turbo eliminates the need for oil and water lines, simplifying installation. The unit can be mounted from horizontal to vertical position.
Features
· Patented Triplex Ceramic Oil-Less Air-Cooled System: Ensures ultra-smooth operation, faster spool times, and improved durability.
· Oil-Less Air-Cooled- No Oil or water lines required
· Engineered for High-Performance Applications, Suitable for Both Street and Track Use. Recommended installation engine bay 1/8-1/2 mile racing only. Street use recommended installation mid mount to remote mount turbo systems.
· Lightweight Billet Aluminum Center Section
· CTRX Billet Aluminum Ultra Slim Hub 7+7 Compressor Wheel 124MM
· Inconel 713C High Flow 9 Bladed Turbine Wheel 110MM
· Standard Rotation Configuration
· Available in T6 & V-Band Inlet Turbine Housings
· Fully Rebuildable & Upgradeable
· Maintenance Grease Fitting
· Horizontal & Vertical Installation
· Weight: 51 LBS
Product Specifications
Min HP 1400 - Max HP 3500
Min Displacement (L) 3.0 - Max Displacement (L) 12.0
Compressor Housing Specs
Inlet 8” Outlet 5” A/R: .69
Pressure Port: 1/8 NPT
Compressor Wheel Specs
Compressor Inducer (mm) 124
Compressor Major (mm) 168
Turbine Wheel Specs
Turbine Inducer (mm) 130
Turbine Exducer (mm) 120
Built to Order Notice
All Comp Turbos are built to order. Standard production time is typically 2–3 weeks.
If you require a rush order, please note it in the “Order Notes” section at checkout.
Once received, our customer service team will contact you within 24 hours to confirm your request and advise on the expected ship date.
At Comp Turbo, customer service is our top priority, we will do our absolute best to ensure you receive your turbocharger within your required timeframe.
Recommended Service Interval
· Comp Turbo recommends applying 8 pumps of grease every 3,000 miles under normal street use.
· For extreme street use applications, apply 8 pumps of grease every 1,500 miles
· For extreme drag race applications apply 8 pumps of grease prior to the race event.
2-Year Warranty on All Turbochargers
At Comp Turbo, we stand by the quality and performance of our turbochargers. That's why we're proud to offer a comprehensive 2-Year Warranty, ensuring your investment is protected and your peace of mind is secured.
What’s Covered?
· Defects in materials and workmanship.
· Repair or replacement of your turbocharger at no additional cost during the warranty period.
Why Choose Us?
· Reliability You Can Trust: Each turbocharger is engineered to meet or exceed industry standards.
· Customer-Centric Approach: Your satisfaction is our priority, and we’re here to support you every step of the way.
· Hassle-Free Process: If something goes wrong, our warranty claims process is straightforward and transparent.
Warranty Terms
· The warranty is valid for two years from the purchase date.
· Applies to turbochargers used in accordance with proper maintenance and operation guidelines.
With our 2-Year Warranty, we’re making a statement: quality matters, and our customers deserve nothing less than the best.
