CT5RX-9298 2200HP Triplex Ceramic Oil-Less Water-Cooled Ball Bearing Super-Core
Reference: 539298-3
Product Description
The CT5RX-9298 is a cutting edge 2200HP Triplex Ceramic Ball Bearing Oil-Less Water-Cooled turbocharger designed to deliver high performance, reliability, and versatility. By eliminating traditional oil lines, this advanced unit reduces complexity while maintaining water cooling, ensuring optimal thermal management under extreme conditions.
Features
· Patented Triplex Ceramic Ball Bearing Oil-Less Water-Cooled System: Ensures ultra-smooth operation, faster spool times, and improved durability.
· Engineered for High-Performance Applications, Suitable for Both Street and Track Use. Recommended for engine bay, mid mount and remote mount turbo systems.
· Lightweight Billet Aluminum Center Section
· CTRX Ultra Slim Hub 7+7 Compressor Wheel 92MM
· High Flow 9 Bladed Turbine Wheel 98MM
· Standard Rotation Configuration
· Available in V-Band Inlet SS Turbine Housings
· Fully Rebuildable & Upgradeable
· Water-Cooled Bearing Housing 3/8 NPT In/Out Female Ports for Engine Water-Cooling Connection

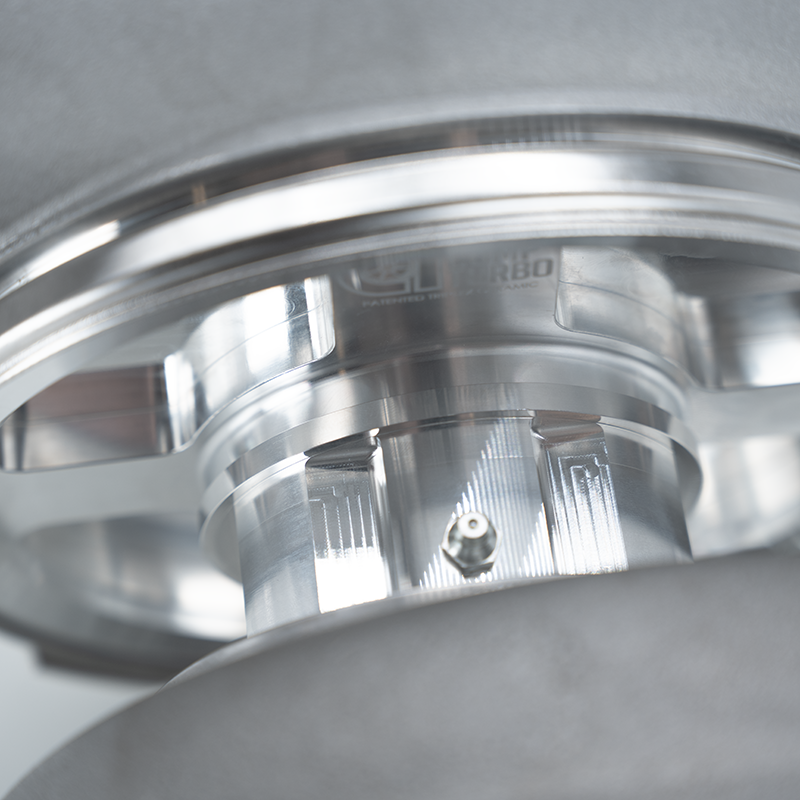

· Maintenance Grease Fitting
· Horizontal & Vertical Installation
· Weight: 30 LBS
Product Specifications
Min HP 800 - Max HP 2200
Min Displacement (L) 2.0 - Max Displacement (L) 8.0
Compressor Housing Specs

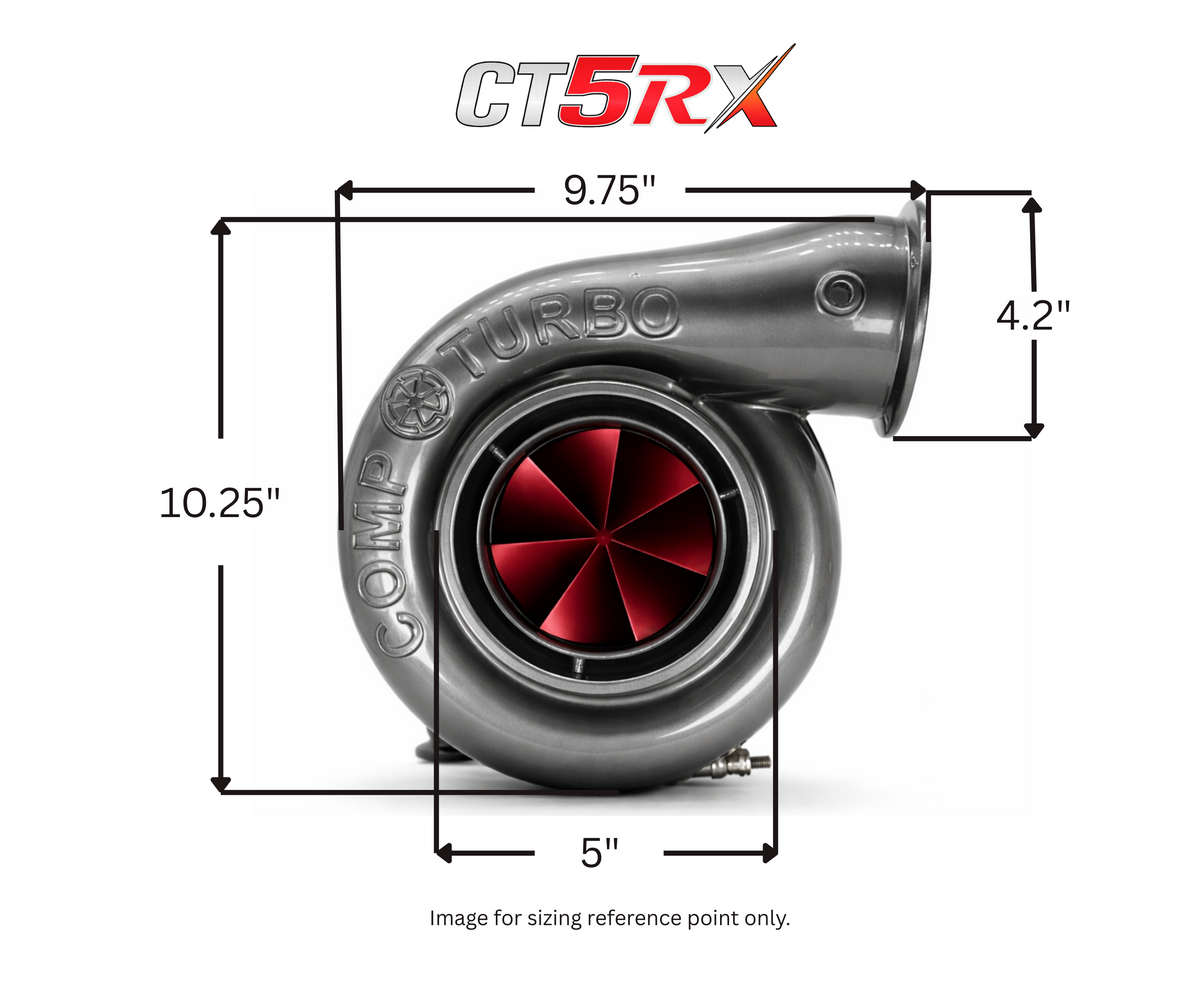

Inlet 5" - Outlet 3.5" A/R: .63
Pressure Port: 1/8 NPT
Compressor Wheel Specs
Compressor Inducer (mm) 92
Compressor Major (mm) 128
Turbine Wheel Specs
Turbine Inducer (mm) 108
Turbine Exducer (mm) 98
Recommended Service Interval
· Comp Turbo recommends applying 8 pumps of grease every 3,000 miles under normal street use.
· For extreme street use applications, apply 8 pumps of grease every 1,500 miles
· For extreme drag race applications apply 8 pumps of grease prior to race event.
2-Year Warranty on All Turbochargers
At Comp Turbo, we stand by the quality and performance of our turbochargers. That's why we're proud to offer a comprehensive 2-Year Warranty, ensuring your investment is protected and your peace of mind is secured.
What’s Covered?
· Defects in materials and workmanship.
· Repair or replacement of your turbocharger at no additional cost during the warranty period.
Why Choose Us?
· Reliability You Can Trust: Each turbocharger is engineered to meet or exceed industry standards.
· Customer-Centric Approach: Your satisfaction is our priority, and we’re here to support you every step of the way.
· Hassle-Free Process: If something goes wrong, our warranty claims process is straightforward and transparent.
Warranty Terms
· The warranty is valid for two years from the purchase date.
· Applies to turbochargers used in accordance with proper maintenance and operation guidelines.
With our 2-Year Warranty, we’re making a statement: quality matters, and our customers deserve nothing less than the best.
