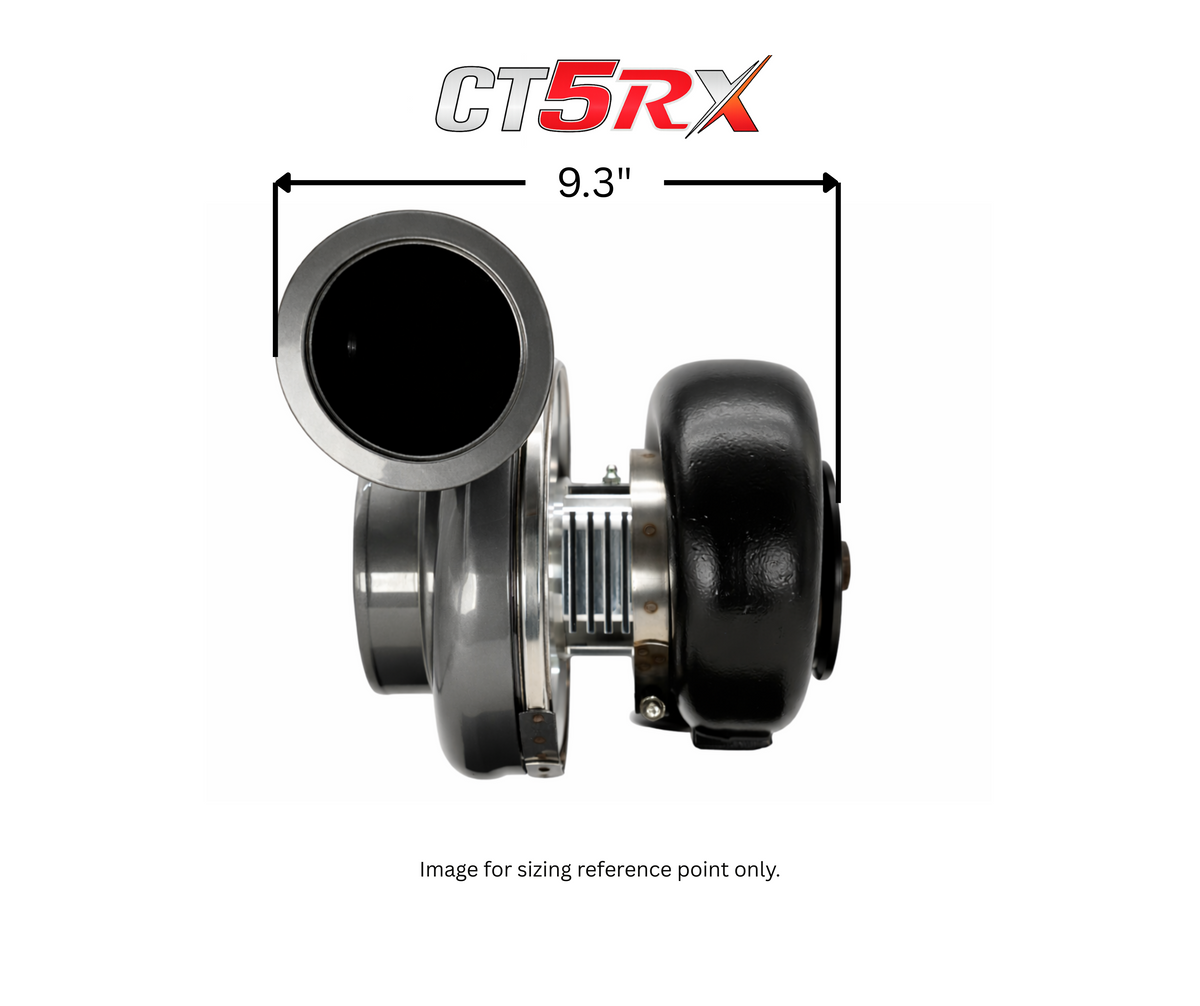

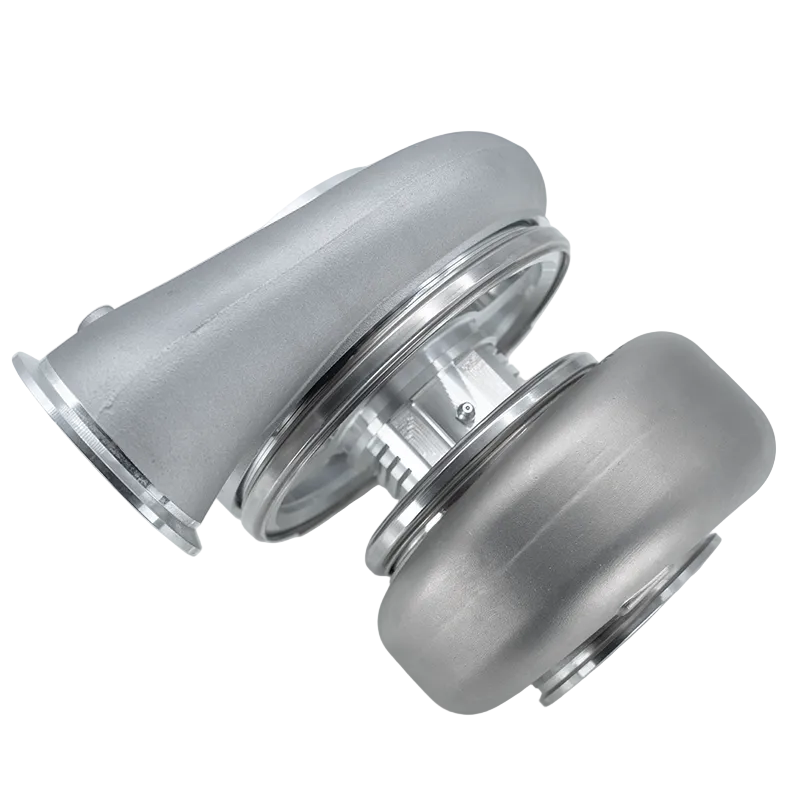

CT5RX-9298 2200HP Triplex Ceramic Oil-Less Air-Cooled Ball Bearing Super-Core
Reference: 539298-4
Product Description
The CT5RX 9298 2200HP Triplex Ceramic Oil-Less Air-Cooled Ball Bearing Turbocharger a game-changer in forced induction technology. Designed for high-performance street and strip applications, this turbo eliminates the need for oil and water lines, simplifying installation. The unit can be mounted from horizontal to vertical position.
Features
· Patented Triplex Ceramic Oil-Less Air-Cooled System: Ensures ultra-smooth operation, faster spool times, and improved durability.
· Oil-Less Air-Cooled- No Oil or water lines required
· Engineered for High-Performance Applications, Suitable for Both Street and Track Use. Recommended installation engine bay 1/8-1/2 mile racing only. Street use recommended installation mid mount to remote mount turbo systems.
· Lightweight Billet Aluminum Center Section
· CTRX Billet Aluminum Ultra Slim Hub 7+7 Compressor Wheel 92MM
· Inconel 713C High Flow 9 Bladed Turbine Wheel 98MM
· Standard Rotation Configuration
· Available in V-Band Inlet SS Turbine Housings
· Fully Rebuildable & Upgradeable
· Maintenance Grease Fitting
· Horizontal & Vertical Installation
· Weight: 30 LBS
Product Specifications
Min HP 800 - Max HP 2200
Min Displacement (L) 2.0 - Max Displacement (L) 8.0
Compressor Housing Specs
Inlet 5” Outlet 3.5” A/R: .63
Pressure Port: 1/8 NPT
Compressor Wheel Specs
Compressor Inducer (mm) 92
Compressor Major (mm) 128
Turbine Wheel Specs
Turbine Inducer (mm) 108
Turbine Exducer (mm) 98
Recommended Service Interval
· Comp Turbo recommends applying 8 pumps of grease every 3,000 miles under normal street use.
· For extreme street use applications, apply 8 pumps of grease every 1,500 miles
· For extreme drag race applications apply 8 pumps of grease prior to the race event.
2-Year Warranty on All Turbochargers
At Comp Turbo, we stand by the quality and performance of our turbochargers. That's why we're proud to offer a comprehensive 2-Year Warranty, ensuring your investment is protected and your peace of mind is secured.
What’s Covered?
· Defects in materials and workmanship.
· Repair or replacement of your turbocharger at no additional cost during the warranty period.
Why Choose Us?
· Reliability You Can Trust: Each turbocharger is engineered to meet or exceed industry standards.
· Customer-Centric Approach: Your satisfaction is our priority, and we’re here to support you every step of the way.
· Hassle-Free Process: If something goes wrong, our warranty claims process is straightforward and transparent.
Warranty Terms
· The warranty is valid for two years from the purchase date.
· Applies to turbochargers used in accordance with proper maintenance and operation guidelines.
With our 2-Year Warranty, we’re making a statement: quality matters, and our customers deserve nothing less than the best.
