CT4R-6262 800HP Dynamic Journal Bearing 360° Thrust Bearing Oil Lubricated
Reference: 426262-1
Product Description
The CT4R-6262 Dynamic 360° Journal Bearing Turbocharger designed to support up to 800HP, this turbo delivers exceptional boost response and durability, making it an ideal choice for street and track.
Features
· 360° Journal Bearing System- Durable and cost-effective performance
· Engineered for High-Performance Applications, Suitable for Both Street and Track Use.
· CTR Billet Aluminum 7+7 Extended Tip Compressor Wheel 62MM
· Inconel 713C High Flow 10 Bladed Turbine Wheel 62MM
· Titanium Bullet Nose Nut
· Fully Rebuildable & Upgradeable
· Weight: 16 LBS
Product Specifications
Min HP 550 - Max HP 800
Min Displacement (L) 2.0 - Max Displacement (L) 4.0
Compressor Housing Specs

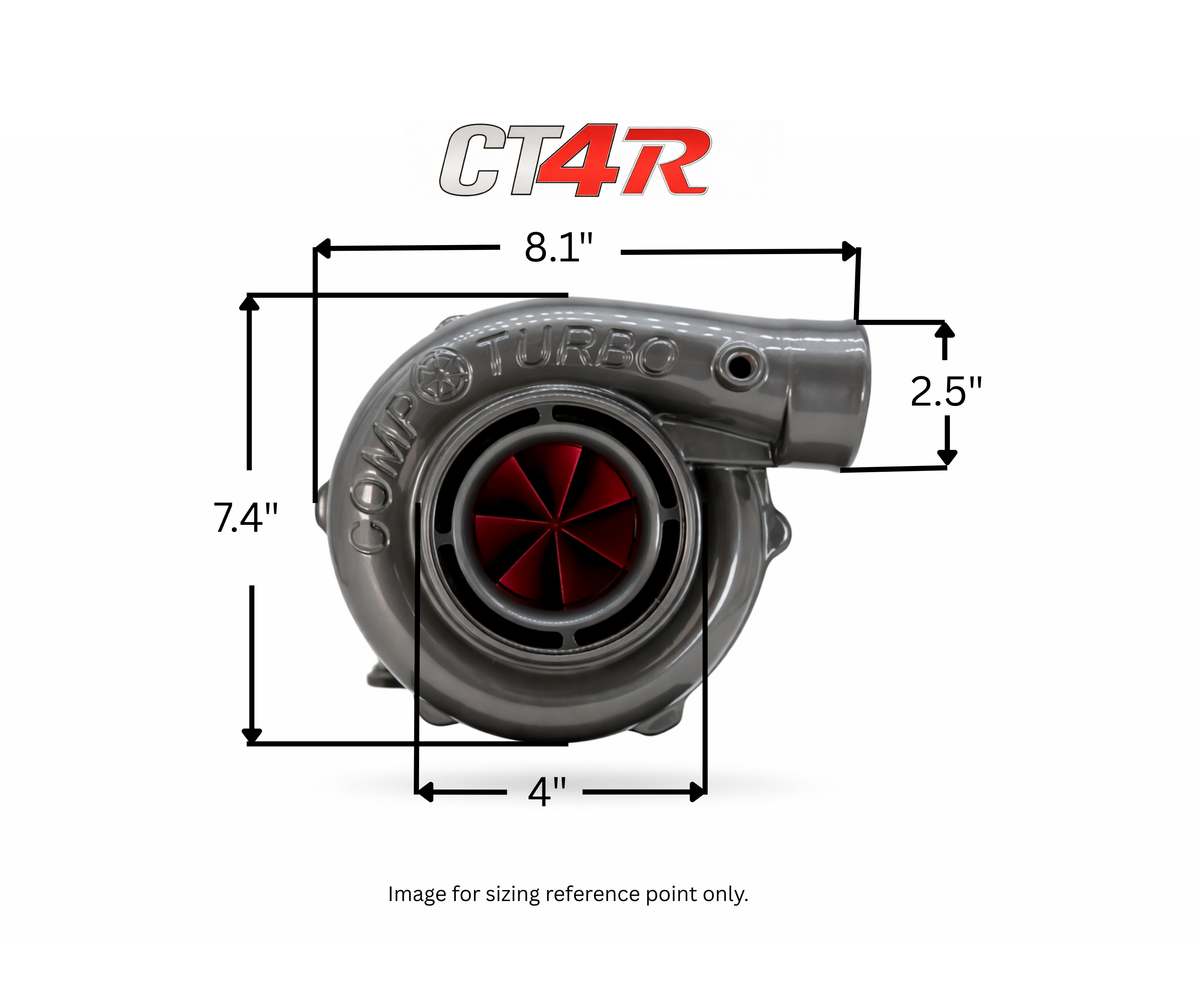

Inlet 4” - Outlet 2.5” A/R: .70
Pressure Port: 1/8 NPT
Compressor Wheel Specs
Compressor Inducer (mm) 62
Compressor Major (mm) 93
Bearing Housing Threads
Oil Feed 1/8 NPT Female
Oil Drain Flange Threads 8MM x 1.25
Turbine Wheel Specs
Turbine Inducer (mm) 68
Turbine Exducer (mm) 62
Built to Order Notice
All Comp Turbos are built to order. Standard production time is typically 2–3 weeks.
If you require a rush order, please note it in the “Order Notes” section at checkout.
Once received, our customer service team will contact you within 24 hours to confirm your request and advise on the expected ship date.
At Comp Turbo, customer service is our top priority, we will do our absolute best to ensure you receive your turbocharger within your required timeframe.
