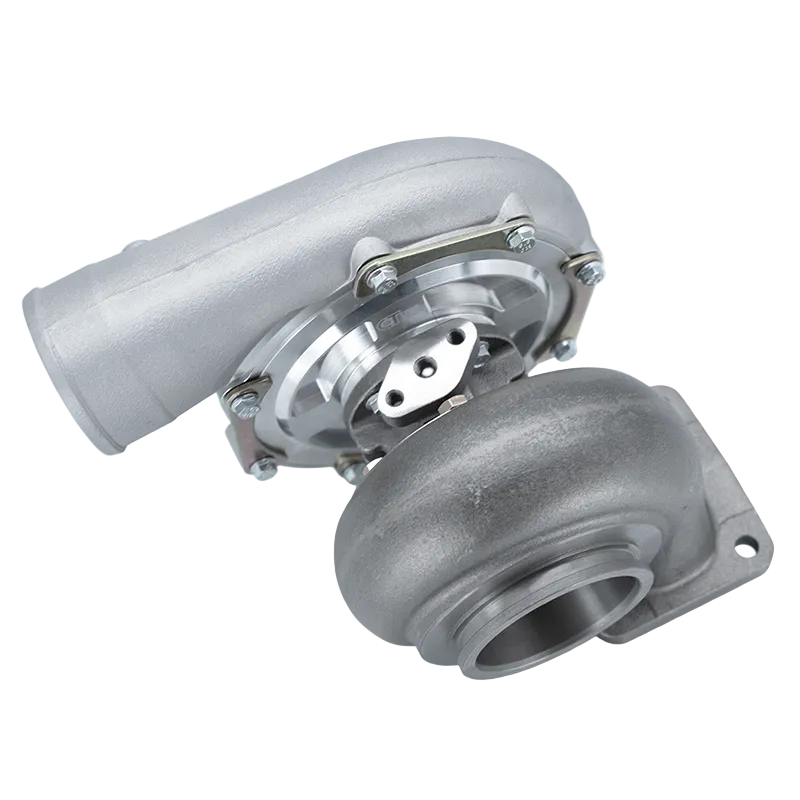

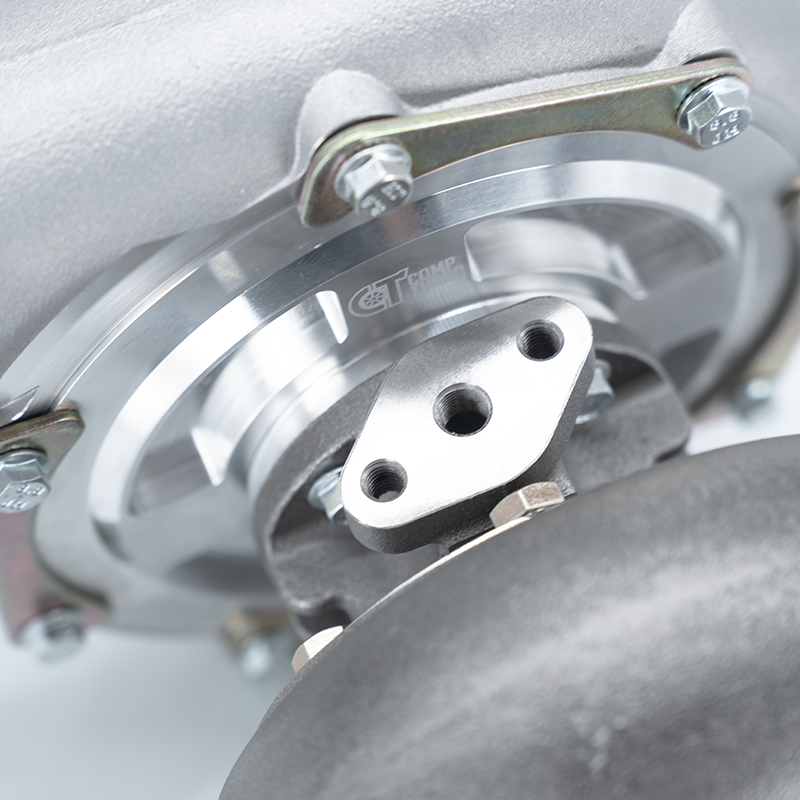

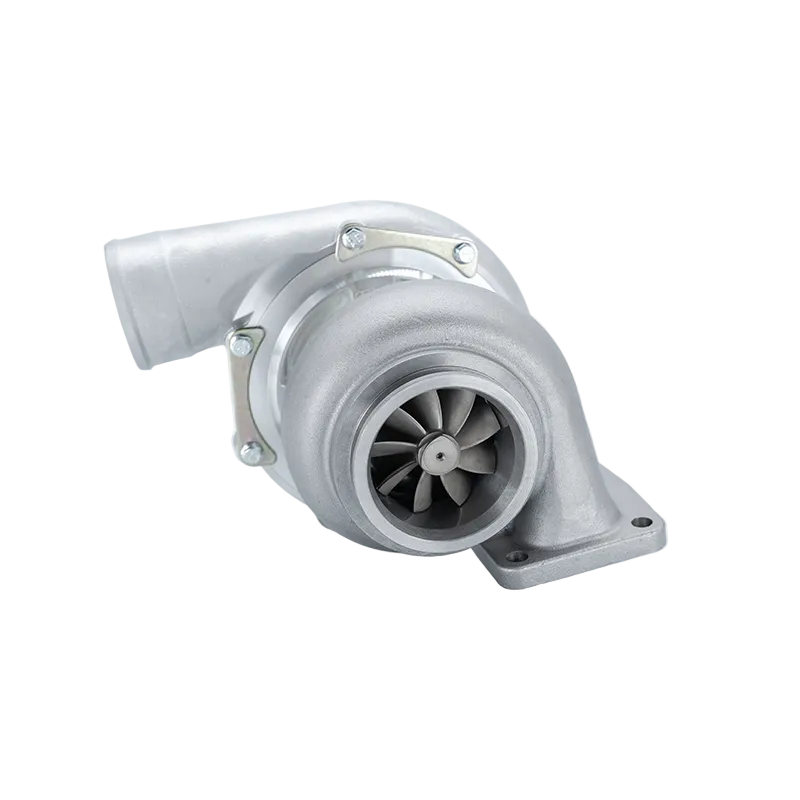

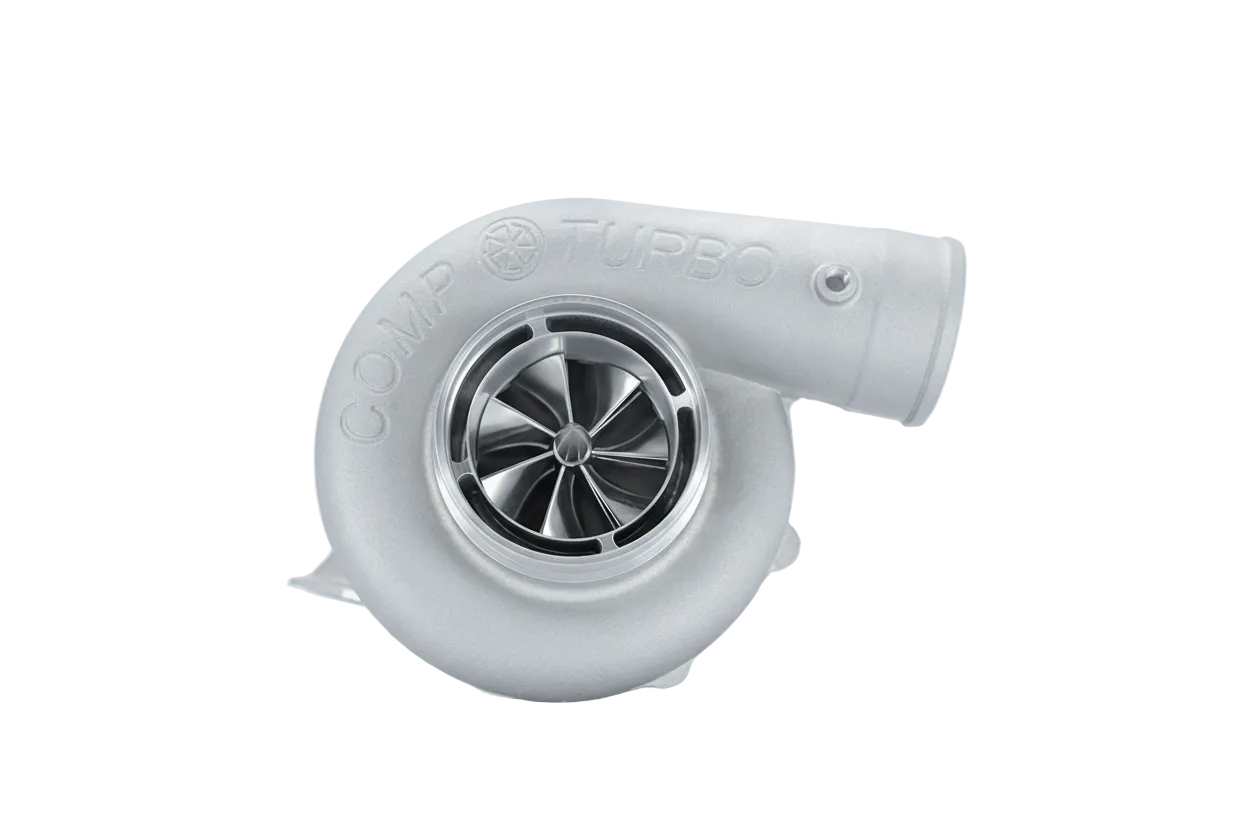

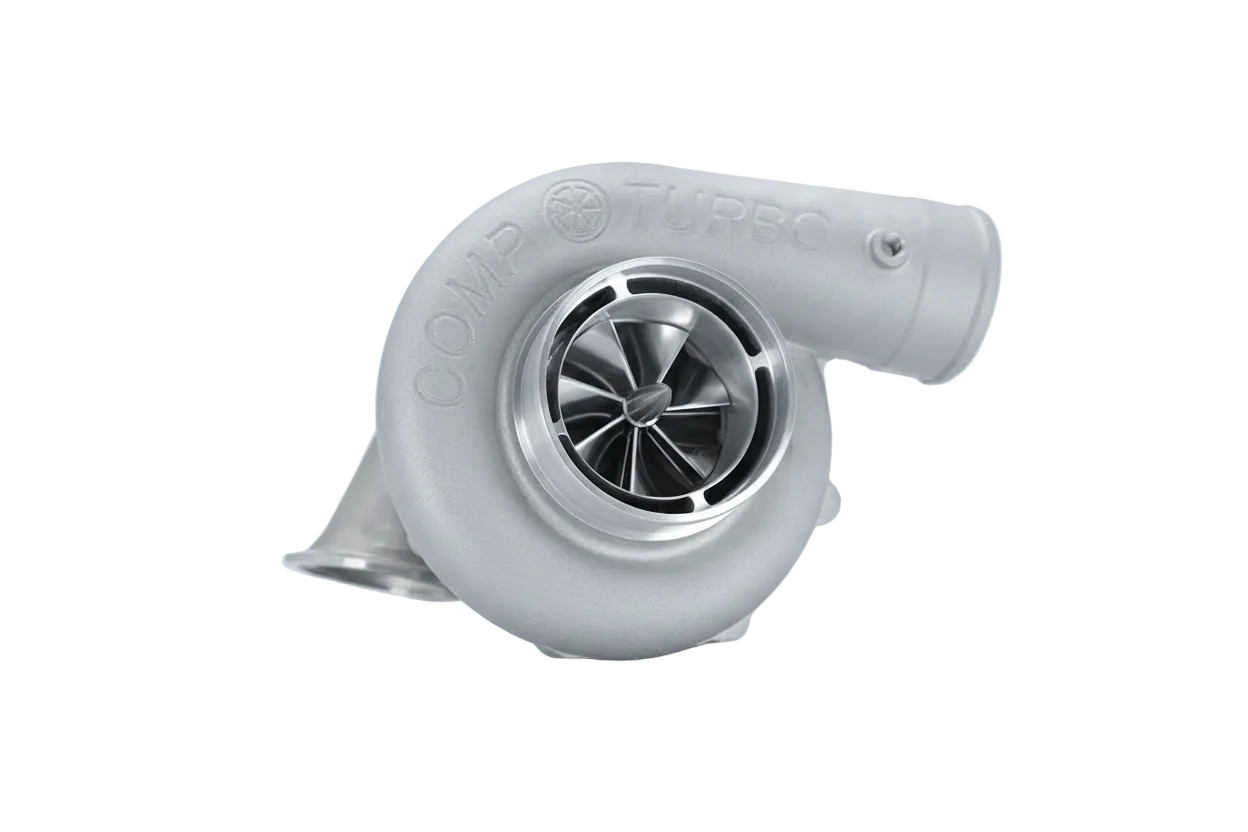

CT43R-7475 1200HP Dynamic Journal Bearing 360° Thrust Bearing Oil Lubricated
Reference: 437475-1
Product Description
The CT43R-7475 Dynamic 360° Journal Bearing Turbocharger designed to support up to 1200HP, this turbo delivers exceptional boost response and durability, making it an ideal choice for street and track
Features
· 360° Journal Bearing System- Durable and cost-effective performance
· Suitable for Both Street and Track Use.
· CTR Billet Aluminum 7+7 Extended Tip Compressor Wheel 74MM
· Inconel 713C High Flow 10 Bladed Turbine Wheel 75MM
· Titanium Bullet Nose Nut
· Fully Rebuildable & Upgradeable
· Weight: 18 LBS
Product Specifications
Min HP 500 - Max HP 1200
Min Displacement (L) 2.0 - Max Displacement (L) 7.0
Compressor Housing Specs
Inlet 4” - Outlet 3” A/R: .85
Pressure Port: 1/8 NPT
Compressor Wheel Specs
Compressor Inducer (mm) 74
Compressor Major (mm) 102
Bearing Housing Threads
Oil Feed 1/8 NPT Female
Oil Drain Flange Threads 8MM x 1.25
Turbine Wheel Specs
Turbine Inducer (mm) 82
Turbine Exducer (mm) 75
Built to Order Notice
All Comp Turbos are built to order. Standard production time is typically 2–3 weeks.
If you require a rush order, please note it in the “Order Notes” section at checkout.
Once received, our customer service team will contact you within 24 hours to confirm your request and advise on the expected ship date.
At Comp Turbo, customer service is our top priority, we will do our absolute best to ensure you receive your turbocharger within your required timeframe.
2-Year Warranty on All Turbochargers
At Comp Turbo, we stand by the quality and performance of our turbochargers. That's why we're proud to offer a comprehensive 2-Year Warranty, ensuring your investment is protected and your peace of mind is secured.
What’s Covered?
· Defects in materials and workmanship.
· Repair or replace your turbocharger at no additional cost during the warranty period.
Why Choose Us?
· Reliability You Can Trust: Each turbocharger is engineered to meet or exceed industry standards.
· Customer-Centric Approach: Your satisfaction is our priority, and we’re here to support you every step of the way.
· Hassle-Free Process: If something goes wrong, our warranty claims process is straightforward and transparent.
Warranty Terms
· The warranty is valid for two years from the purchase date.
· Applies to turbochargers used in accordance with proper maintenance and operation guidelines.
With our 2-Year Warranty, we’re making a statement: quality matters, and our customers deserve nothing less than the best.
