CT2RX-4647 500HP Triplex Ceramic Oil-Less Water-Cooled Ball Bearing
Reference: 234647-3
Product Description

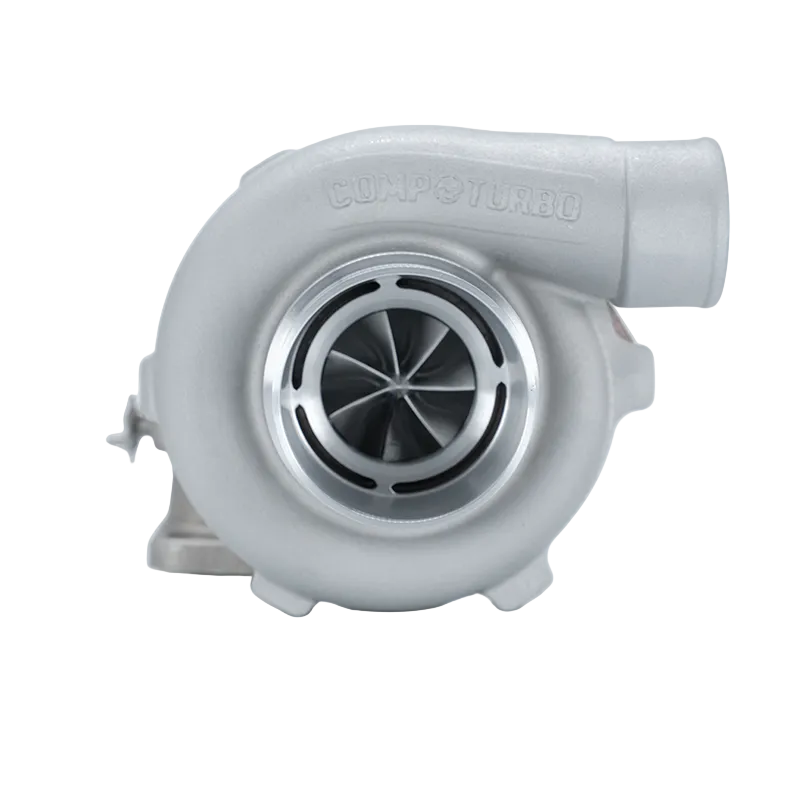

The CT2RX 4647 is a cutting edge 500HP Triplex Ceramic Ball Bearing Oil-Less Water-Cooled turbocharger designed to deliver high performance, reliability, and versatility. By eliminating traditional oil lines, this advanced unit reduces complexity while maintaining water cooling, ensuring optimal thermal management under extreme conditions.
Features
· Patented Triplex Ceramic Ball Bearing Oil-Less Water-Cooled System: Ensures ultra-smooth operation, faster spool times, and improved durability.
· Engineered for High-Performance Applications, Suitable for Both Street and Track Use. Recommended for engine bay, mid mount and remote mount turbo systems.
· Lightweight Billet Aluminum Center Section
· CTRX Ultra Slim Hub 7+7 Compressor Wheel 46MM
· High Flow 9 Bladed Turbine Wheel 47MM
· Standard Rotation Configuration
· Available in T2 & V-Band Inlet Turbine Housings
· Fully Rebuildable & Upgradeable
· Water-Cooled Bearing Housing 3/8 NPT In/Out Female Ports for Engine Water-Cooling Connection
· Maintenance Grease Fitting
· Horizontal & Vertical Installation
· Weight: 10 LBS
Product Specifications
Min HP 300 - Max HP 500
Min Displacement (L) 1.4 - Max Displacement (L) 2.5
Compressor Housing Specs

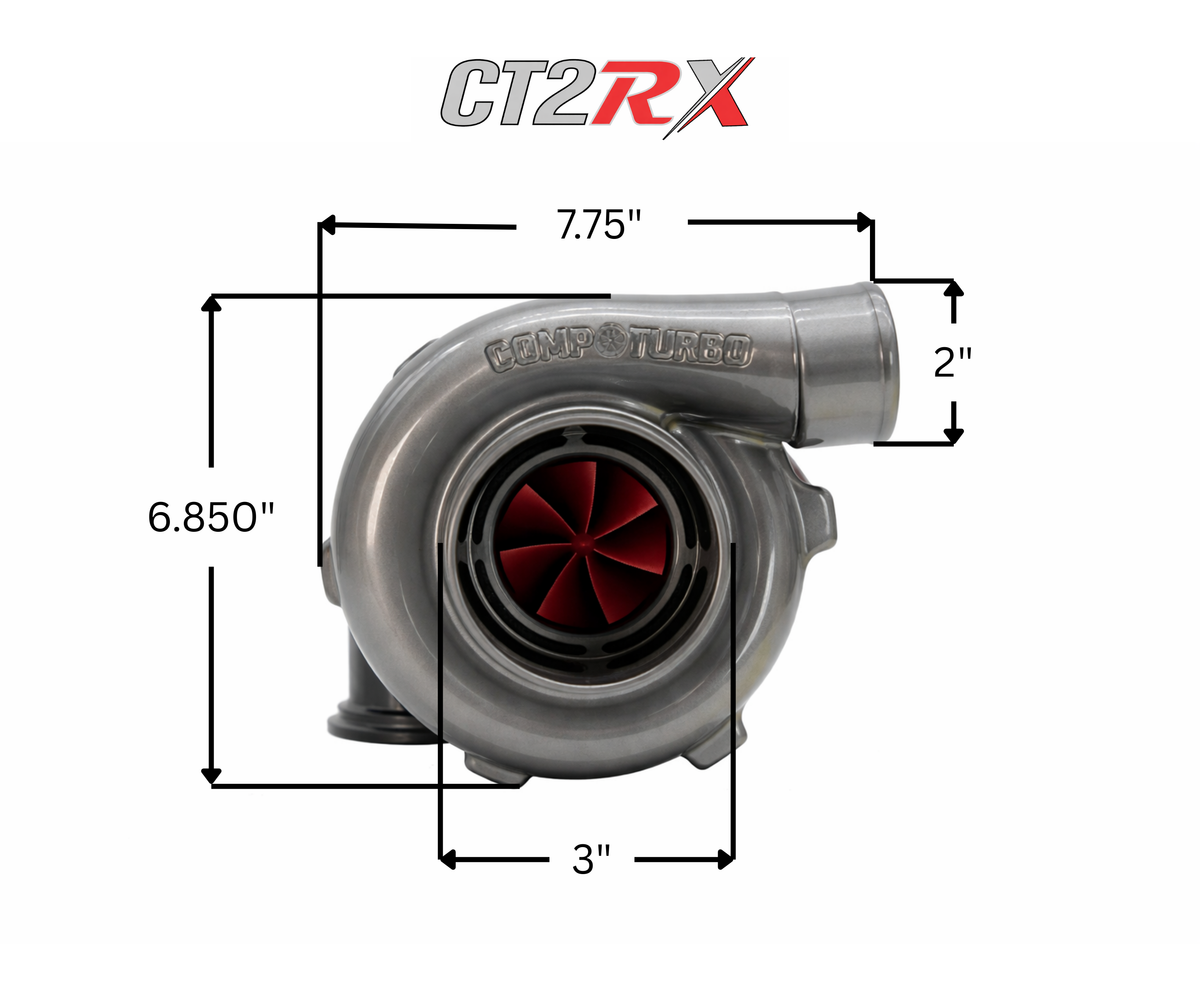

Inlet 3" - Outlet 2" A/R: .60
Compressor Wheel Specs
Compressor Inducer (mm) 46
Compressor Major (mm) 71
Turbine Wheel Specs
Turbine Inducer (mm) 54
Turbine Exducer (mm) 47
Built to Order Notice
All Comp Turbos are built to order. Standard production time is typically 2–3 weeks.
If you require a rush order, please note it in the “Order Notes” section at checkout.
Once received, our customer service team will contact you within 24 hours to confirm your request and advise on the expected ship date.
At Comp Turbo, customer service is our top priority, we will do our absolute best to ensure you receive your turbocharger within your required timeframe.
Recommended Service Interval
· Comp Turbo recommends applying 8 pumps of grease every 3,000 miles under normal street use.
· For extreme street use applications, apply 8 pumps of grease every 1,500 miles
· For extreme drag race applications apply 8 pumps of grease prior to race event.
