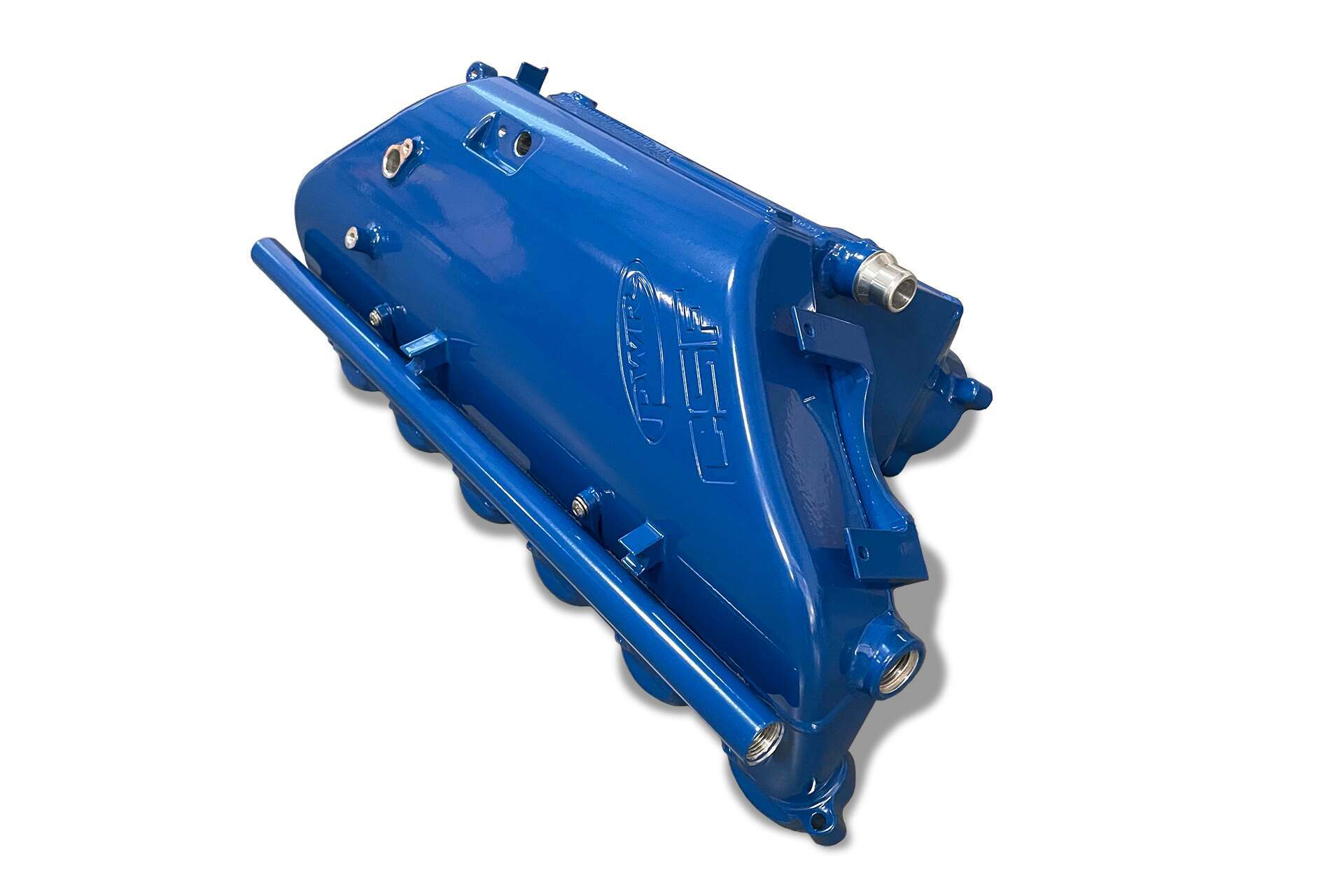

CSF Bmw S58 "Level-Up" Charge Air Cooler Manifold - Custom Finish - 8233C
CSF worked closely with its strategic manufacturing partner PWR and Local R&
D Partner Studio RSR on the development of the "Level-Up" Charge-Air-Cooler Manifold. The relationship with PWR offers CSF access to exclusive cutting edge Formula 1 grade technology, while Studio RSR offers expertise in real world race experience and hands-on mechanical knowledge of the S58 platform. The manifold is made from the highest grade billet aluminum. Each part is CNC machined with the highest precision and TIG welded to form a single piece charge-air-cooler intake manifold. The CSF manifold is capable of achieving the highest levels of performance and withstanding extreme boost levels. The ultra high performance liquid-to-air F1 grade core is made by PWR. This Bar &
Plate core is pressure tested to 120 psi to ensure it will withstand the high boost levels motorsports race teams can throw at it. Feedback from the community has shown the OEM core (crimped onto plastic end tanks) is prone to failure starting at just 27 pounds (psi) of boost pressure.
Adding power always requires more fuel, so the CSF Manifold features a top feed port injection system. The intake runners have the injector bungs machined directly into them and the kit includes both the Fuel Rail and CNC Machined Block-Off Caps for non-use. In addition, the manifold also has integrated ports on each runner for Nitrous or Methanol Injection. Individual ports for each runner allows for maximum control and tuning. The included Thermal Rejection Manifold Spacer is made from KIYLEX, a revolutionary polymer that is as strong as aluminum and withstands temps up to 1100'F. The spacer insulates the manifold from conductive heat transfer from the cylinder head. This reduces manifold temps which helps lower Intake Air Temps (IATs), improves efficiency, and combats heat soak.
The CSF #8233C comes in your choice of custom color or finish. Also available in raw billet aluminum (CSF #8233) &
Thermal Black Heat Dispersion (CSF #8233B)
Reduced Intake Air Temperatures (IATs) compared to OEM
CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.
Integrated port injection with fuel rail (provided with block-off bungs if not running port injection)
Integrated nitrous ports (provided with block-off bungs if not running nitrous)
Integrated hose stand-offs for proper routing of EVAP hoses across manifold
Integrated coolant reservoir mounting locations on rear of manifold for perfect fitment
Various wire harness provisions for perfect routing of wiring harness around manifold
Integrated bleeder screw
OEM teeth on intake manifold flange for secure seating of gaskets
Machined coolant hose quick connects
Removable machined engine cover pin for perfect fitment with engine cover
Custom Finish
Less pressure drop compared to OEM core
All necessary brackets, hardware, and instructions to install
Limited Lifetime Warranty
Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core
High performance bar/plate intercooler core by PWR pressure tested to 120psi
KYLEX thermal spacer for the best resistance to heat soak of the manifold.
Perimeter pad machined into top of intake manifold for up to 3 additional sensors
Rear of the intake manifold has been clearance for easy access to the engine oil filter
CNC front wire harness bracket for OEM fitment and slotted easy installation
Upper crank case ventilation adapter and Lower crank case ventilation adapter
Get it all from CSF! With over 3000 models to chose from, CSF's coverage is second to none.When you choose CSF, you are dealing directly with the manufacturer, not a broker or an importer. CSF's factories are ISO certified, and are OE suppliers to many US, German and Asian manufacturers. When you purchase a CSF product, you can be rest assured that it has been manufactured on the same production lines with the same high quality standards as their OE customers. Every single radiator is subject to rigorous testing procedures such as Hydrostatic Testing, Vacuum decaying and life cycle testing, and is designed to always be a "drop-in fit".
