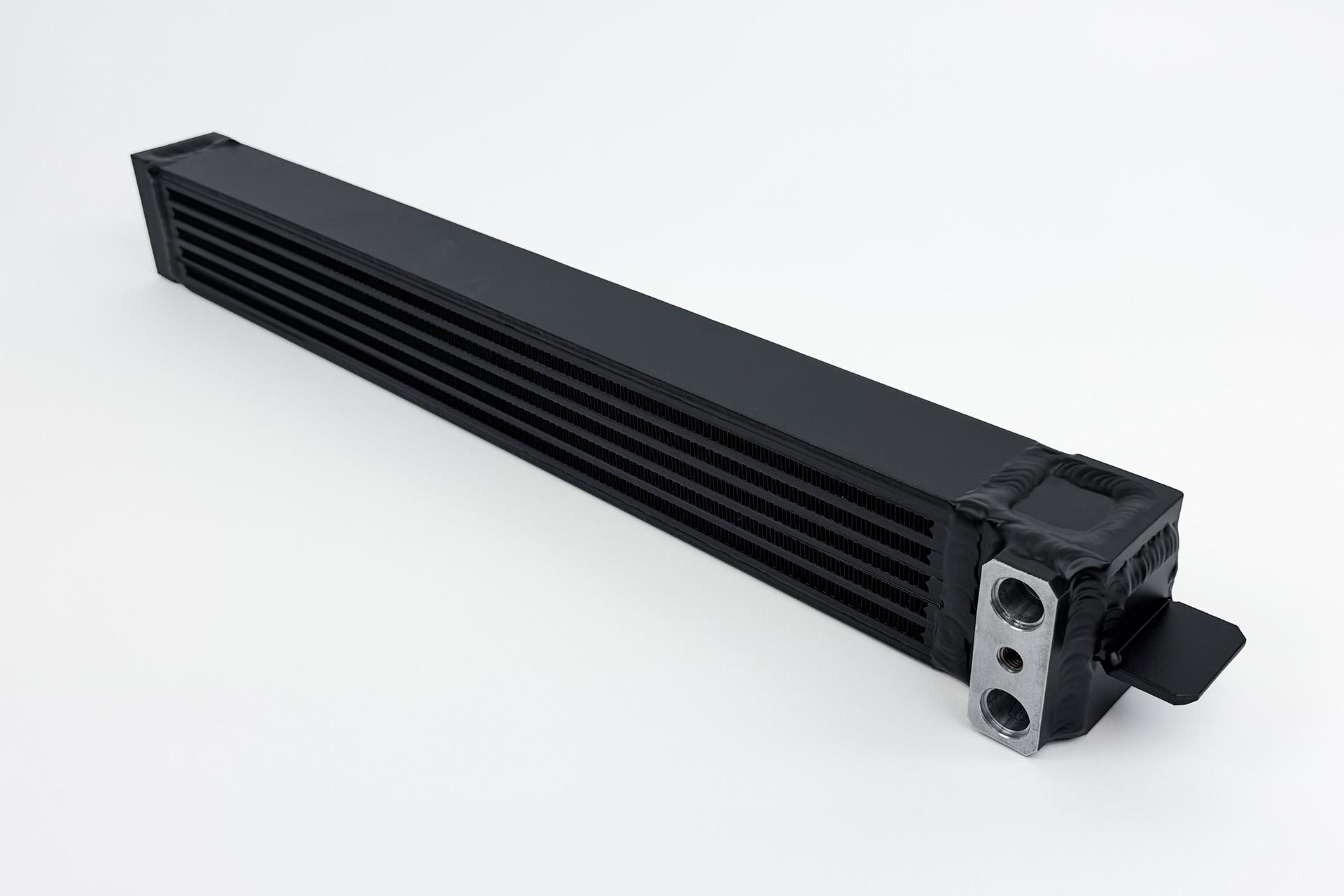

CSF Csf E36 M3/3-Series Euro Spec Oil Cooler (1992-2002 BMW Fitment) - 8301
The E36 Euro Spec Oil Cooler is exactly what it sounds like. E36 M3's in Europe came equipped with an oil cooler that mounted under the radiator and was a popular upgrade for E36 owners in the US. Unfortunately BMW discontinued the oil cooler and they have become harder and harder to find. BimmerWorld reached out to CSF to design a replacement unit that would fit exactly like the factory unit but perform even better.
The original oil cooler used Tube and Fin construction. While this is acceptable for cooling performance it is not a very robust design. CSF chose to go with a Bar and Plate construction to improve durability. While there is plenty of ground clearance the cooler is low enough to see some potential abuse on the track. CSF wanted to offer that extra durability of a Bar and Plate cooler for track enthusiasts and those running their car on the lower side.
The CSF Oil Cooler was designed to be a 1 to 1 replacement for the OEM unit in terms of fitment. This means it uses the same OE mounting points hardware and lines. For a EU E36 M3 or USMD Z3M the oil cooler will be a drop-in fit installation. E36 models that were not equipped with the oil cooler from the factory can use the BimmerWorld Euro Oil Cooler Bracket Kit which can attach to an OEM spec Radiator or the CSF #3054.
Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Fully TIG-Welded Extruded End Tank Design for Superior Reliability &
Durability
Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable &
Durable Oil Cooler Available
6 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
Designed to Work with OE &
CSF All-Aluminum Radiator (CSF #3054)
OE Style Black Finish
Accepts Factory Oil-Line Connections
Mounts using OE Brackets or BimmerWorld Bracket Kit (#TEN3631201)
Uses OE E36 Euro Spec Oil Cooler Lines (Pipe) - BMW PN: 17212227235
Get it all from CSF! With over 3000 models to chose from
CSF's coverage is second to none.When you choose CSF
you are dealing directly with the manufacturer
not a broker or an importer. CSF's factories are ISO certified
and are OE suppliers to many US
German and Asian manufacturers. When you purchase a CSF product
you can be rest assured that it has been manufactured on the same production lines with the same high quality standards as their OE customers. Every single radiator is subject to rigorous testing procedures such as Hydrostatic Testing
Vacuum decaying and life cycle testing
and is designed to always be a "drop-in fit".
