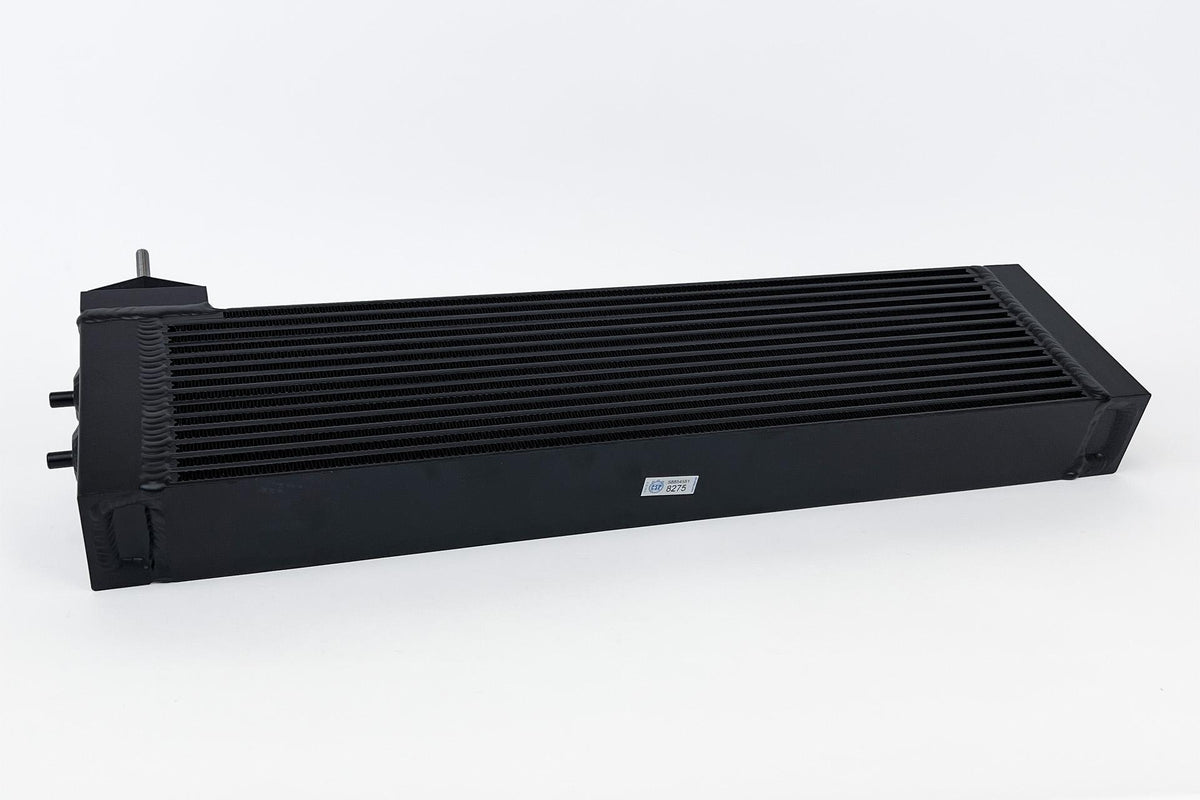

CSF Bmw E60 M5 / E6X M6 Race-Spec Engine Oil Cooler - 8275
CSF has received a lot of requests for an oil cooler upgrade for the E60 M5 and E6X M6. As the platform ages there are more cooling systems that need to be overhauled. This also presents a great opportunity to upgrade and keep your M5/M6 running better than ever. The CSF Design was inspired by the RPI SV1 design that was discontinued some time ago. This unit was highly regarded as the go to upgrade option for years and a must have for those who tracked or supercharged their M5/M6.
The factory radiator for the E60 M5 and E6X M6 are pretty nice all aluminum units. While they have proven to be fairly robust, age and additional power tend to push them over the edge. Owners who have superchargers tend to have the most issues with their radiators. Between the extra heat produced with forced induction and the heat exchanger mounting in front of the radiator, the factory radiator is working overtime. The E6X models are also getting close to 20 years old and entering the "future classic" stage of life with many owners doing restorations and updates. Anyone who has restored/updated an older car knows the value of having upgraded parts that are as efficient as possible.
The original OE oil cooler from BMW is an all metal design which would make you think it would be fairly robust. However, there are several weak spots in the design that tend to cause leaks. The CSF Race-Spec design reinforces the weak points, especially around the feed and return lines. CSF's solid line connection block can handle any abuse thrown at it while the reinforced and braced return tube is rock solid. CSF also upgraded the more fragile Tub/Fin core to a robust and durable Bar/Plate design. The core is 40% larger than the factory unit with 2 additional rows of oil cooling and much thicker core (63mm vs OE 45mm). This offers superior cooling capacity and volume for the oil system. TIG welded end tanks round out the slew of upgrades creating a much stronger connection than the factory brazed construction.
Whether your M5/M6 is a casual cruiser or a track monster, everyone can benefit from an upgraded oil cooler. Supercharged S85's will benefit the most though as the added power comes at a cost of more heat. High oil temperatures can quickly send a car into limp mode and as well as lead to catastrophic engine damage. CSF new engine oil cooler is also a great preventative maintenance upgrade to avoid costly repairs and extend the longevity of your vehicle.
High Efficiency &
Rugged Durability Bar/Plate Design
CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.
Aero-Flow
Cast End Tanks with 100% Tig Welded Construction
Satin Black Finish for Extreme Protection Against Corrosion and Debris
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet Connection
Requires minor trimming of the plastic shroud to install (instructions included)
Individually Leak and Pressure Tested
2-Year Limited Warranty
Get it all from CSF! With over 3000 models to chose from, CSF's coverage is second to none.When you choose CSF, you are dealing directly with the manufacturer, not a broker or an importer. CSF's factories are ISO certified, and are OE suppliers to many US, German and Asian manufacturers. When you purchase a CSF product, you can be rest assured that it has been manufactured on the same production lines with the same high quality standards as their OE customers. Every single radiator is subject to rigorous testing procedures such as Hydrostatic Testing, Vacuum decaying and life cycle testing, and is designed to always be a "drop-in fit".
