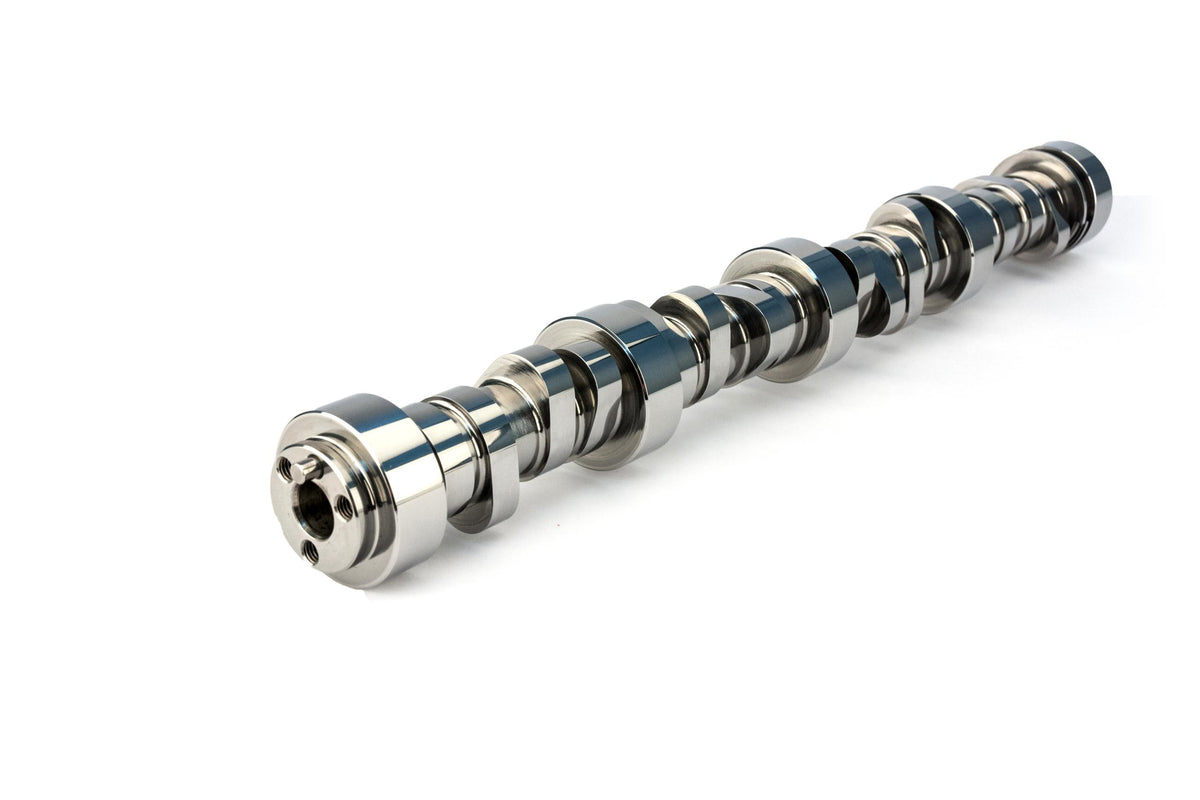

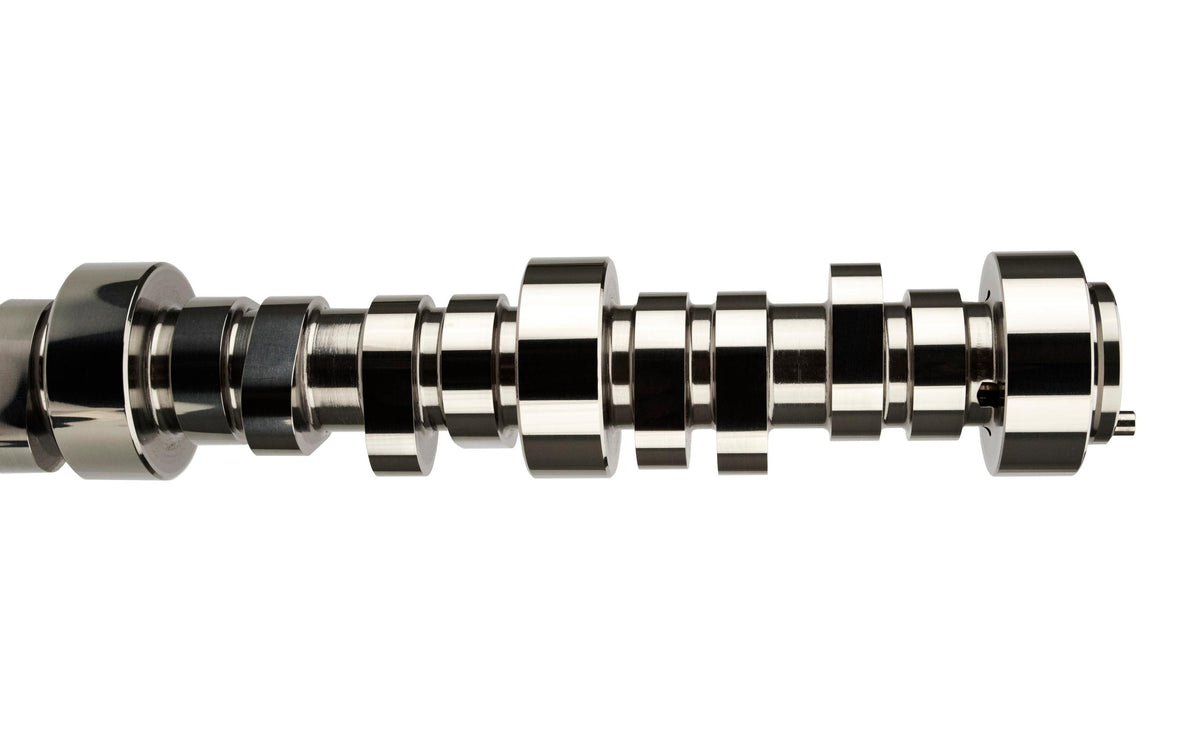

Comp Cams Stage 2 LST Max HP Solid Roller Cam for 3-Bolt LS w/ Aftermarket Pistons - 54-317-11
Best maximum power LS drag race solid roller. Requires aftermarket pistons w/ valve reliefs. Drag race power with street durability. Stable to 7500 RPM w/ CK & MK Kits.
Stage 2 LST Max HP Solid Roller Cam for 3-Bolt LS w/ Aftermarket Pistons
PRODUCT NOTES:
Camshaft Series - Low Shock Technology
Usage - Street/Strip, Drag Race
Cam Type - Solid Roller
Grind Number - 298LGW13
Basic Operating RPM Range - 3,600-7,500 R3
Intake Duration at .050 Inch Lift - 258 DD
Exhaust Duration at .050 inch Lift - 272 DD
Advertised Intake Duration - 298 DD
Advertised Exhaust Duration - 312 DD
Lobe Separation - 113 DD
Intake Valve Lift - 0.672 IN
Exhaust Valve Lift - 0.668 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Billet Steel
Title - Stage 2 LST Max HP Solid Roller Cam for 3-Bolt LS w/ Aftermarket Pistons
Lifter Type - Solid Roller
CK-Kit Upgrade - CK54-317-11
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Engine Family - GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Stage - 2
MK-Kit Upgrade - MK54-317-11
Recommended Upgraded Stock Rocker Arms - 1477-16 (LS1), 1478-16 (LS3), 1479-16 (LS7)
Recommended Cold Lash Setting - Intake - 0.007 IN
Recommended Max-Lift BSR Shaft Rocker System - 1981-16 (LS1), 1982-16 (LS3), 1983-16 (LS7)
Recommended Cold Lash Setting - Exhaust - 0.009 IN
Recommended Cam Install Kit for LS7 - 5622
Recommended Cam Install Kit for non-LS7 - 5621
Amazon ASIN - B07MRD45PJ
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
