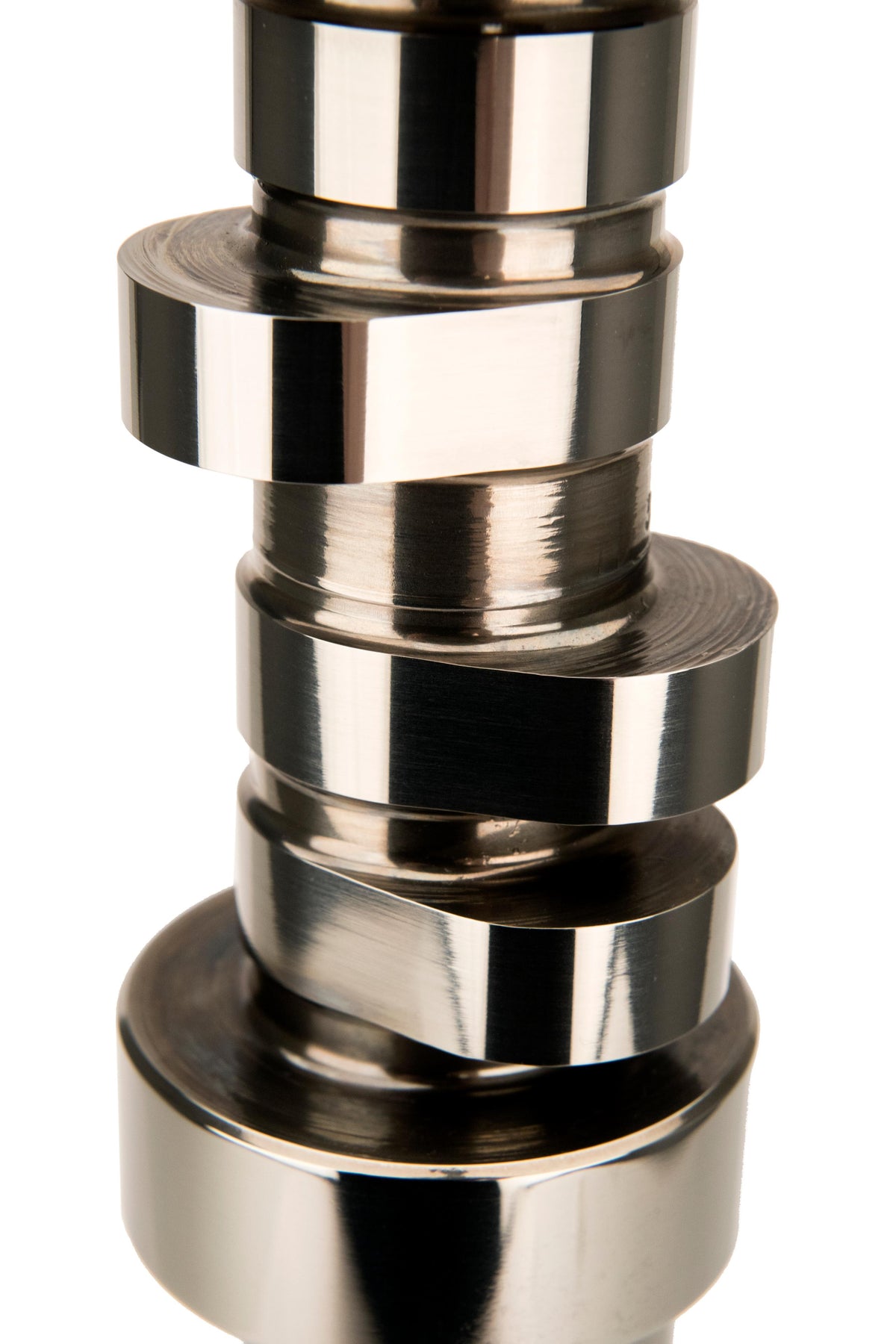

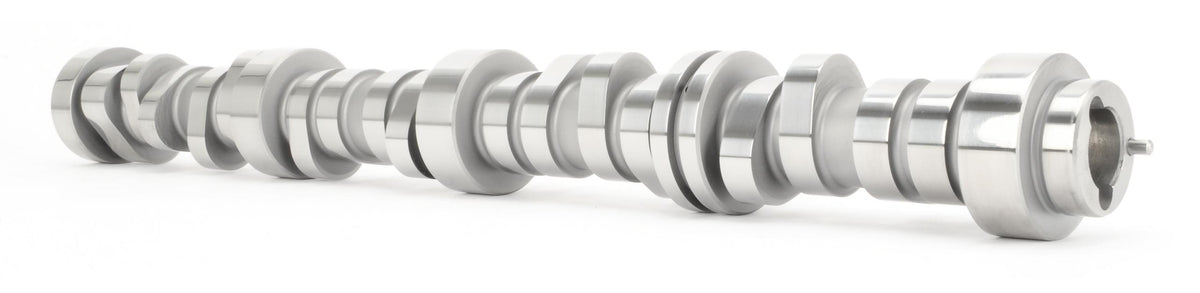

Comp Cams Stage 1 LST Cam for LT1 Camaro and Corvette w/ AFM Delete - 224-300-13
Broad powerband with best average torque & HP in LT1. Includes higher volume direct injection lobe (+38%). 7400 RPM stability w/ CK & MK Kits. AFM delete & VVT limiter.
Stage 1 LST Cam for LT1 Camaro and Corvette w/ AFM Delete
PRODUCT NOTES:
Camshaft Series - Low Shock Technology
Usage - Street / Performance
Cam Type - Hydraulic Roller
Grind Number - 282LMH16
Basic Operating RPM Range - 2,000-7,200 R3
Intake Duration at .050 Inch Lift - 227 DD
Exhaust Duration at .050 inch Lift - 238 DD
Advertised Intake Duration - 282 DD
Advertised Exhaust Duration - 287 DD
Lobe Separation - 116.5 DD
Intake Valve Lift - 0.65 IN
Exhaust Valve Lift - 0.639 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Billet Steel
Title - Stage 1 LST Cam for LT1 Camaro and Corvette w/ AFM Delete
Lifter Type - Hydraulic Roller
Engine Family - GM GEN V LT w/ VVT w/o AFM 2014-Present
CK-Kit Upgrade - CK224-300-13
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Direct Injection Fuel Pump Lobe Output - 38% More than Stock
Stage - 1
MK-Kit Upgrade - MK224-300-13
Recommended Cam Install Kit for Camaro - 5624
Recommended Cam Install Kit for Corvette - 5626
Amazon ASIN - B07MDDJ5RC
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
Lethal Performance is proud to offer the entire line of Comp Cams products!
For more than 35 years, the COMP Cams® mission has never changed: to produce the highest-performing products possible, provide customers with superior service, and to lead the industry in technological development. While the COMP Performance Group™ has grown to multiple companies and hundreds of employees, we still retain the competitive spirit and desire to be the very best that has positioned COMP Cams® as the absolute leader in valve train components.
With COMP Cams®, there is no compromise - you're in first place.
