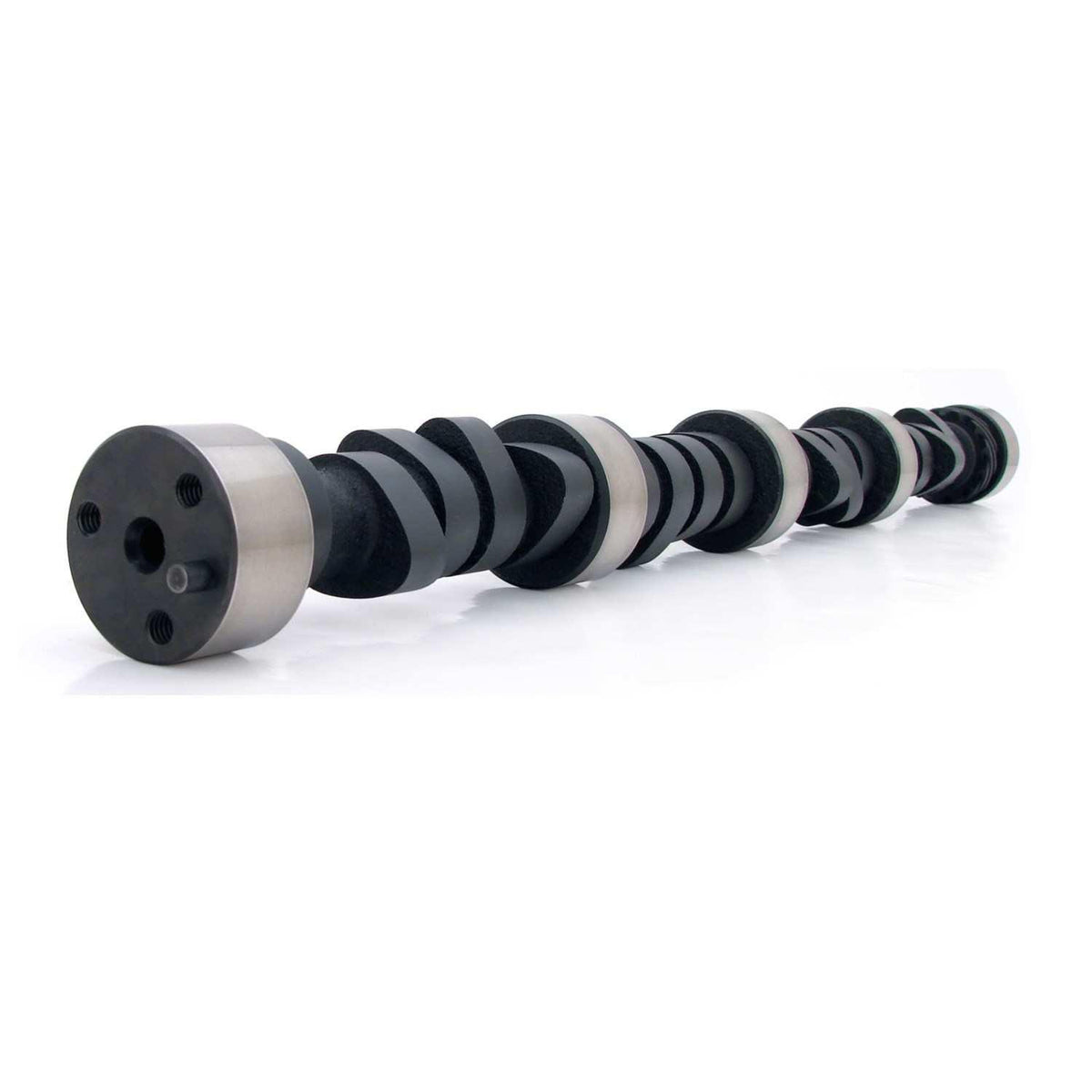

Comp Cams Xtreme Energy NIT 224/230 Hydraulic Flat Cam for Chevrolet Big Block 396-454 - 11-242-20
Good for street machines, slightly rough idle, stock converter will work but best with 1800+ stall. Nitrided.
Xtreme Energy NIT 224/230 Hydraulic Flat Cam for Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Xtreme Energy
Usage - Street/Strip
Cam Type - Hydraulic Flat Tappet
Grind Number - XE268H
Basic Operating RPM Range - 1,600-5,800 R3
Intake Duration at .050 Inch Lift - 224 DD
Exhaust Duration at .050 inch Lift - 230 DD
Advertised Intake Duration - 268 DD
Advertised Exhaust Duration - 280 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.515 IN
Exhaust Valve Lift - 0.52 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Nitrided Cast Iron
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type - Hydraulic Flat Tappet
Title - Xtreme Energy NIT 224/230 Hydraulic Flat Cam for Chevrolet Big Block 396-454
Amazon ASIN - B002EE6JW8
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
