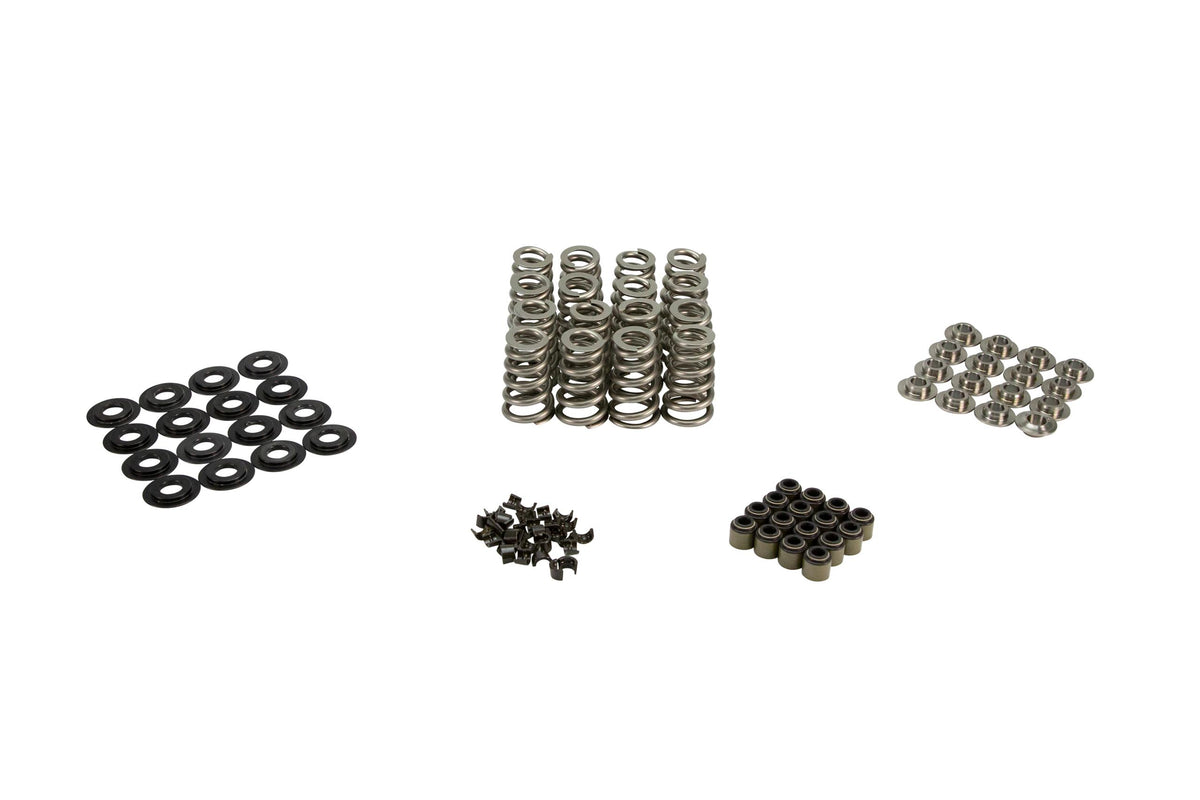

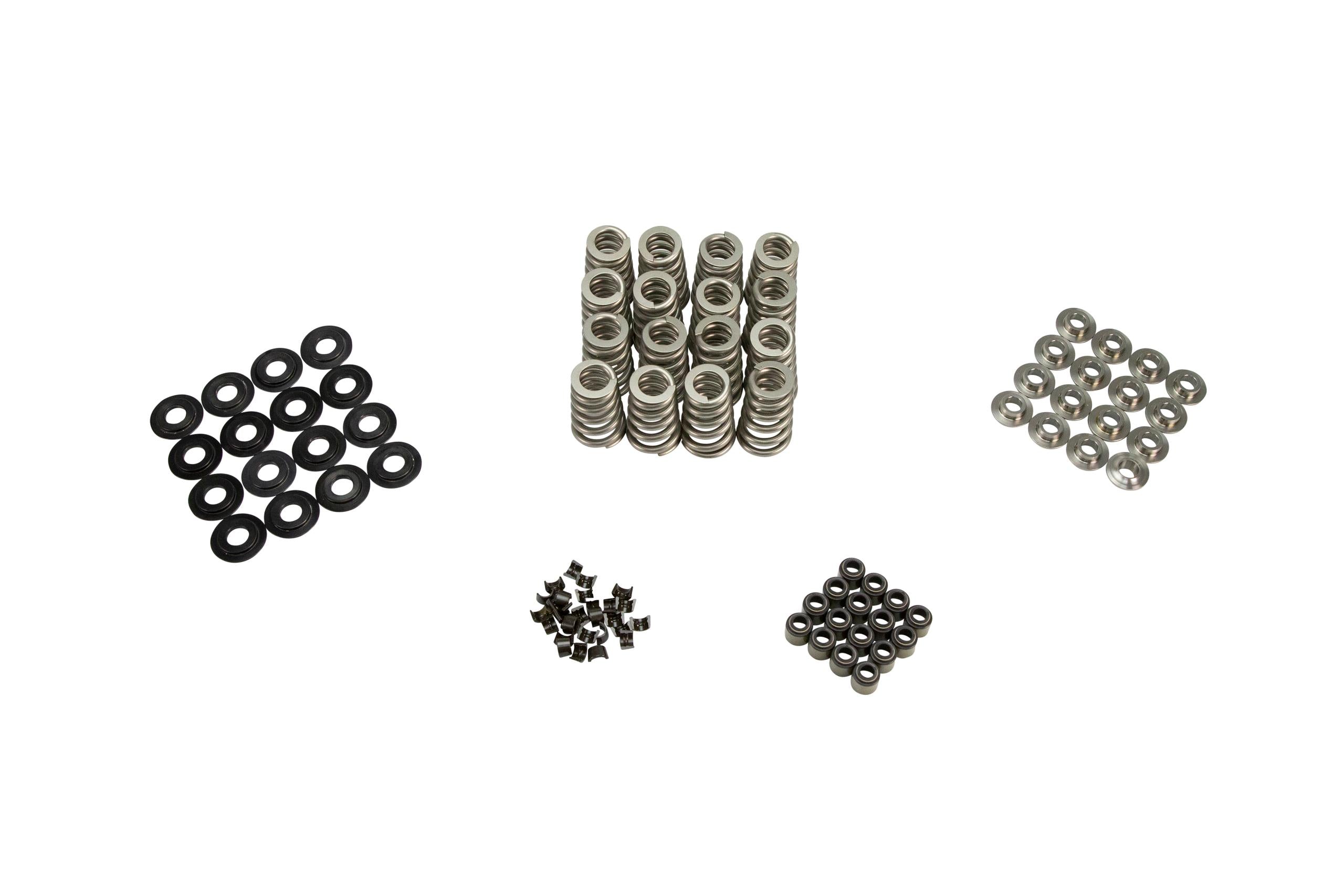

Comp Cams Conical Valve Spring Kit for GM L83/L86/LT1/LS7 w/ Titanium Retainers - 7230TI-KIT
Conical Valve Spring Kit for GM L83/L86/LT1/LS7 w/ Titanium Retainers
PRODUCT NOTES:
Max Lift - 0.675 IN
Includes Shims? - No
Spring Style - Conical
Valve Spring Series - Conical
Damper - No
Retainer Material - Titanium
Includes Retainers? - Yes
Spring Seat Type - Steel
Included Seats - 4680-16
Includes Seats? - Yes
Spring Rate - 518.5
Number of Springs - 1
Open Load - 495 LB
Seat Pressure - 145 LB
Installed Height - 1.9 IN
Coil Bind Height - 1.175 IN
ID Small End - 0.661 IN
ID Big End - 0.932 IN
Small End Outside Diameter - 1.061 IN
Big End Outside Diameter - 1.332 IN
Free Length - 2.193 IN
Title - Conical Valve Spring Kit for GM L83/L86/LT1/LS7 w/ Titanium Retainers
