Comp Cams Conical Valve Spring Kit for GM L83/L86/LT1/LS7 w/ Tool Steel Retainers - 7230TS-KIT

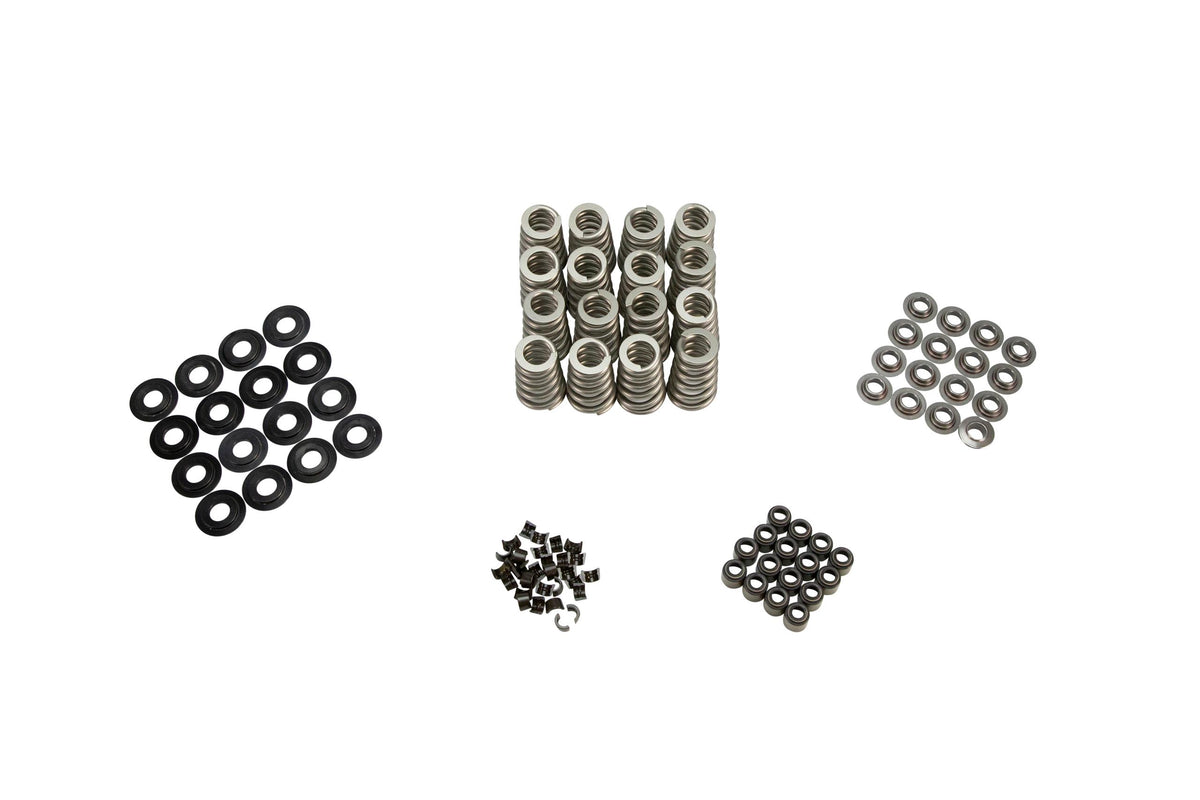

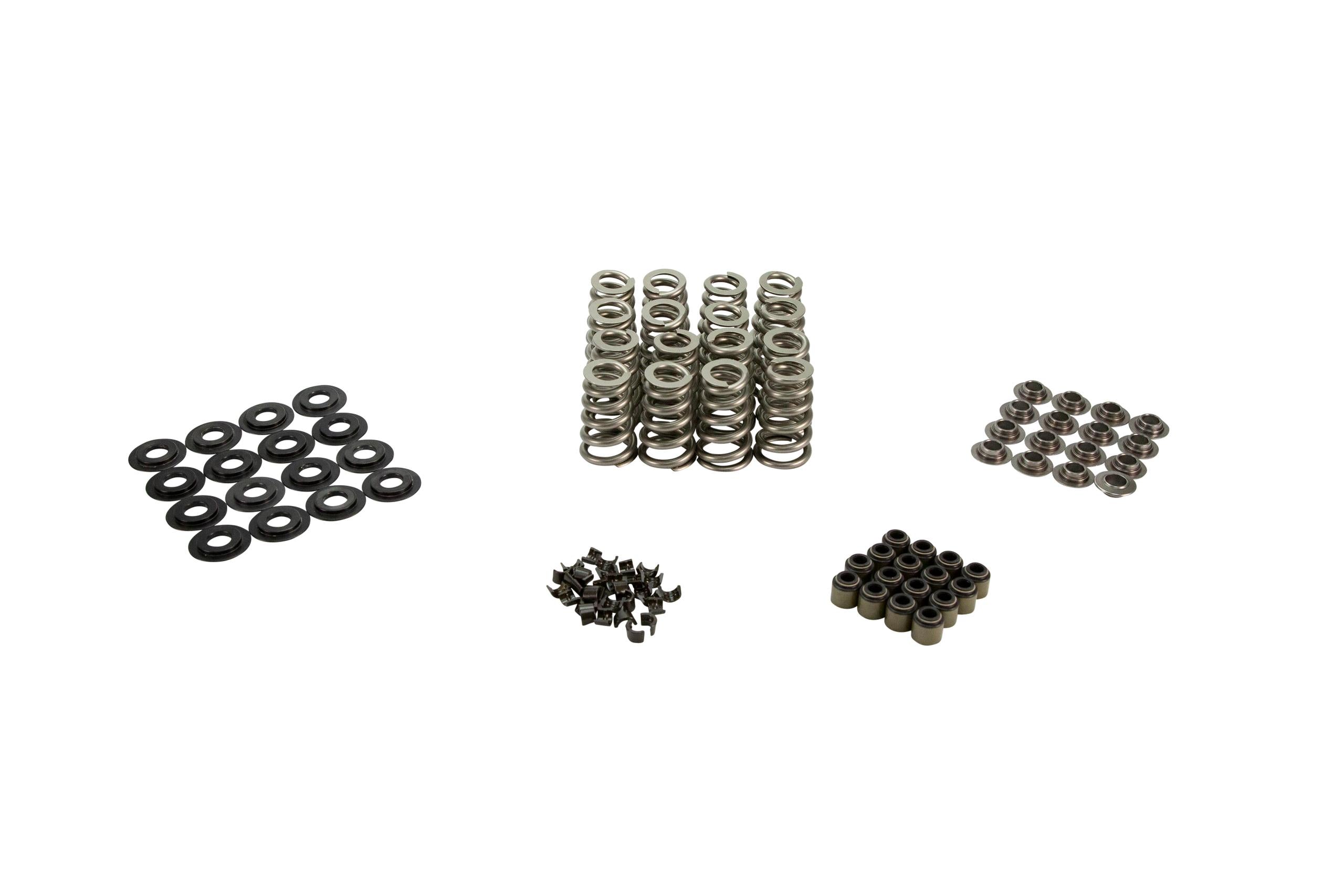

Conical Valve Spring Kit for GM L83/L86/LT1/LS7 w/ Tool Steel Retainers
PRODUCT NOTES:
Number of Springs - 2
Includes Seats? - Yes
Free Length - 2.193 IN
Spring Style - Conical
Valve Spring Series - Conical
Damper - No
Retainer Material - Tool Steel
Includes Retainers? - Yes
Spring Seat Type - Steel
Included Seats - 4680-16
Includes Shims? - No
Big End Outside Diameter - 1.332 IN
Spring Rate - 518.5
Open Load - 495 LB
Seat Pressure - 145 LB
Installed Height - 1.9 IN
Coil Bind Height - 1.175 IN
ID Small End - 0.661 IN
ID Big End - 0.932 IN
Small End Outside Diameter - 1.061 IN
Max Lift - 0.675 IN
Title - Conical Valve Spring Kit for GM L83/L86/LT1/LS7 w/ Tool Steel Retainers
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lethal Performance is proud to offer the entire line of Comp Cams products!
For more than 35 years, the COMP Cams® mission has never changed: to produce the highest-performing products possible, provide customers with superior service, and to lead the industry in technological development. While the COMP Performance Group™ has grown to multiple companies and hundreds of employees, we still retain the competitive spirit and desire to be the very best that has positioned COMP Cams® as the absolute leader in valve train components.
With COMP Cams®, there is no compromise - you're in first place.
