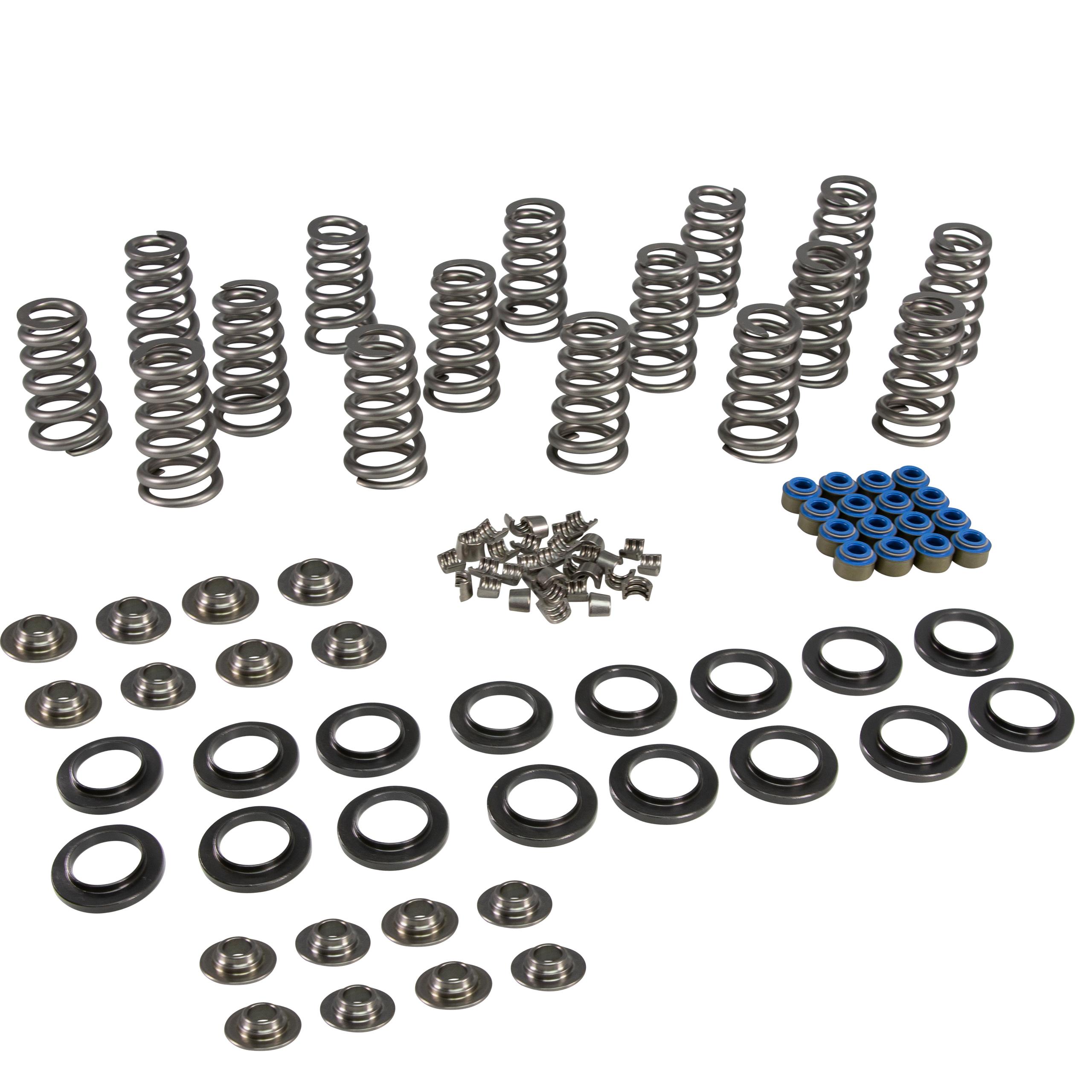

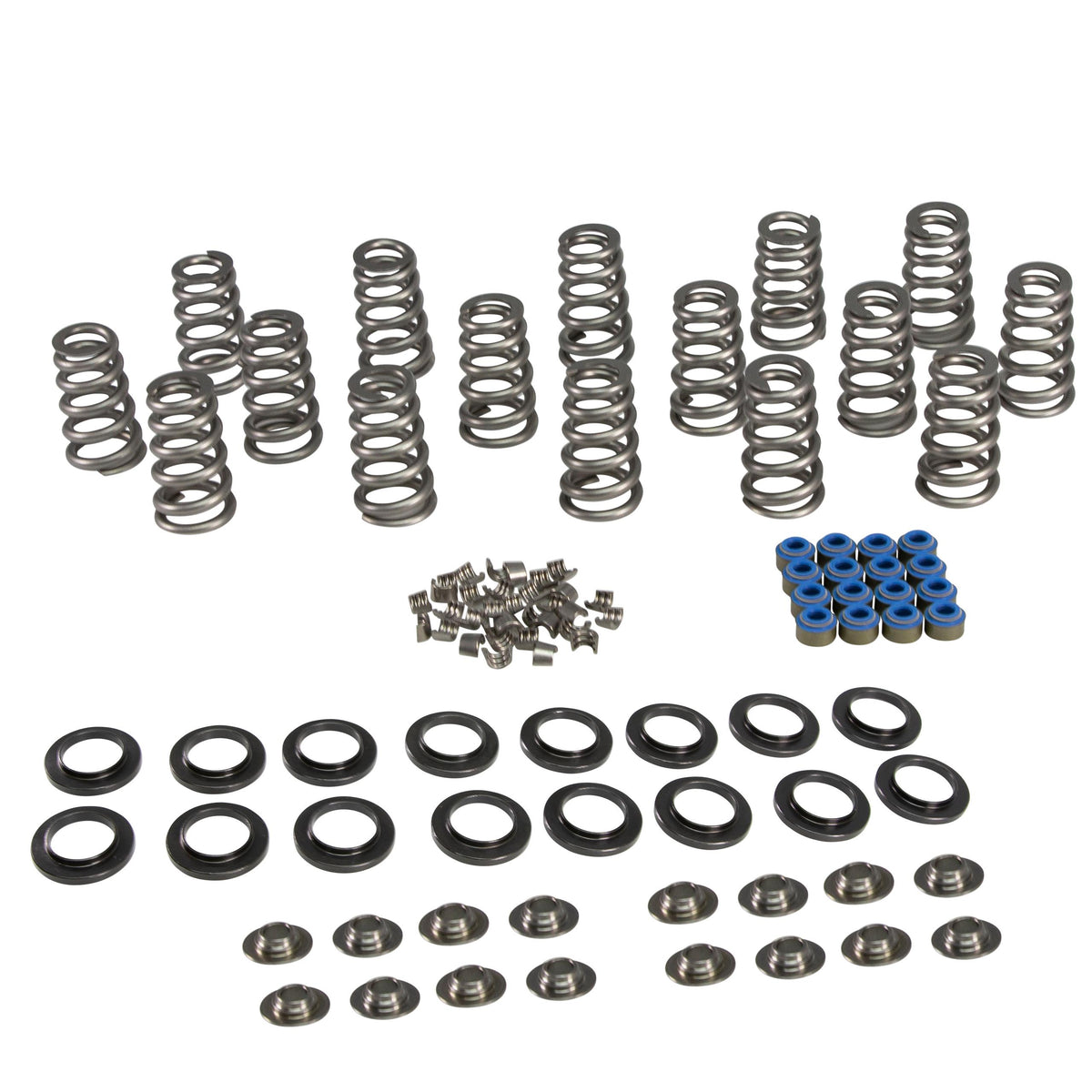

Comp Cams .660" Lift Conical Spring Kit w/ Ti Retainers for '09-'18 Dodge 5.7/6.2/6.4 HEMI - 7230TC-KIT
.660" Lift Conical Spring Kit w/ Ti Retainers for '09-'18 Dodge 5.7/6.2/6.4 HEMI
PRODUCT NOTES:
Title - .660" Lift Conical Spring Kit w/ Ti Retainers for '09-'18 Dodge 5.7/6.2/6.4 HEMI
Includes Shims? - NO
Free Length - 2.179 IN
Spring Style - CONICAL
Valve Spring Series - CONICAL
Damper - NA
Retainer Material - TITANIUM
Includes Retainers? - YES
Spring Seat Type - CHROMOLY
Included Seats - 4678
Includes Seats? - YES
Spring Rate - 519
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Open Load - 484 LB
Seat Pressure - 145 LB
Installed Height - 1.900 IN
Coil Bind Height - 1.175 IN
ID Small End - 0.660 IN
ID Big End - 0.932 IN
OD Small End - 1.0600 IN
OD Big End - 1.332 IN
Number of Springs - 16
Max Lift - 0.660 IN
