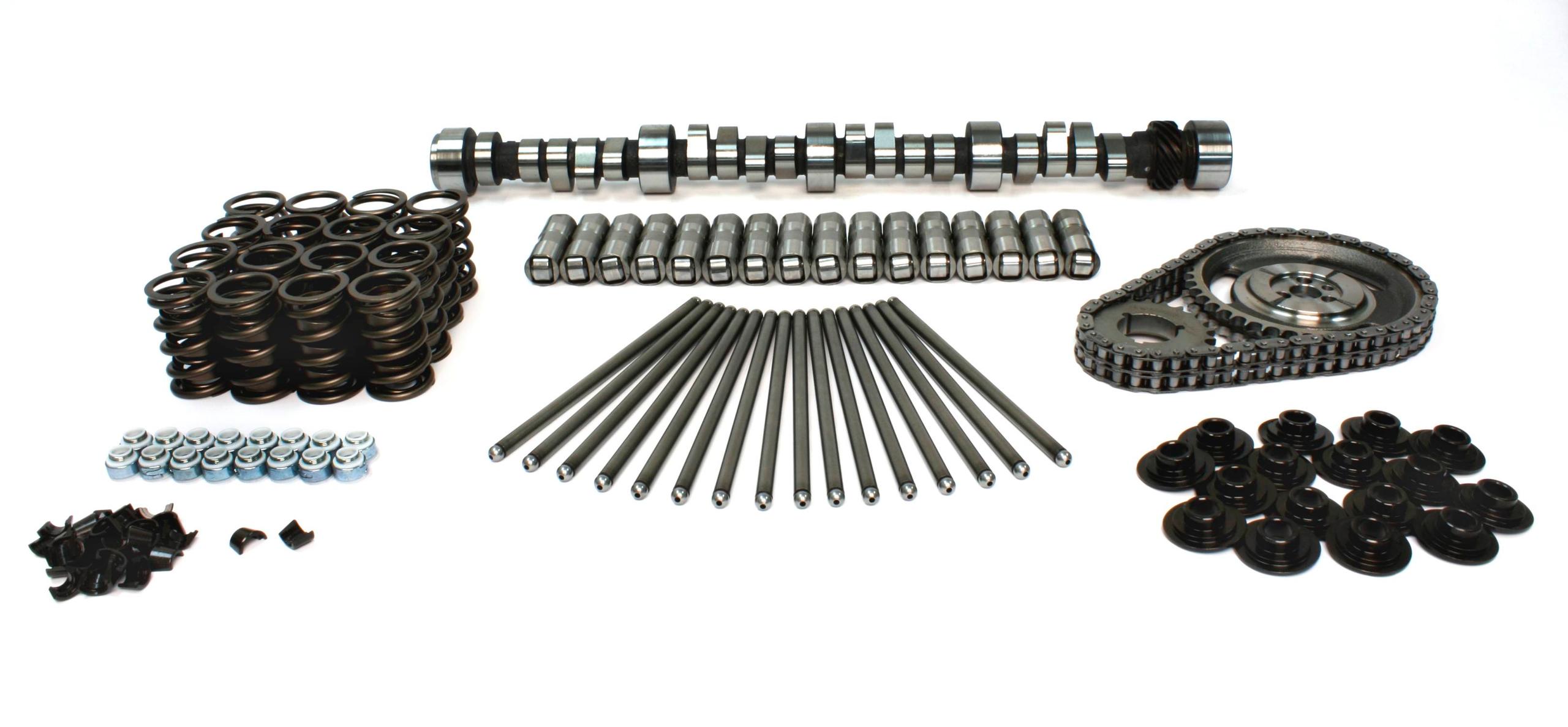

Comp Cams Xtreme 4x4 220/224 Hydraulic Roller K-Kit for OE Roller SBC - K08-413-8
Good mid-range power, needs headers, 3.55-4.10 gears, 2000 stall. Noticeable idle.
Xtreme 4x4 220/224 Hydraulic Roller K-Kit for OE Roller SBC
PRODUCT NOTES:
Kit Type - K-Kit - Complete Kit
Camshaft Series - Xtreme 4x4
Usage - Street/Performance
Cam Type - Hydraulic Roller
Basic Operating RPM Range - 1,500-5,200 R3
Intake Duration at .050 Inch Lift - 220 DD
Exhaust Duration at .050 inch Lift - 224 DD
Advertised Intake Duration - 270 DD
Advertised Exhaust Duration - 274 DD
Lobe Separation - 111 DD
Intake Valve Lift - 0.474 IN
Exhaust Valve Lift - 0.474 IN
Lifters Included - Yes
Valve Springs Included - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Austempered Ductile Iron
Lifter Type - Hydraulic Roller
Timing Chain and Gears Included - Yes
Valve Stem Seals Included - Yes
Gaskets Included - No
Title - Xtreme 4x4 220/224 Hydraulic Roller K-Kit for OE Roller SBC
Engine Family - Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Amazon ASIN - B001R99QE4
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
