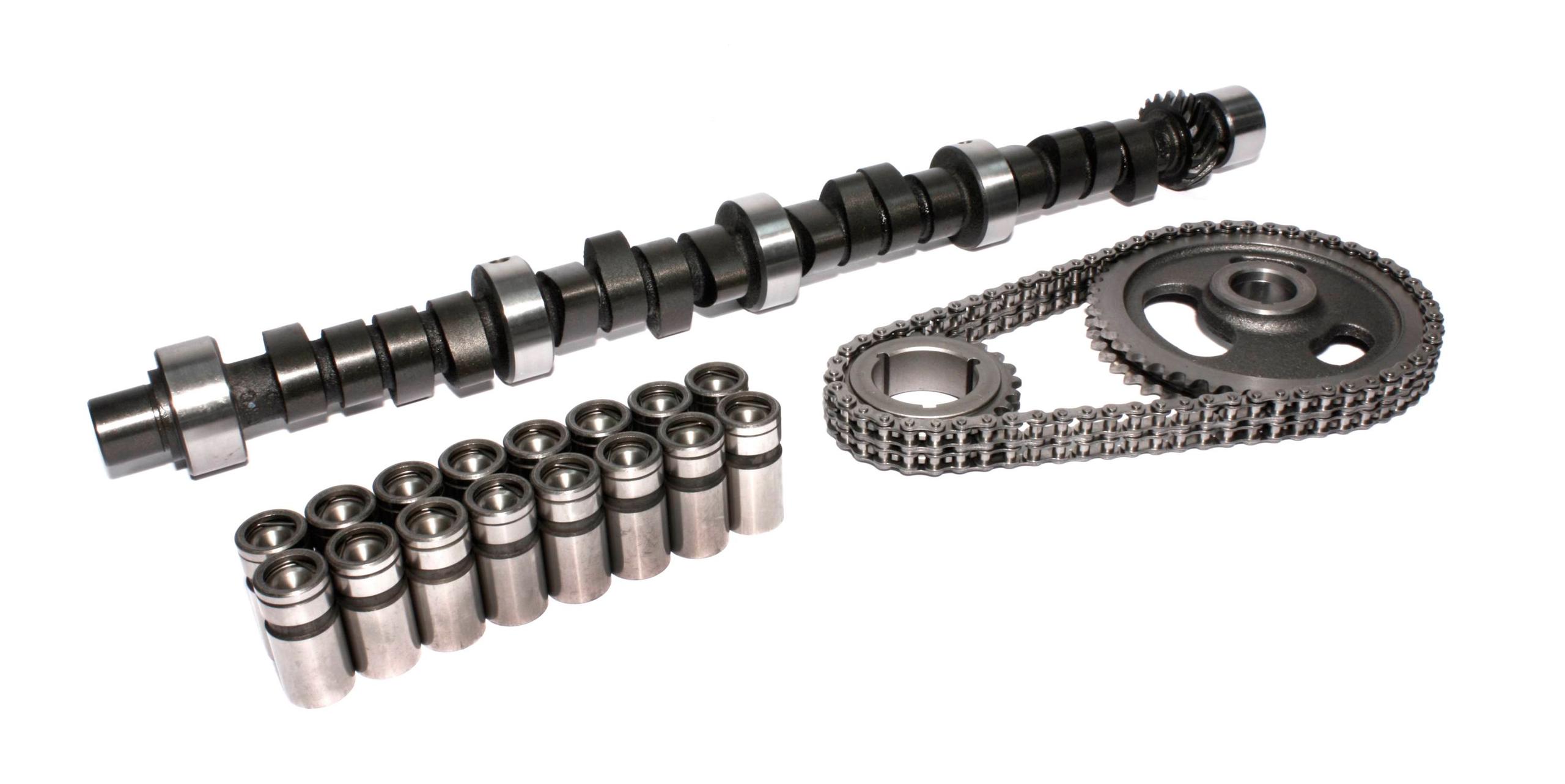

Comp Cams Magnum 236/236 Solid Flat Cam K-Kit for Chrysler 273-360 - SK20-247-4
340-360 street machine/bracket race with 2500 stall, 9.5:1-10.5:1 compression and 3.91 to 4.10 gear. Aftermarket manifold & 650-750 CFM carb.
Magnum 236/236 Solid Flat Cam K-Kit for Chrysler 273-360
PRODUCT NOTES:
Kit Type - SK-Kit - Small Kit
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Solid Flat Tappet
Basic Operating RPM Range - 3,000-6,000 R3
Intake Duration at .050 Inch Lift - 236 DD
Exhaust Duration at .050 inch Lift - 236 DD
Advertised Intake Duration - 282 DD
Advertised Exhaust Duration - 282 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.495 IN
Exhaust Valve Lift - 0.495 IN
Lifters Included - Yes
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Cast Iron
Lifter Type - Solid Flat Tappet
Timing Chain and Gears Included - Yes
Valve Stem Seals Included - No
Retainers Included - No
Locks Included - No
Pushrods Included - No
Gaskets Included - No
Title - Magnum 236/236 Solid Flat Cam K-Kit for Chrysler 273-360
K-Kit Upgrade - K20-247-4
Engine Family - Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Amazon ASIN - B001R9HAYM
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
