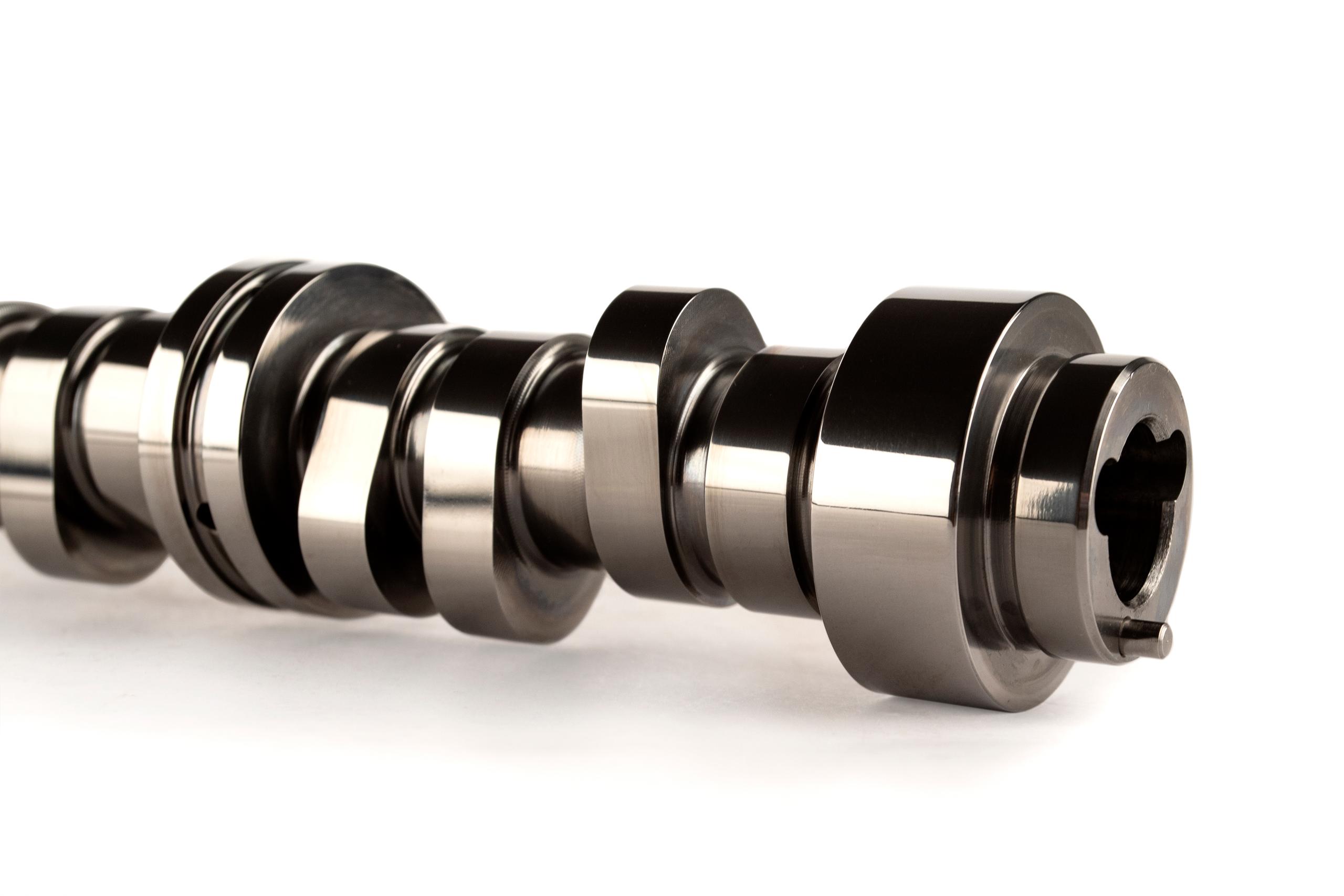

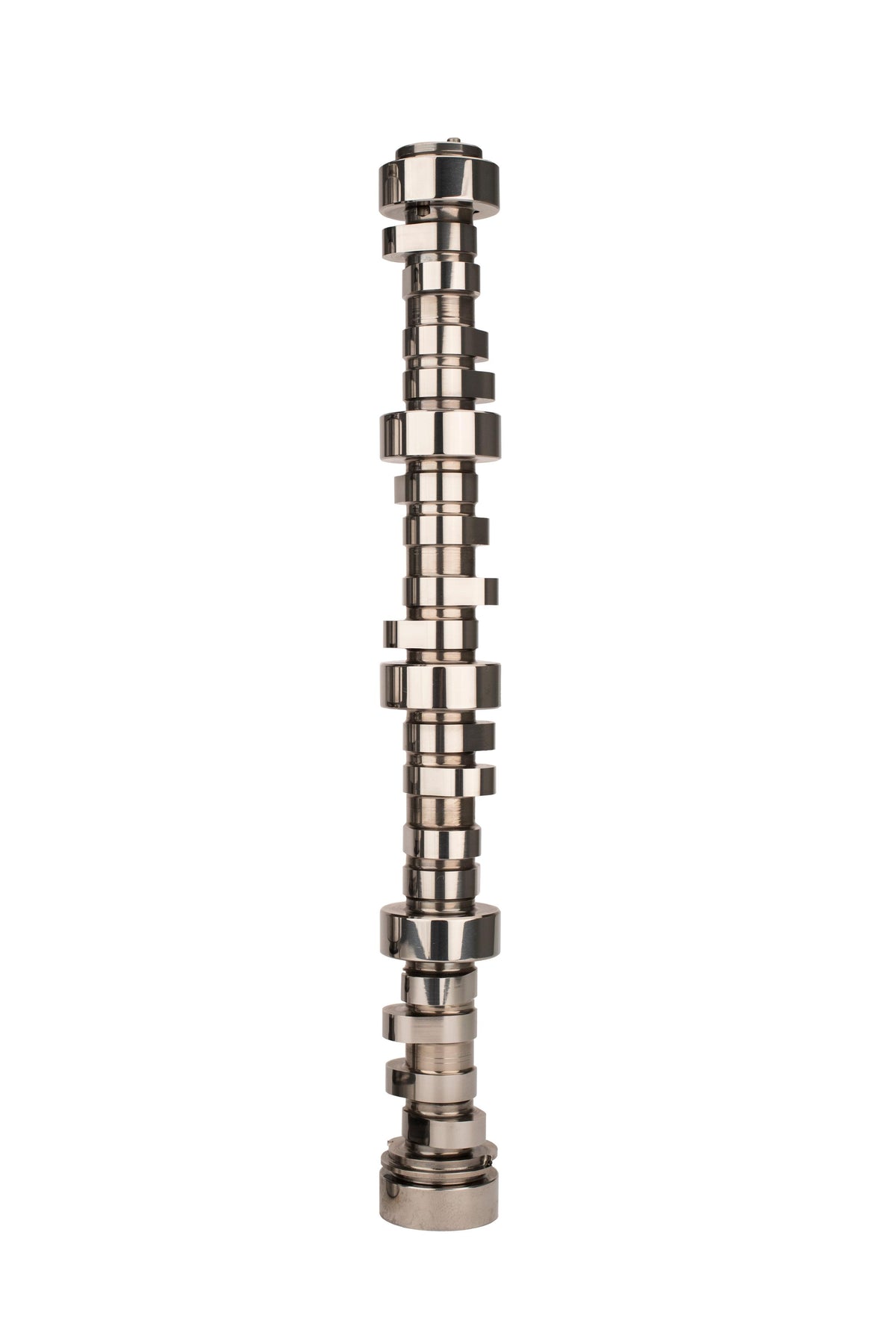

Comp Cams XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS GEN IV - 689-421-13
Excellent responsiveness and mid-range power w/ across the board gains. Best choice for heavy vehicles w/ stock gears.
XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS GEN IV
PRODUCT NOTES:
Camshaft Series - XFI AFM
Grind Number - 266PIIHR14
Lobe Separation - 114 DD
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Billet Steel
Usage - Street/Performance
Title - XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS GEN IV
Intake Valve Lift Non-Deactivation Cylinders - 0.5 IN
Intake Valve Lift Deactivation Cylinders - 0.5 IN
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders - 214 DD
Intake Duration at .050 Inch Lift Deactivation Cylinders - 216 DD
Advertised Exhaust Duration Deactivation Cylinders - 290 DD
Exhaust Valve Lift Non-Deactivation Cylinders - 0.5 IN
Advertised Exhaust Duration Non-Deactivation Cylinders - 278 DD
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders - 226 DD
Exhaust Duration at .050 inch Lift Deactivation Cylinders - 228 DD
Advertised Intake Duration Non-Deactivation Cylinders - 266 DD
Advertised Intake Duration Deactivation Cylinders - 278 DD
Exhaust Valve Lift Deactivation Cylinders - 0.5 IN
Engine Family - GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
C.A.R.B. E.O. - N/A
Amazon ASIN - B0066SUNFW
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
Lethal Performance is proud to offer the entire line of Comp Cams products!
For more than 35 years, the COMP Cams® mission has never changed: to produce the highest-performing products possible, provide customers with superior service, and to lead the industry in technological development. While the COMP Performance Group™ has grown to multiple companies and hundreds of employees, we still retain the competitive spirit and desire to be the very best that has positioned COMP Cams® as the absolute leader in valve train components.
With COMP Cams®, there is no compromise - you're in first place.
