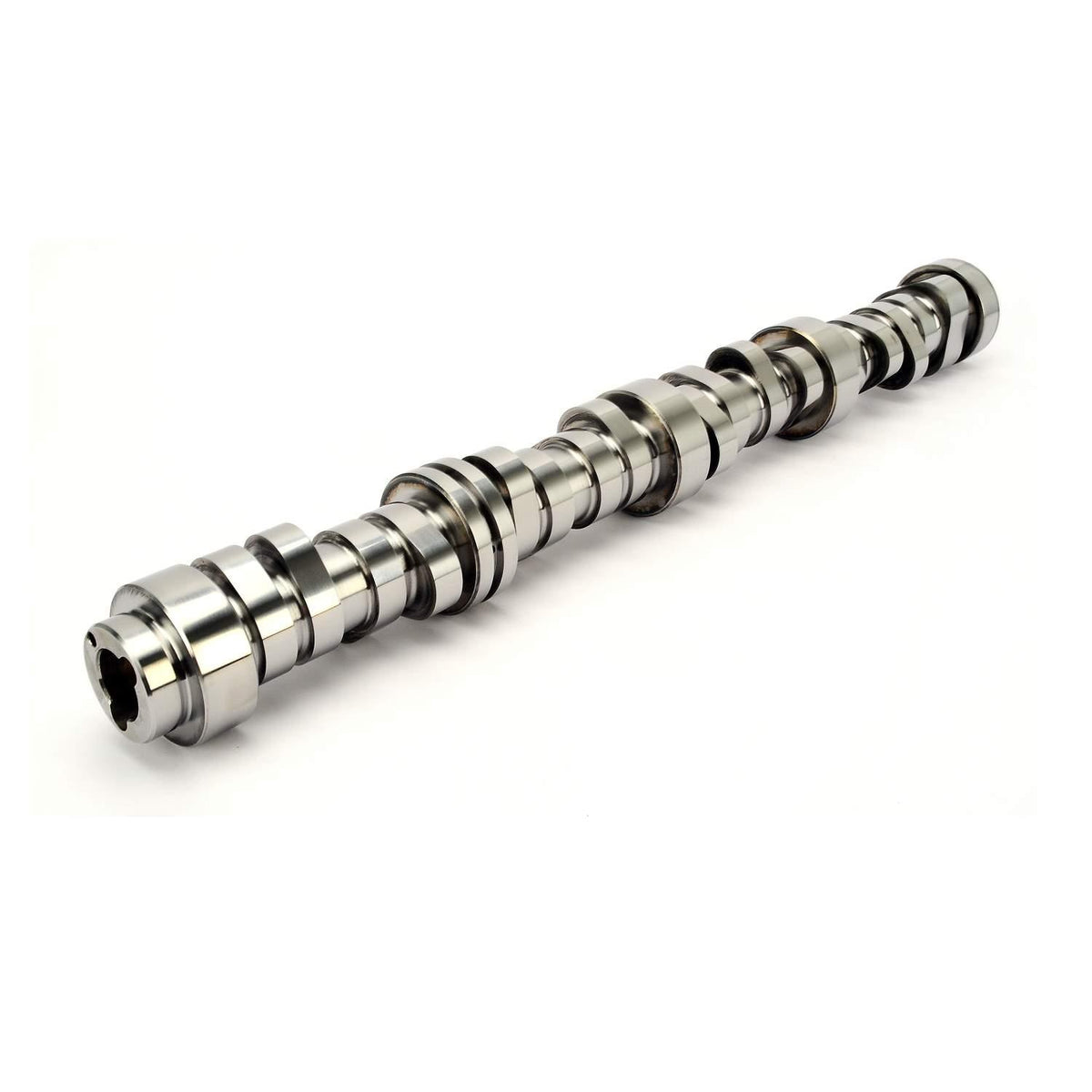

Comp Cams XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LT1 GEN V - 624-524-13
Great all around performance and best choice for mildly modified LT1 applications with AFM enabled.
XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LT1 GEN V
PRODUCT NOTES:
Camshaft Series - XFI AFM
Usage - Street/Performance
Cam Type - Hydraulic Roller
Grind Number - 270PIIHR17
Basic Operating RPM Range - 1,800-6,900 R3
Intake Duration at .050 Inch Lift - 218 DD
Exhaust Duration at .050 inch Lift - 230 DD
Advertised Intake Duration - 270 DD
Advertised Exhaust Duration - 282 DD
Lobe Separation - 117 DD
Intake Valve Lift - 0.572 IN
Exhaust Valve Lift - 0.529 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Material - Billet Steel
Engine Family - GM LT1 GEN V w/ VVT and w/ AFM 8 Cylinder (2014+)
Lifter Type - Hydraulic Roller
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Title - XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LT1 GEN V
Amazon ASIN - B00N6LRB8E
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
Lethal Performance is proud to offer the entire line of Comp Cams products!
For more than 35 years, the COMP Cams® mission has never changed: to produce the highest-performing products possible, provide customers with superior service, and to lead the industry in technological development. While the COMP Performance Group™ has grown to multiple companies and hundreds of employees, we still retain the competitive spirit and desire to be the very best that has positioned COMP Cams® as the absolute leader in valve train components.
With COMP Cams®, there is no compromise - you're in first place.
