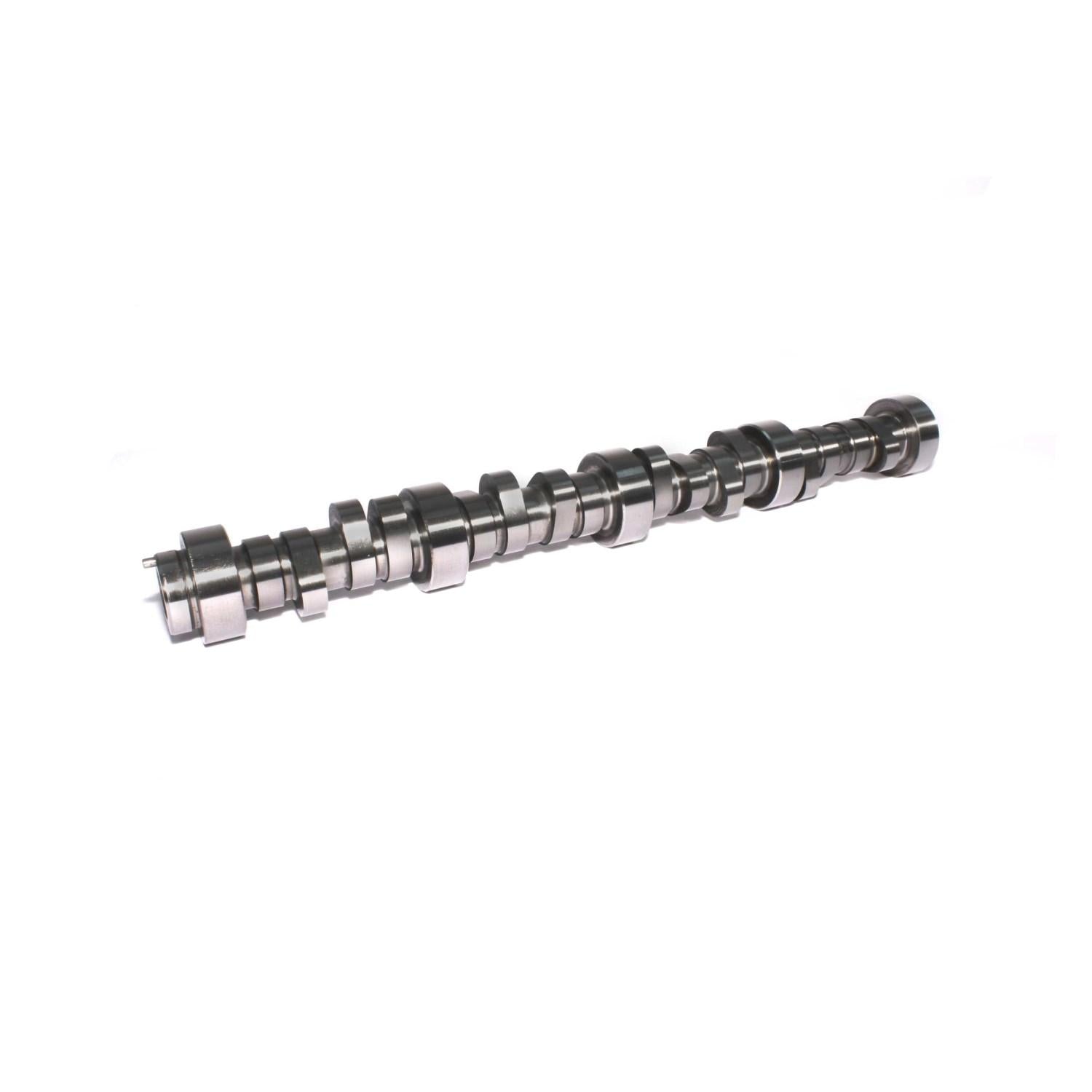

Comp Cams XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV - 646-431-13
Great all around torque for trucks and other heavy applications; across the board improvements power over stock AFM cams.
XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV
PRODUCT NOTES:
Camshaft Series - XFI AFM
Cam Type - Hydraulic Roller
Grind Number - 262AFM15
Basic Operating RPM Range - 1,600-6,300 R3
Lobe Separation - 115 DD
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Billet Steel
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Engine Family - GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014)
Lifter Type - Hydraulic Roller
Title - XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam for GM GEN IV w/ AFM w/o VVT
Engine RPO Compatibility - LS4, L76, L77, LH6, LY5, LMG, LFA
Advertised Intake Duration Deactivation Cylinders - 275 DD
Advertised Exhaust Duration Deactivation Cylinders - 286 DD
Intake Duration at .050" Deactivation Cylinders - 212 DD
Exhaust Duration at .050" Deactivation Cylinders - 224 DD
Advertised Intake Duration Non-Deactivation Cylinders - 262 DD
Advertised Exhaust Duration Non-Deactivation Cylinders - 274 DD
Intake Duration at .050" Non-Deactivation Cylinders - 210 DD
Exhaust Duration at .050" Non-Deactivation Cylinders - 222 DD
Intake Valve Lift Deactivation Cylinders - 0.5 IN
Exhaust Valve Lift Deactivation Cylinders - 0.5 IN
Intake Valve Lift Non-Deactivation Cylinders - 0.5 IN
Exhaust Valve Lift Non-Deactivation Cylinders - 0.5 IN
AFM Delete Camshaft Core Prefix - 146-
Amazon ASIN - B0066ST5MO
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
