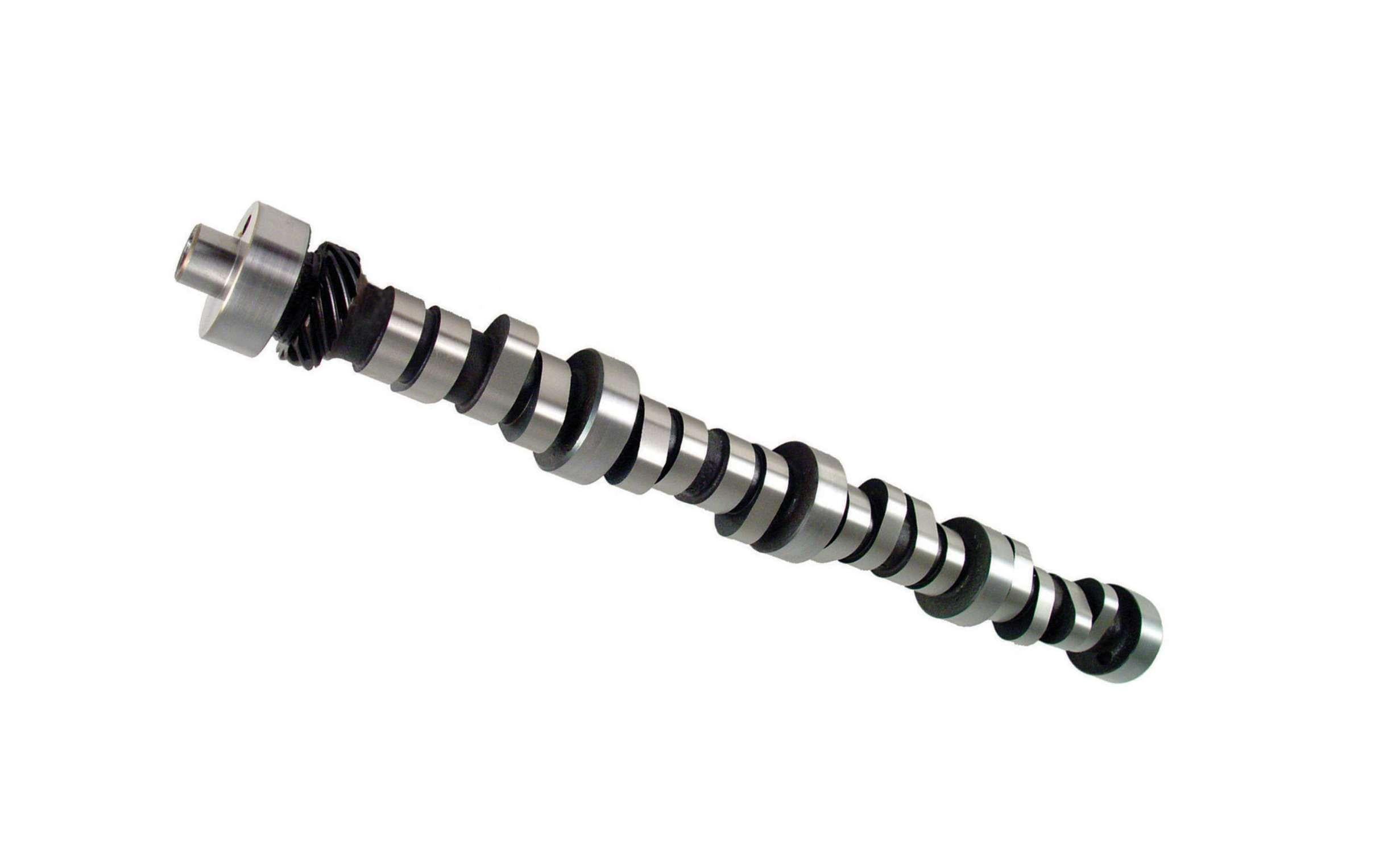

Comp Cams Magnum 230/230 Hydraulic Roller Cam for Ford 5.0L - 35-450-8
Street/strip applications. 5 speed or 2500+ stall, 4.10 or lower gears with higher compression. Aftermarket intake and exhaust.
Magnum 230/230 Hydraulic Roller Cam for Ford 5.0L
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Hydraulic Roller
Grind Number - 286HR
Basic Operating RPM Range - 3,000-6500 R3
Intake Duration at .050 Inch Lift - 230 DD
Exhaust Duration at .050 inch Lift - 230 DD
Advertised Intake Duration - 286 DD
Advertised Exhaust Duration - 286 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.598 IN
Exhaust Valve Lift - 0.598 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Austempered Ductile Iron
Engine Family - Ford 5.0L (1985-2002)
Cam and Lifter Kit Upgrade - CL35-450-8
K-Kit Upgrade - K35-450-8
Lifter Type - Hydraulic Roller
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK35-450-8
Title - Magnum 230/230 Hydraulic Roller Cam for Ford 5.0L
Amazon ASIN - B001O064AK
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
