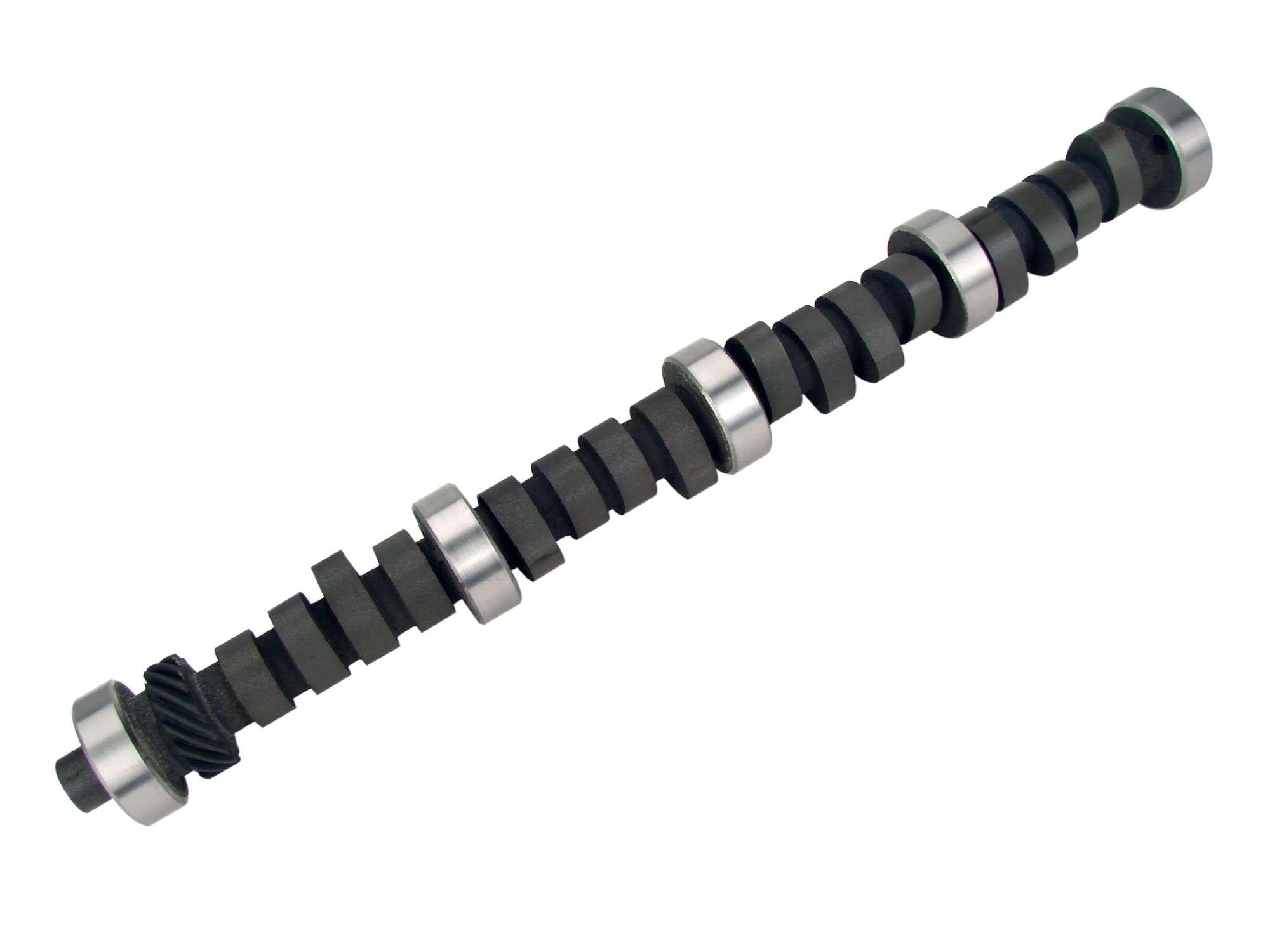

Comp Cams Magnum/Drag Race 253/253 Hydraulic Flat Cam for Ford 221-302 - 31-331-4
Limited street use or bracket race. 11:1 compression, intake and exhaust. Radical idle. Good for 4 speed or 3500+ stall, 10.5:1+ compression.
Magnum/Drag Race 253/253 Hydraulic Flat Cam for Ford 221-302
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Hydraulic Flat Tappet
Grind Number - 305AH-10
Basic Operating RPM Range - 3,000-7000 R3
Intake Duration at .050 Inch Lift - 253 DD
Exhaust Duration at .050 inch Lift - 253 DD
Advertised Intake Duration - 305 DD
Advertised Exhaust Duration - 305 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.54 IN
Exhaust Valve Lift - 0.54 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Cast Iron
Engine Family - Ford 221, 260, 289, 302 c.i. 8 Cylinder (1963-1995)
Cam and Lifter Kit Upgrade - CL31-331-4
K-Kit Upgrade - K31-331-4
Lifter Type - Hydraulic Flat Tappet
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK31-331-4
Title - Magnum/Drag Race 253/253 Hydraulic Flat Cam for Ford 221-302
Amazon ASIN - B000V9HYJU
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
