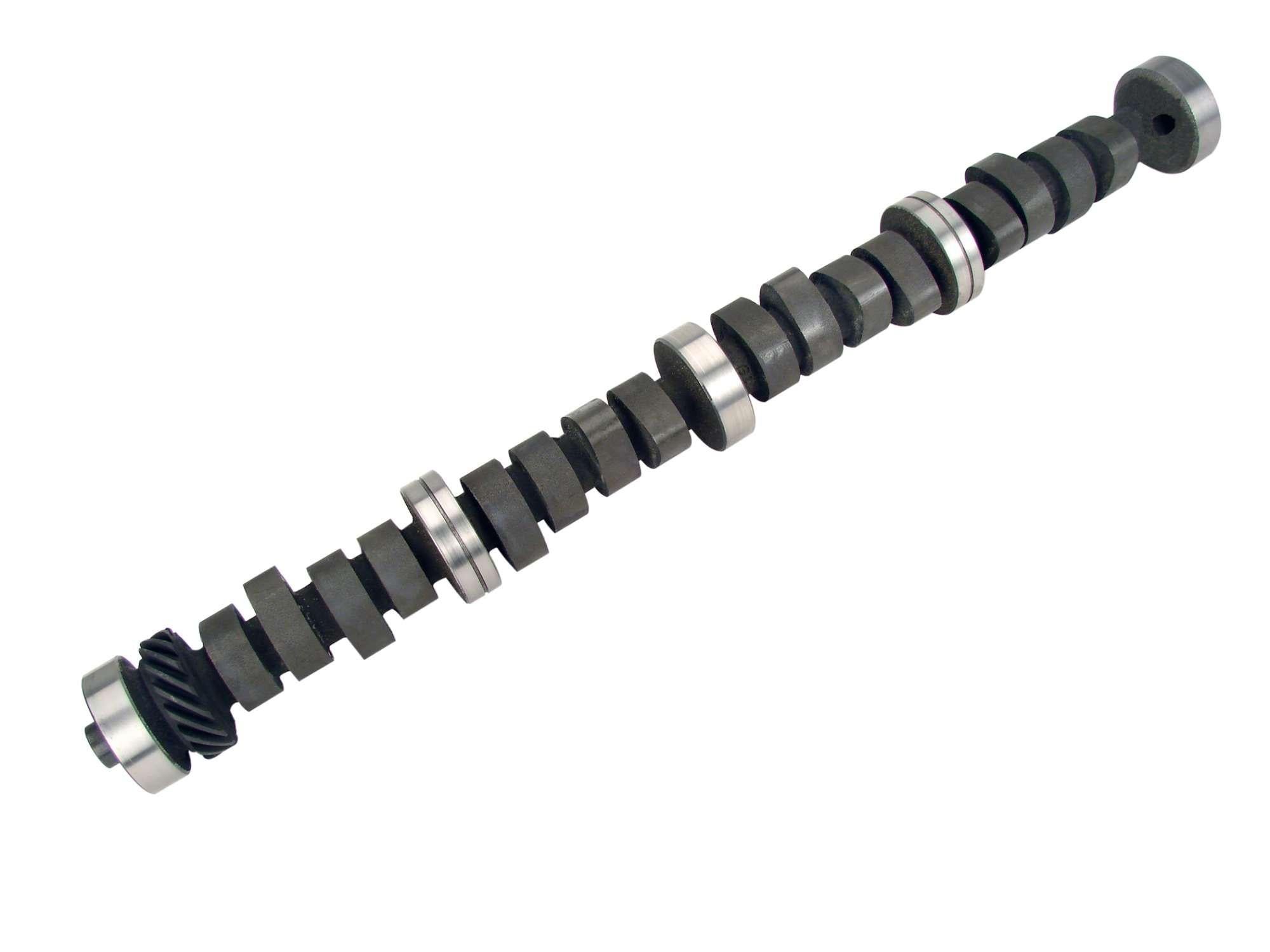

Comp Cams Magnum 224/224 Hydraulic Flat Cam for Ford 352-428 - 33-226-4
Good cam for stock and even better for 2000 stall converter in street machine, 9:1 compression, mild rough idle.
Magnum 224/224 Hydraulic Flat Cam for Ford 352-428
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Hydraulic Flat Tappet
Grind Number - 270H
Basic Operating RPM Range - 1,800-5,800 R3
Intake Duration at .050 Inch Lift - 224 DD
Exhaust Duration at .050 inch Lift - 224 DD
Advertised Intake Duration - 270 DD
Advertised Exhaust Duration - 270 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.519 IN
Exhaust Valve Lift - 0.519 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Cast Iron
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Title - Magnum 224/224 Hydraulic Flat Cam for Ford 352-428
SK-Kit Upgrade - SK33-226-4
Lifter Type - Hydraulic Flat Tappet
Cam and Lifter Kit Upgrade - CL33-226-4
Engine Family - Ford 352-428 c.i. 8 Cylinder (1963-1977)
K-Kit Upgrade - K33-226-4
Amazon ASIN - B000CESFNI
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
Lethal Performance is proud to offer the entire line of Comp Cams products!
For more than 35 years, the COMP Cams® mission has never changed: to produce the highest-performing products possible, provide customers with superior service, and to lead the industry in technological development. While the COMP Performance Group™ has grown to multiple companies and hundreds of employees, we still retain the competitive spirit and desire to be the very best that has positioned COMP Cams® as the absolute leader in valve train components.
With COMP Cams®, there is no compromise - you're in first place.
