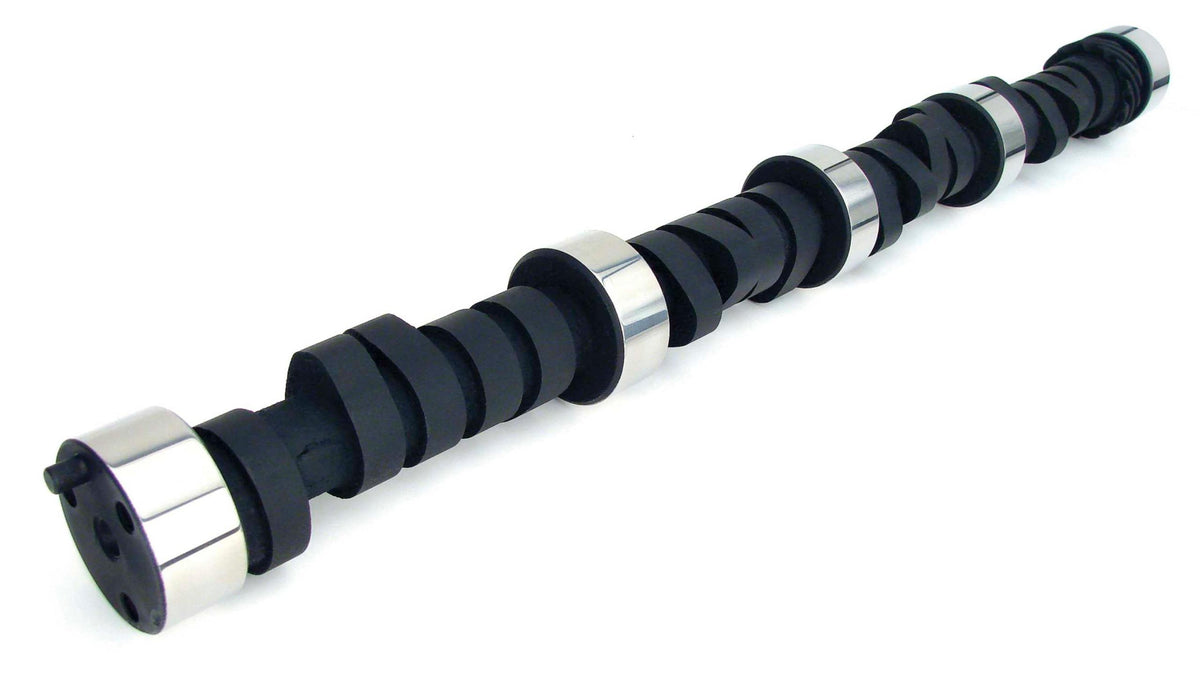

Comp Cams Xtreme Energy 224/230 Solid Flat Cam for Chevrolet Small Block - 12-675-4
Excellent response, good mid-range, noticeable idle.
Xtreme Energy 224/230 Solid Flat Cam for Chevrolet Small Block
PRODUCT NOTES:
Camshaft Series - Xtreme Energy
Usage - Street/Performance
Cam Type - Solid Flat Tappet
Grind Number - XS262S
Basic Operating RPM Range - 1,300-5,800 R3
Intake Duration at .050 Inch Lift - 224 DD
Exhaust Duration at .050 inch Lift - 230 DD
Advertised Intake Duration - 262 DD
Advertised Exhaust Duration - 268 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.477 IN
Exhaust Valve Lift - 0.488 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
Engine Family - Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Cam and Lifter Kit Upgrade - CL12-675-4
K-Kit Upgrade - K12-675-4
Lifter Type - Solid Flat Tappet
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK12-675-4
Title - Xtreme Energy 224/230 Solid Flat Cam for Chevrolet Small Block
Amazon ASIN - B001O07C4M
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
