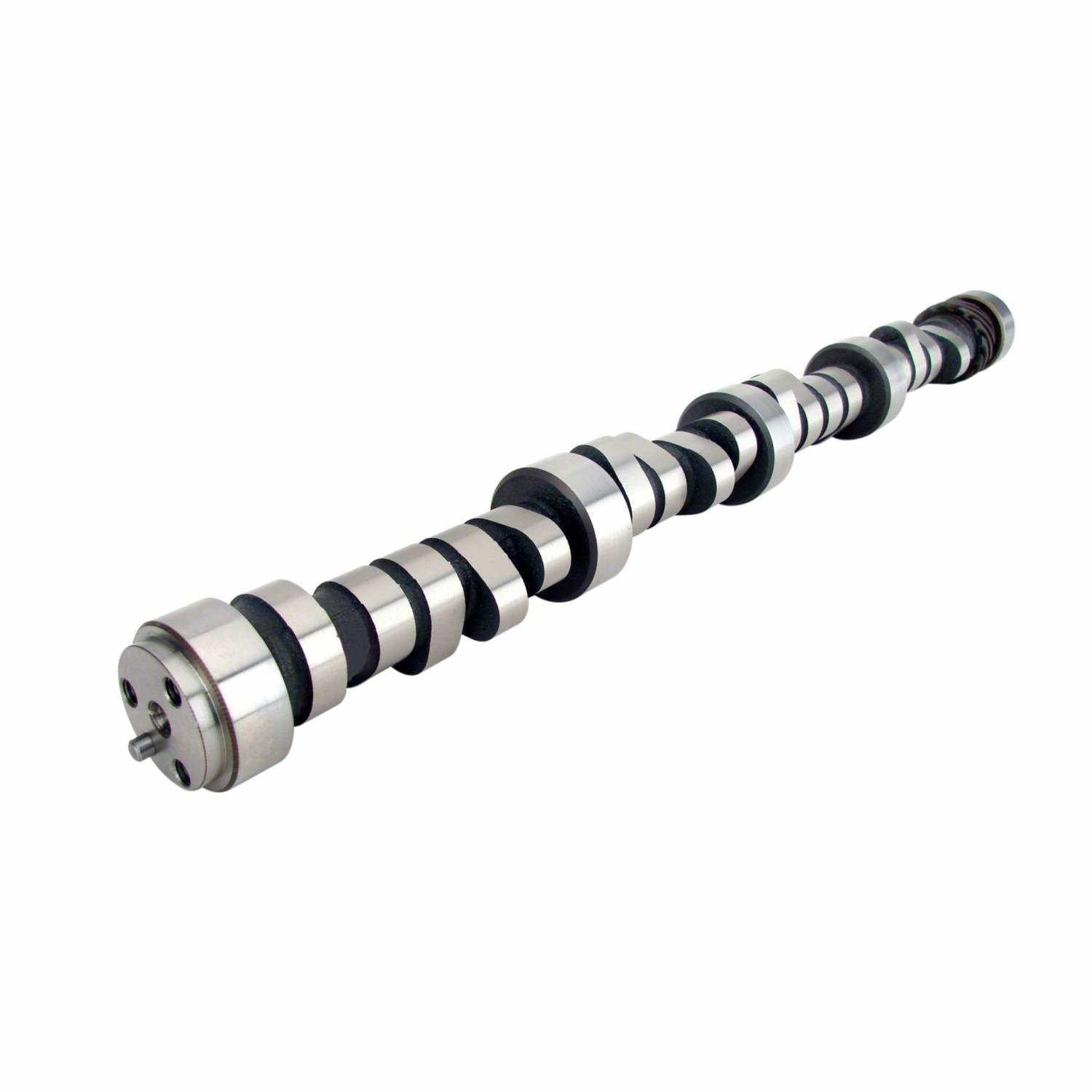

Comp Cams Xtreme 4x4 220/224 Hydraulic Roller Cam for OE Roller SBC - 08-413-8
Good mid-range power, needs headers, 3.55-4.10 gears, 2000 stall. Noticeable idle.
Xtreme 4x4 220/224 Hydraulic Roller Cam for OE Roller SBC
PRODUCT NOTES:
Camshaft Series - Xtreme 4x4
Usage - Street/Performance
Cam Type - Hydraulic Roller
Grind Number - X4270HR
Basic Operating RPM Range - 1,500-5,200 R3
Intake Duration at .050 Inch Lift - 220 DD
Exhaust Duration at .050 inch Lift - 224 DD
Advertised Intake Duration - 270 DD
Advertised Exhaust Duration - 274 DD
Lobe Separation - 111 DD
Intake Valve Lift - 0.474 IN
Exhaust Valve Lift - 0.474 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Austempered Ductile Iron
Engine Family - Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998)
Cam and Lifter Kit Upgrade - CL08-413-8
K-Kit Upgrade - K08-413-8
Lifter Type - Hydraulic Roller
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK08-413-8
Title - Xtreme 4x4 220/224 Hydraulic Roller Cam for OE Roller SBC
Amazon ASIN - N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
