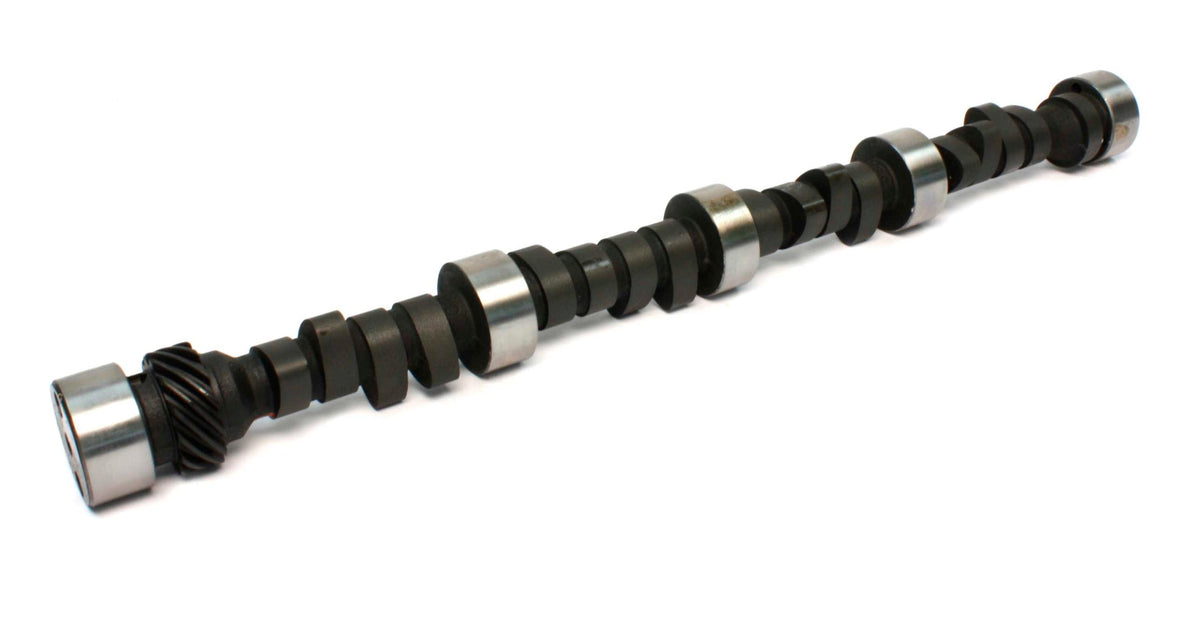

Comp Cams Drag Race 4/7 Swap 255/266 Solid Flat Cam for Chevrolet Small Block - 12-686-47
4000+ stall, 10.5:1 compression and up.
Drag Race 4/7 Swap 255/266 Solid Flat Cam for Chevrolet Small Block
PRODUCT NOTES:
Camshaft Series - Drag Race 4 and 7 Swap Firing Order
Usage - Strip
Cam Type - Solid Flat Tappet
Grind Number - 47S 290B-6
Basic Operating RPM Range - 4,000-7000 R3
Intake Duration at .050 Inch Lift - 255 DD
Exhaust Duration at .050 inch Lift - 266 DD
Advertised Intake Duration - 290 DD
Advertised Exhaust Duration - 304 DD
Lobe Separation - 106 DD
Intake Valve Lift - 0.54 IN
Exhaust Valve Lift - 0.534 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
Engine Family - Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type - Solid Flat Tappet
Title - Drag Race 4/7 Swap 255/266 Solid Flat Cam for Chevrolet Small Block
Amazon ASIN - B001G7CX1U
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
